Открытый узел

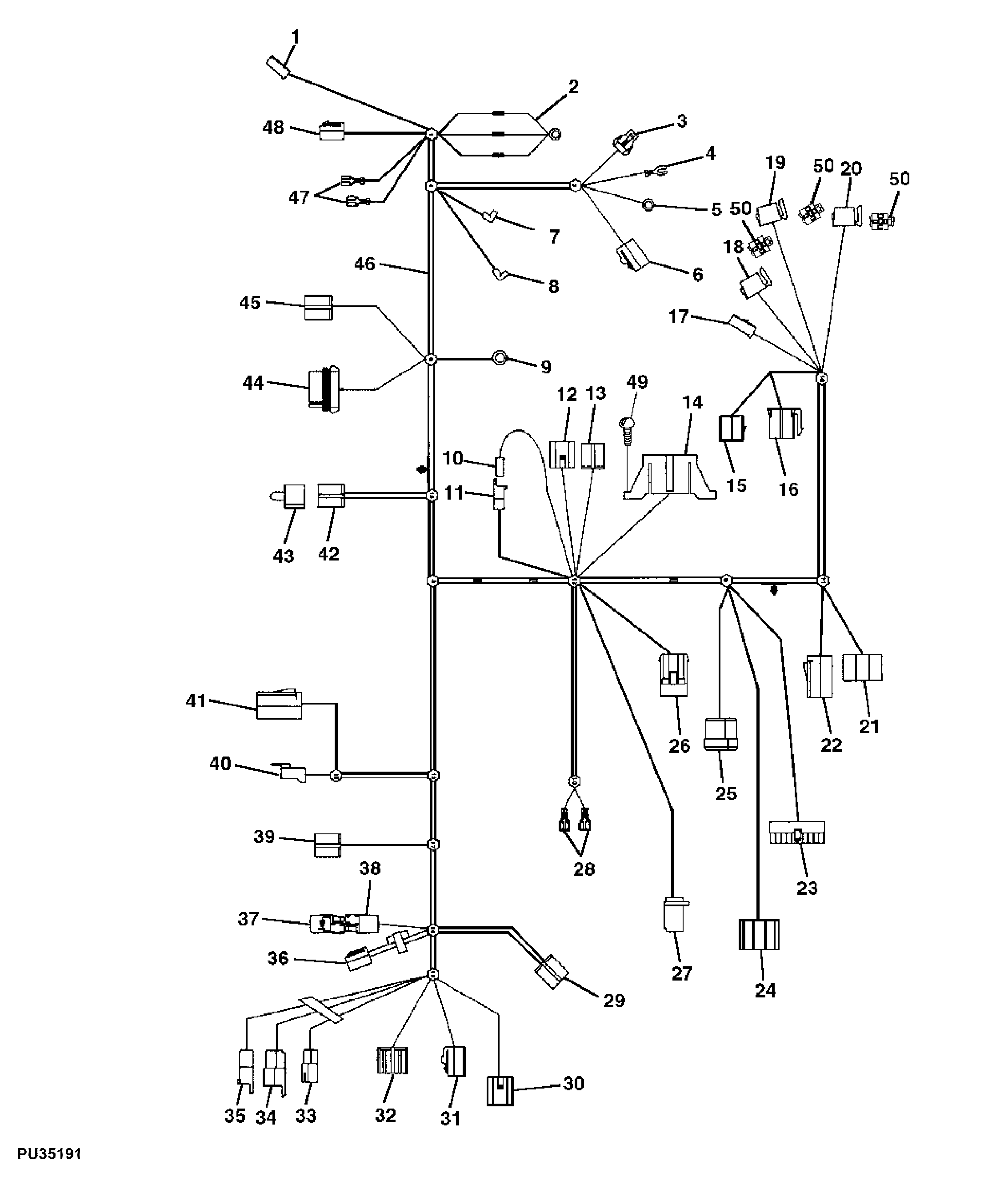

Main Wiring Harness (Export) ( - 030000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8820	1	Elec. Connector Housing	Starter Solenoid
2	57M9192	1	Elec. Connector Terminal	Starter
2	M71442	1	Elec. Connector Terminal	-
3	57M7254	1	Elec. Connector Housing	AIR RESTRICTION INDICATOR
4	-	1	Part 5	OIL PRESSURE SENSOR
5	57M9192	1	Elec. Connector Terminal	Glow Plug
6	AT262963	1	Electrical Connector Assy	FUEL SHUTOFF SOLENOID
7	57M10145	1	Elec. Connector Terminal	Coolant Temperature Switch
7	57M7904	1	Elec. Connector Terminal	-
8	57M10145	1	Elec. Connector Terminal	Coolant Temperature Sensor
9	57M9620	1	Elec. Connector Terminal	Engine Ground
10	57M8815	1	Elec. Connector Housing	SUB FOR T28583
11	T28585	1	Electrical Connector Assy	-
12	M115613	1	Elec. Connector Terminal	REAR PTO
13	57M7328	1	Elec. Connector Housing	REAR PTO
14	T126786	1	Fuse Holder	-
15	M135517	1	Elec. Connector Terminal	Control Board
16	M135518	1	Electrical Connector Assy	Control Board
16	R77483	1	Electrical Connector Assy	Turn Signal
17	57M8815	1	Elec. Connector Housing	SUB FOR T28583; Battery Lead
18	57M9362	1	Elec. Connector Housing	Preheat Relay
19	57M9362	1	Elec. Connector Housing	Over Temperature PTO Cutout Relay
20	57M9362	1	Elec. Connector Housing	Pull in Coil Relay
21	M133149	1	Electrical Connector Assy	PTO SWITCH
22	R77476	1	Electrical Connector Assy	Horn Switch SUB FOR 57M7144
23	-	1	Part 26	DISPLAY PANEL
24	R77483	1	Electrical Connector Assy	LIGHT SWITCH
25	R77483	1	Electrical Connector Assy	Turn Signal
26	57M7261	1	Elec. Connector Housing	DIESEL CONTROL MODULE
27	57M9617	1	Elec. Connector Housing	Flasher
28	-	2	Part 31	SERVICE INTERVAL TIMER RESET
29	M115613	1	Elec. Connector Terminal	RIO SWITCH
30	M135518	1	Electrical Connector Assy	Hazard Switch
31	R77476	1	Electrical Connector Assy	Fuel Sensor SUB FOR 57M7144
32	57M9631	1	Elec. Connector Housing	Rear Lights
33	T100454	1	Elec. Connector Housing	TRAILER
34	T28586	1	Electrical Connector Assy	TRAILER
35	T28585	1	Electrical Connector Assy	TRAILER
36	57M10146	1	Elec. Connector Housing	-
37	AM122590	1	Diode	PTO
38	57M9615	1	Elec. Connector Terminal	PTO Diode
39	T24167	1	Electrical Connector Assy	Rear PTO
40	57M7976	1	Electrical Connector Assy	SEAT
41	R77476	1	Electrical Connector Assy	License Plate SUB FOR 57M7144
42	T24167	1	Electrical Connector Assy	BRAKE SWITCH
43	AM128925	1	Switch	BRAKE
44	57M7261	1	Elec. Connector Housing	FRONT LIGHTS
45	T24167	1	Electrical Connector Assy	HOOD SWITCH
46	AM132681	1	Wiring Harness	-
47	57M9613	1	Elec. Connector Terminal	Horn
48	57M10146	1	Elec. Connector Housing	Alternator
49	37M7091	2	Screw	M6 X 25
50	M75140	3	Clip	-

Main Wiring Harness (Export) ( - 030000)

Нет текстового описания
