Wiring Harness, Instrument Panel ( - 110000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9630	2	Elec. Connector Terminal	Cavity 2, 3
1	57M10780	2	Elec. Connector Terminal	Cavity 1
1	57M8810	3	Elec. Connector Terminal	Cavity 4, 6, 8
1	M133149	1	Electrical Connector Assy	PTO Switch SW7
2	57M9494	1	Elec. Connector Housing	Key Switch SW6
2	57M9630	4	Elec. Connector Terminal	Cavity A1, B
2	57M10780	3	Elec. Connector Terminal	Cavity A2, L, S
3	57M10109	1	Connector	Chassis Wiring Harness J5CM
3	57M10108	1	Elec. Connector Terminal	Cavity A
3	57M10106	10	Elec. Connector Terminal	Cavity B, C, D, E, F, G, K, N, P, R
3	57M10107	3	Elec. Connector Terminal	Cavity H, J, S
4	57M9495	1	Elec. Connector Housing	Bulb Coolant L9
4	57M9496	2	Elec. Connector Terminal	Cavity A, B
5	57M9495	1	Elec. Connector Housing	Bulb Oil Pressure L8
5	57M9496	2	Elec. Connector Terminal	Cavity A, B
6	57M9495	1	Elec. Connector Housing	Bulb PTO L7
6	57M9496	2	Elec. Connector Terminal	Cavity A, B
7	57M7795	1	Elec. Connector Housing	Interlock Module X4
7	57M7501	10	Elec. Connector Terminal	Cavity A, B, C, D, E, F, G, H, J, K, L
8	57M9480	1	Elec. Connector Housing	Hour/Fuel Gage X1B
8	57M9481	4	Elec. Connector Terminal	Cavity A, B, C, D
9	57M8835	1	Elec. Connector Accessory	-
10	AM140952	1	Gauge	Fuel / Hourmeter
11	GY20680	1	Key	Ignition
12	AR62407	3	Bulb	Lamp
13	AM141075	1	Electronic Control Unit	Interlock
14	GX24487	1	Screw	-
15	AM133597	1	Rotary Switch	-
16	AM135131	1	Switch	PTO
17	AM138548	1	Instrument PNL WRG Harness	-

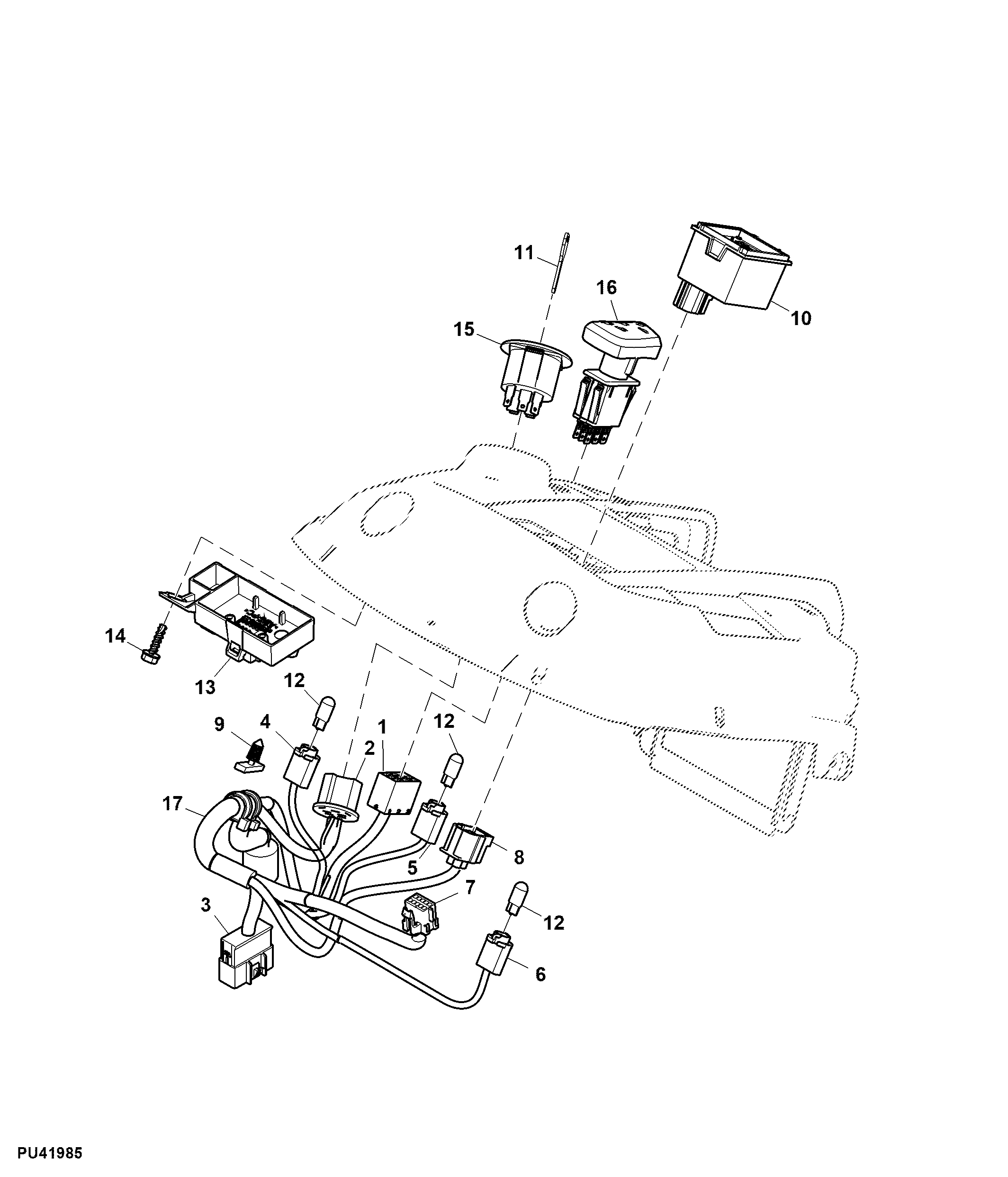

Wiring Harness, Instrument Panel ( - 110000)
