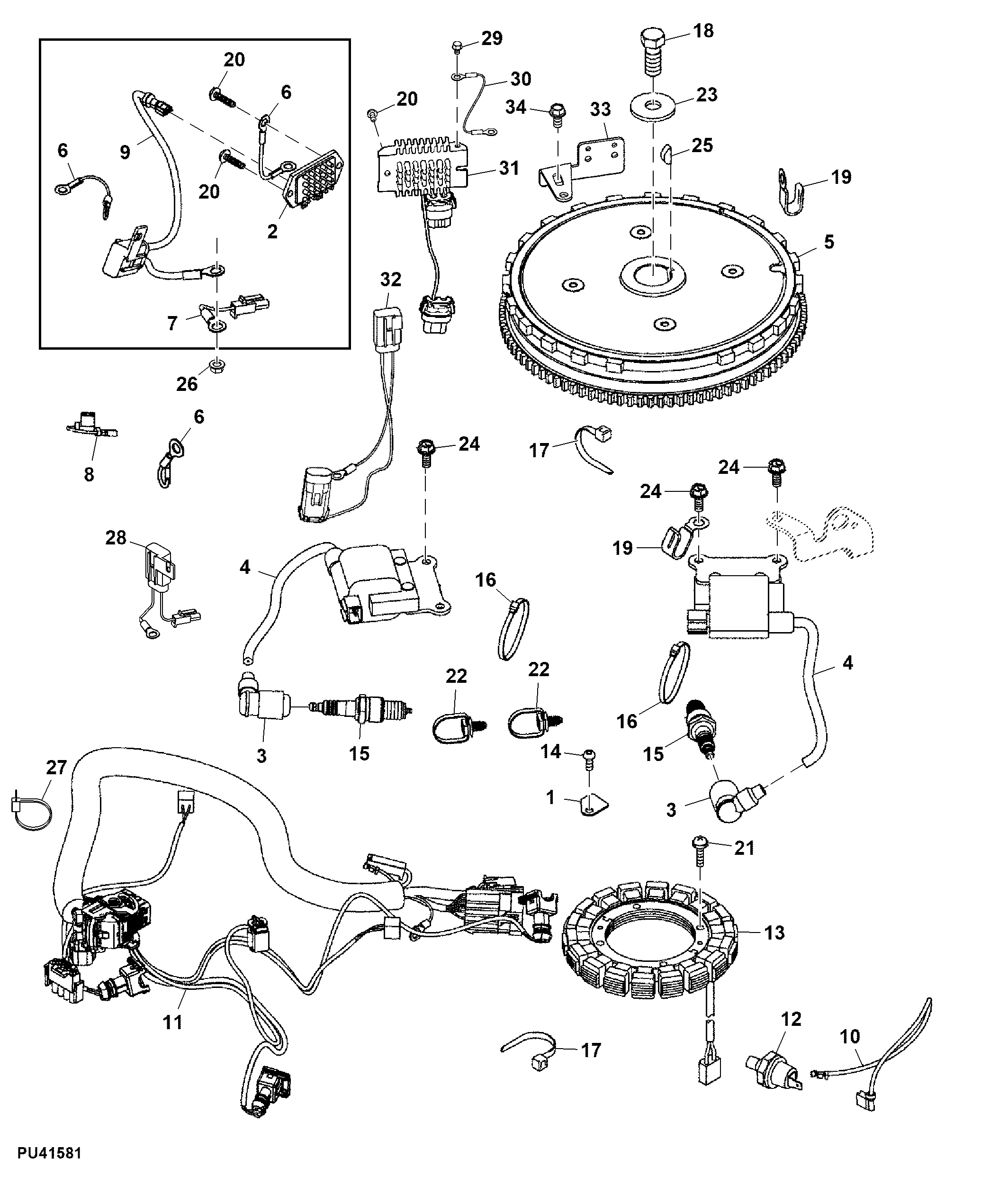

Flywheel, Stator, Ignition Coil and Voltage Regulator

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	MIU12429	1	Plate	-
2	MIU14409	1	Voltage Regulator	ORDER UC11558, AUC10830, UC11559, M152978, UC11595 AND UC11592
3	M88905	2	Cap	Spark Plug
4	MIA13061	2	Ignition	Coil
5	MIA13062	1	Flywheel	ORDER AUC10295
5	AUC10295	1	Flywheel	-
6	M92721	2	Wire	USE WITH MIA13067
6	M92721	1	Wire	USE WITH AUC10830
7	MIU14413	1	Wiring Harness	ORDER UC10169
8	MIU14414	1	Wiring Harness	Starter Extension
9	MIU14415	1	Wiring Harness	ORDER UC11592
10	MIU14412	1	Wiring Harness	Oil Switch Extension
11	MIU14441	1	Wiring Harness	Engine
12	MIU14483	1	Switch	Oil Pressure
13	MIA13067	1	Stator	Charging ORDER UC11558, AUC10830, UC11559, M152978, UC11595 AND UC11592
13	AUC10830	1	Stator	Charging
14	M95848	1	Screw	-
15	M805853	2	Spark Plug	-
16	MIU14424	2	Tie Band	-
17	R44302	2	Tie Band	SUB FOR M140253
18	M138449	1	Bolt	-
19	M149301	2	Clamp	-
20	MIU14426	2	Screw	-
21	MIU11338	4	Screw	-
22	RE553338	2	Tie Band	SUB FOR MIU14428
23	M138450	1	Washer	-
24	19M7775	4	Screw	M6 X 16
25	M77843	1	Shaft Key	SUB FOR M88487
26	14M7298	1	Flange Nut	M8
27	H77698	2	Tie Band	-
28	UC10169	1	Wiring Harness	-
29	M152978	1	Bolt	-
30	UC11559	1	Wire	USE WITH AUC10830
31	UC11558	1	Voltage Regulator	USE WITH AUC10830
32	UC11592	1	Wiring Harness	Regulator USE WITH AUC10830
33	UC11595	1	Bracket	USE WITH AUC10830
34	19M7865	1	Screw	M8 X 16

Flywheel, Stator, Ignition Coil and Voltage Regulator

Нет текстового описания
