Wiring Harness ( - 010822)

Wiring Harness ( - 010822)

Wiring Harness ( - 010822)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Wiring Harness ( - 010822)

Нет текстового описания

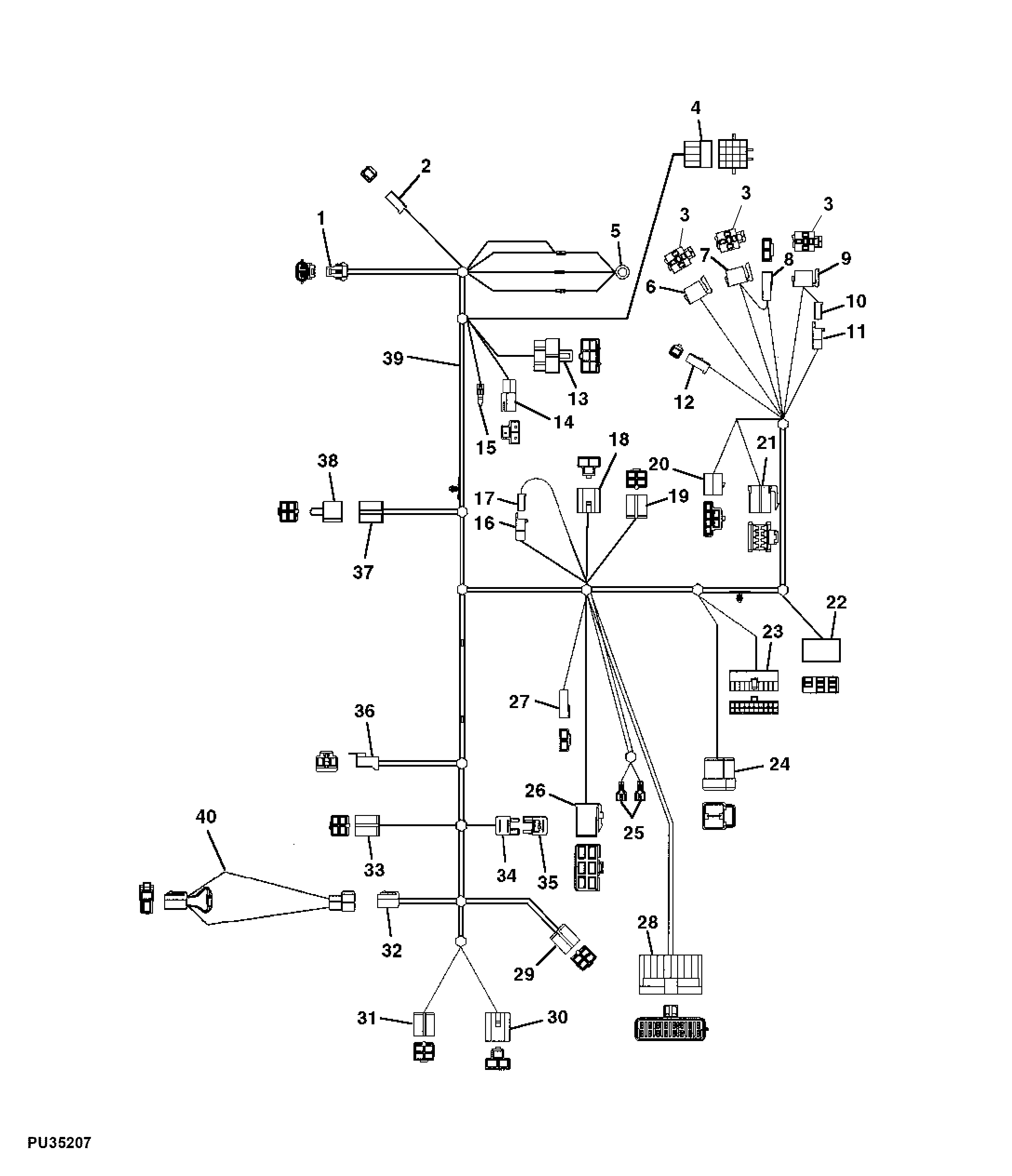

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7328	1	Elec. Connector Housing	HOUR METER
2	M43835	1	Electrical Connector Assy	-
3	M75140	3	Clip	-
4	57M9628	1	Elec. Connector Terminal	Electronic Fuel Injection
5	57M7172	1	Elec. Connector Terminal	Starter
5	T126788	1	Elec. Connector Terminal	-
5	M71442	1	Elec. Connector Terminal	-
6	57M9362	1	Elec. Connector Housing	Safety Signal Relay
7	57M9362	1	Elec. Connector Housing	Main Relay
8	57M8829	1	Elec. Connector Accessory	-
8	57M7121	1	Fuse	10 A
9	57M9362	1	Elec. Connector Housing	Fuel Pump Relay
10	57M8815	1	Elec. Connector Housing	SUB FOR T28583
11	T28585	1	Electrical Connector Assy	-
12	57M8815	1	Elec. Connector Housing	SUB FOR T28583; Battery Lead
13	T72143	1	Electrical Connector Assy	ENGINE
14	T100454	1	Elec. Connector Housing	ENGINE
15	57M10145	1	Elec. Connector Terminal	Engine
16	T28585	1	Electrical Connector Assy	-
17	57M8815	1	Elec. Connector Housing	SUB FOR T28583
18	M115613	1	Elec. Connector Terminal	REAR PTO
19	T24167	1	Electrical Connector Assy	REAR PTO
20	M135517	1	Elec. Connector Terminal	CONTROL PANEL
21	M135518	1	Electrical Connector Assy	CONTROL PANEL
22	M133149	1	Electrical Connector Assy	PTO SWITCH
23	-	1	Part 26	DISPLAY PANEL
24	R77483	1	Electrical Connector Assy	Light Switch
25	-	2	Part 28	SERVICE TIMER
26	AM108848	1	Regulator Kit	VOLTAGE REGULATOR
27	57M8829	1	Elec. Connector Accessory	-
27	57M7120	1	Fuse	20 A
28	T72143	1	Electrical Connector Assy	Electronic Fuel Injection Box
29	T24167	1	Electrical Connector Assy	RIO
30	M115613	1	Elec. Connector Terminal	FUEL SENSOR
31	T24167	1	Electrical Connector Assy	LIGHTS
32	57M10146	1	Elec. Connector Housing	PTO Clutch
33	T24167	1	Electrical Connector Assy	REAR PTO
34	57M9615	1	Elec. Connector Terminal	-
35	AM122590	1	Diode	-
36	57M7974	1	Electrical Connector Assy	SEAT
37	T24167	1	Electrical Connector Assy	BRAKE SWITCH
38	AM128925	1	Switch	BRAKE SWITCH
38	M67899	2	Rivet	-
39	AM132602	1	Wiring Harness	(SUB FOR AM129686)
40	AM132613	1	Jumper	PTO DIODE
..	AM116760	1	Link Kit	(.5 MM), FUSIBLE LINK
..	AM107086	1	Link Kit	(.8 MM), FUSIBLE LINK
..	AM107087	1	Link Kit	(1.0 MM), FUSIBLE LINK
