Открытый узел

Wiring Harness (020001 - 050000)

Wiring Harness (020001 - 050000)

Wiring Harness (020001 - 050000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Wiring Harness (020001 - 050000)

Нет текстового описания

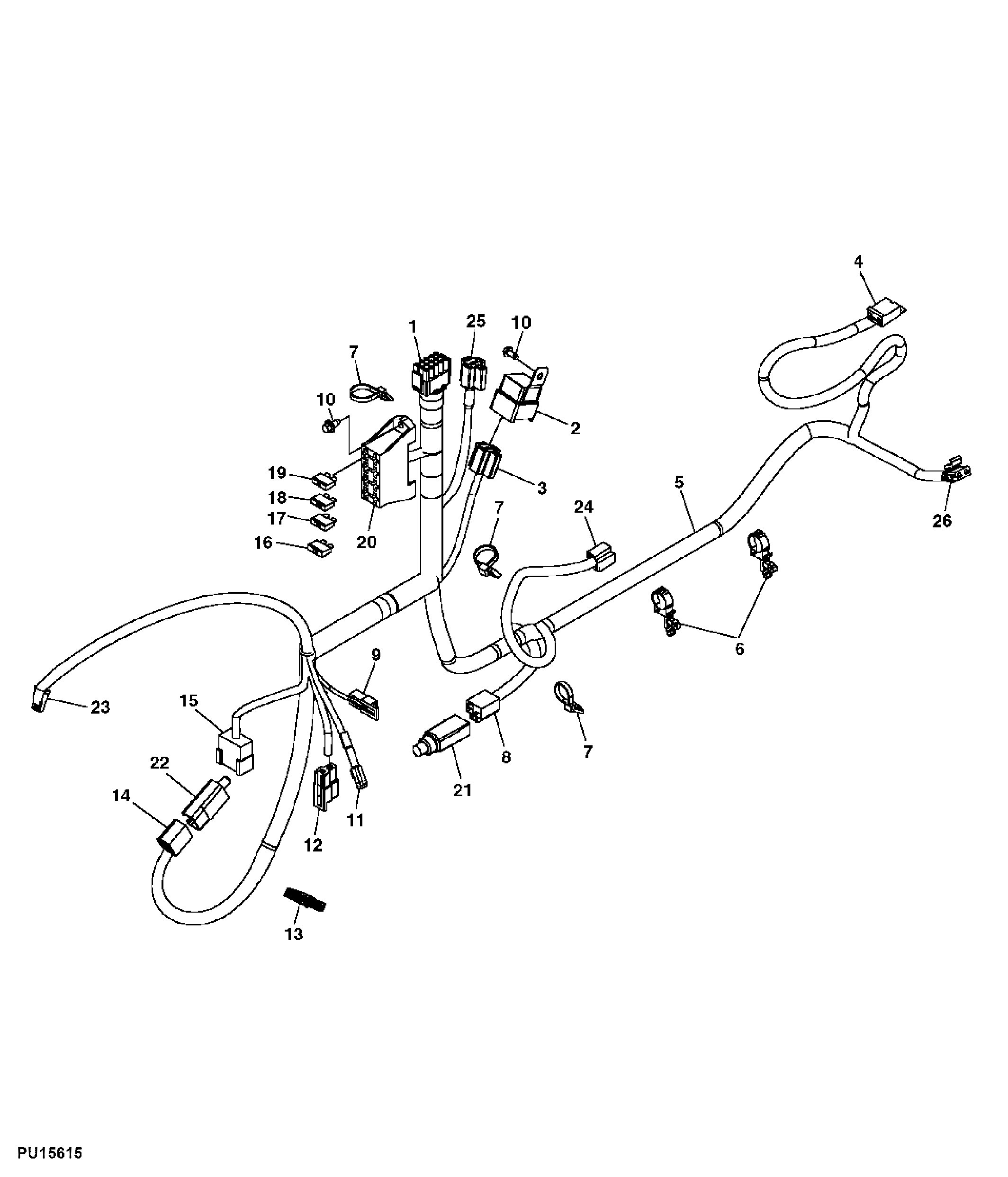

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M10115	1	Elec. Connector Housing	J5CF, Instrument Panel
1	57M9485	1	Elec. Connector Housing	J5CF, Instrument Panel
1	57M10111	3	Elec. Connector Terminal	Cavity H, J, S
1	57M10110	10	Elec. Connector Terminal	Cavity B-G, K, N, P, R
2	AT75769	2	Relay	SUB FOR AM106305; Starter and PTO Over Temp
3	57M9497	1	Elec. Connector Housing	K2, Starter Relay
3	T107134	4	Elec. Connector Terminal	Cavity 1, 2, 4, 5
4	57M7974	1	Electrical Connector Assy	SW1, Seat Switch
4	57M8810	2	Elec. Connector Terminal	Cavity A, B
5	AM136116	1	Wiring Harness	-
5	AM138547	1	Wiring Harness	ALSO ORDER AM138548; Main
6	57M9647	2	Clip	-
7	R44302	3	Tie Band	-
8	57M9632	1	Elec. Connector Terminal	Cavity A
8	57M8810	1	Elec. Connector Terminal	Cavity C
8	M90206	1	Elec. Connector Terminal	SW3, Reverse Switch
9	T28585	1	Electrical Connector Assy	J4F, Ground
9	57M9643	1	Elec. Connector Terminal	Cavity 1
10	37H94	3	Screw	0.216" X 1/2"
11	AM122590	1	Diode	D1
11	57M9618	1	Elec. Connector Terminal	Cavity A
11	57M9619	1	Elec. Connector Terminal	Cavity B
12	T28586	1	Electrical Connector Assy	K1, PTO Clutch
12	M71442	1	Elec. Connector Terminal	Cavity A
13	57M9638	1	Clip	-
14	T34067	2	Elec. Connector Terminal	Cavity A, C
14	M90206	1	Elec. Connector Terminal	SW5, Brake Switch
15	57M9487	1	Elec. Connector Housing	J2M, Engine Wiring, 6-Pin
15	57M9488	1	Elec. Connector Terminal	Cavity 1
15	57M9489	5	Elec. Connector Terminal	Cavity 2-6
16	99M7064	1	Fuse	7.5 A
17	57M7120	1	Fuse	20 A
18	57M7121	1	Fuse	10 A
19	99M7065	1	Fuse	15 A
20	57M7297	5	Elec. Connector Terminal	Cavity B, D, F-H
20	57M9639	3	Elec. Connector Terminal	Cavity A, C, E
20	57M8828	1	Elec. Connector Accessory	F1-4
21	LVA13307	1	Switch	Reverse
22	AMT469	1	Switch	Brake
23	-	1	Part 40	J3F, Headlights
23	R77469	2	Elec. Connector Terminal	Cavity 1, 2
24	57M8812	1	Elec. Connector Housing	J1F, Power Port
24	U46662	2	Elec. Connector Terminal	Cavity A, B
25	57M9497	1	Elec. Connector Housing	K3, PTO Over Temp Relay
25	T107134	4	Elec. Connector Terminal	Cavity 1, 2, 4, 5
26	57M7309	1	Elec. Connector Housing	X7, Fuel Sending Unit
26	57M7297	2	Elec. Connector Terminal	Cavity A, B
26	57M7306	1	Elec.Connect Locking Device	-
