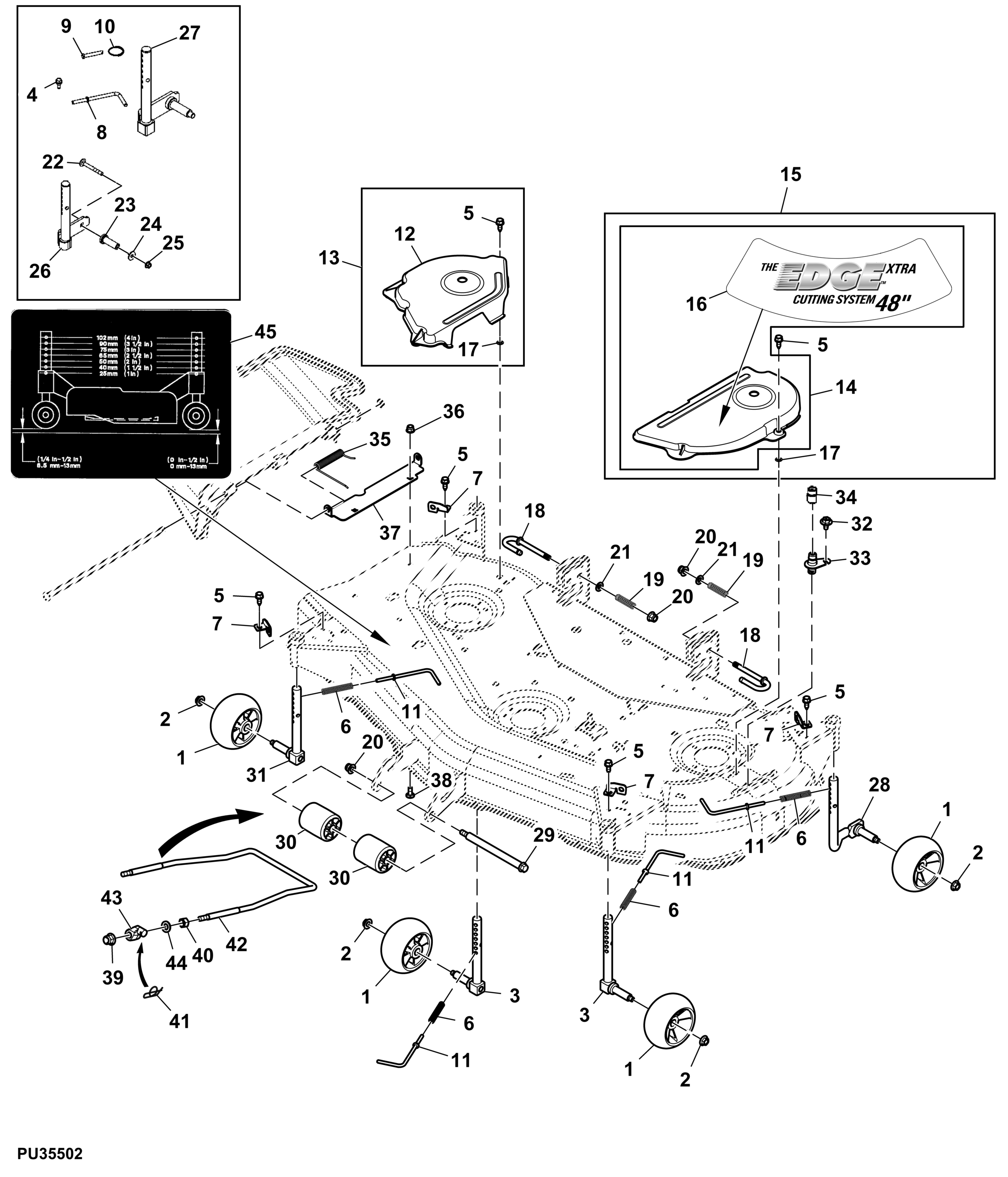

Gage Wheels and Shield Covers, 48X inch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M111489	4	Wheel	-
2	M142955	4	Lock Nut	-
3	AM136328	2	Arm	LH Front / RH Rear
3	AM120681	2	Arm	LH Front / RH Rear
4	GX22456	6	Screw	SUB FOR GX20234
4	GX22456	2	Screw	SUB FOR GX20234
5	M159825	2	Screw	-
5	M159825	6	Screw	-
6	M148312	4	Compression Spring	-
7	M153696	4	Bracket	-
8	M148657	4	Pin	USE WITH AM135885
9	M155678	4	Pin Fastener	USE WITH AM140424
10	M88183	4	Ring	-
11	M161289	4	Pin	USE WITH AM140424
12	M152910	1	Shield	RH, Belt Order AM143279
13	AM143279	1	Cover	RH, Belt
14	AM135742	1	Cover	LH, Belt ORDER AM143278
15	AM143278	1	Shield	LH, Belt
16	M154529	1	Label	-
17	M84309	2	Nut	-
18	UC27976	2	Hook Bolt	SUB FOR M156381 OR M153664 OR M168289
19	M151706	2	Compression Spring	-
19	M156581	2	Spring	-
20	14M7465	3	Lock Nut	M10
21	24M7028	2	Washer	10.500 X 20 X 2 mm
22	03M7305	1	Bolt	M8 X 70, USE WITH AM132874
23	M111491	1	Bushing	USE WITH AM132874
24	M110698	1	Washer	USE WITH AM132874
25	14M7298	1	Flange Nut	M8, USE WITH AM132874
26	AM132874	1	Arm	LH, Rear
27	AM136329	1	Arm	LH, Rear ORDER AM138220
28	AM138220	1	Arm	LH, Rear
29	M111134	1	Rod	-
29	M158262	1	Screw	-
30	M113955	2	Roller	-
31	AM120680	1	Arm	RH, Front
31	AM136327	1	Arm	RH, Front
32	AM146246	1	Screw With Washer	-
33	GX22426	1	Port Plate	-
34	GX22425	1	Quick Coupler	-
35	M132768	1	Spring	-
36	14M7396	2	Lock Nut	M8
37	M159491	1	Hinge	SUB FOR M133644
38	03M7184	2	Bolt	M8 X 20
39	14M7401	2	Lock Nut	M12
40	14M7275	2	Nut	M12
41	M154221	2	Cotter Pin	-
42	M157568	1	Rod	-
43	UC14170	2	Trunnion	-
44	24M7047	2	Washer	13 X 24 X 2.500 mm
45	M113815	1	Label	Wheel Adjustment

Gage Wheels and Shield Covers, 48X inch
