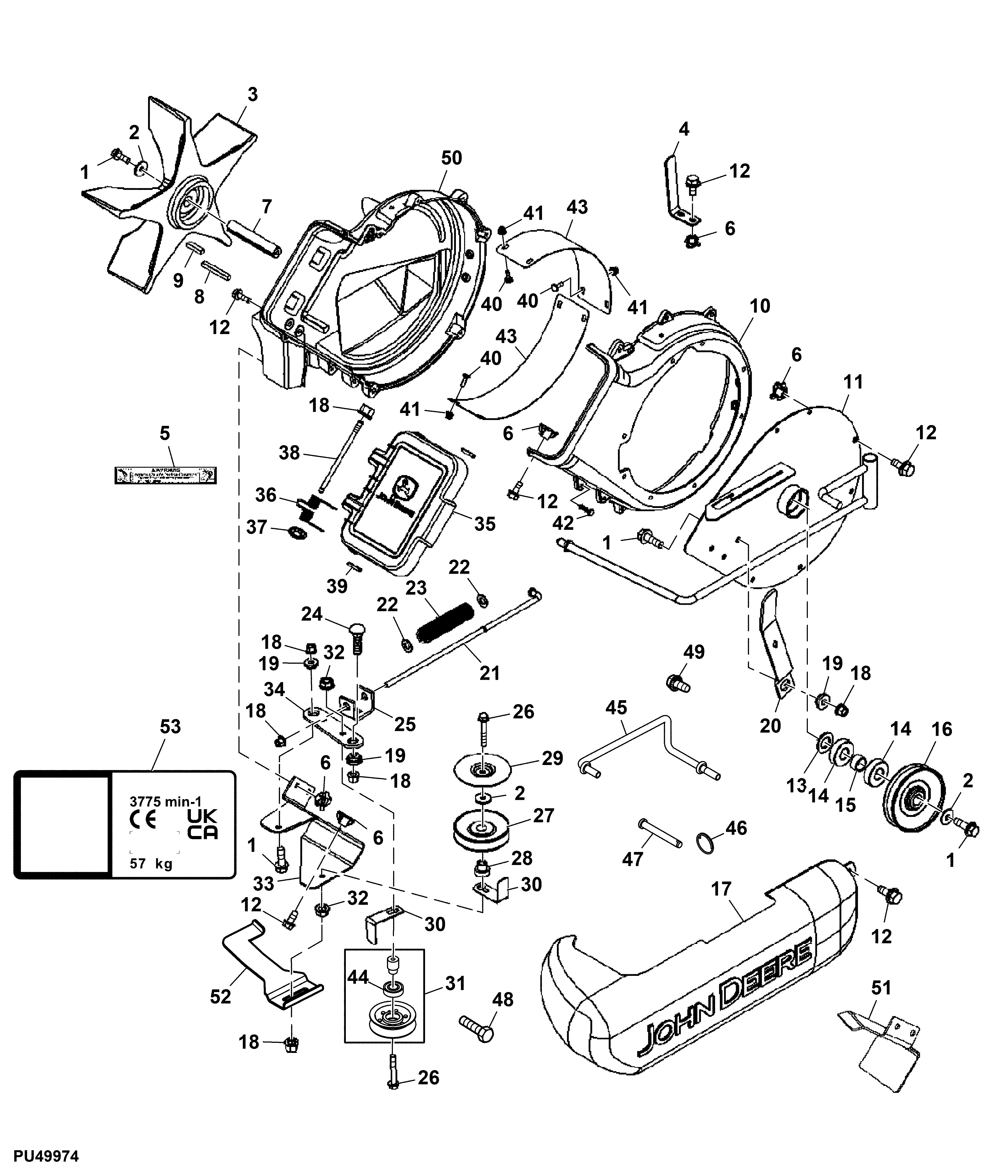

Blower Housing, 48C inch (Not for Canada and USA)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7867	4	Screw	M8 X 25
2	24M7024	4	Washer	9 X 28 X 3 mm
3	M144110	1	Blower Fan	-
4	M146046	1	Bracket	USE WITH BM24470; Chute
5	M158500	1	Label	Warning, Not for Canada and USA
6	M112447	12	Nut	-
7	M163545	1	Drive Shaft	-
8	M133474	1	Shaft Key	-
9	49M6496	1	Shaft Key	5 X 22 mm
10	AM138418	1	Housing	Short INCLUDES (10) M112447
11	AM130969	1	Support	-
12	TCU33283	12	Bolt	-
13	24M7051	1	Washer	21 X 37 X 3 mm
14	JD7142	2	Ball Bearing	-
15	28H1885	1	Bushing	0.824" X 1.050" X 1/2"
16	AM121832	1	Sheave	OD = 121 mm
17	M167606	1	Shield	-
18	14M7396	7	Lock Nut	M8
19	M110316	3	Washer	-
20	M144500	1	Lever	-
21	M144501	1	Rod	-
22	24M7095	2	Washer	8.400 X 15 X 1.600 mm
23	M146119	1	Spring	-
24	03M7185	1	Bolt	M8 X 25
25	M144494	1	Clevis	Tension
26	19M7979	2	Screw	M8 X 55
27	AM118447	1	Sheave	OD = 94.1 mm
28	M71682	1	Bushing	-
29	M147446	1	Shield	-
30	M135488	2	Bracket	-
31	AM128189	1	Pulley With Dampener	OD = 77.7 mm
32	14M7298	2	Flange Nut	M8
33	M144490	1	Bracket	Idler Mounting
34	M155570	1	Arm	SUB FOR M144493
35	M157578	1	Cover	-
36	M157579	1	Torsion Spring	-
37	M84309	1	Nut	-
38	M158388	1	Rod	-
39	34H282	2	Spring Pin	3/16" X 1"
40	03M7222	8	Bolt	M6 X 20
41	14M7397	8	Lock Nut	M6
42	M158578	8	Screw	-
43	M158389	1	Plate	-
44	JD8535	1	Ball Bearing	-
45	M158754	1	Rod	-
46	M88183	1	Ring	-
47	M88436	1	Pin Fastener	-
48	03M7184	1	Bolt	M8 X 20
49	M159825	2	Screw	-
50	AM142013	1	Housing	Long INCLUDES (2) 34H282 AND (2) M112447
51	M159472	1	Shield	Not for Canada and USA
52	M166763	1	Bracket	Belt Shield Brace
53	UC30563	1	Label	-
54	GX25997	1	Shield	Not Illustrated
55	GX26024	1	Isolator	Not Illustrated

Blower Housing, 48C inch (Not for Canada and USA)
