Belt Drive, Idlers and Shields, Tiller, 30 inch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7163	1	Cap Screw	M8 X 25
2	19H3118	1	Cap Screw	3/8" X 4-1/2"
3	19H1835	1	Cap Screw	3/4" X 1-1/2"
4	14M7397	2	Lock Nut	M6
5	14M7465	5	Lock Nut	M10
6	14M7396	4	Lock Nut	M8
7	14M7273	1	Nut	M8
8	14H812	2	NUT	3/8"
9	03M7222	2	Bolt	M6 X 20
10	03M7195	1	Bolt	M10 X 45
11	03M7191	3	Bolt	M10 X 25
12	37M7459	1	Screw	M6 X 20
13	37M7457	2	Screw	M6 X 16
14	34H247	2	Spring Pin	1/8" X 3/4"
15	26H77	1	Shaft Key	3/16" X 3/4"
16	24M7178	1	Washer	10.500 X 30 X 2.500 mm
17	24M7055	2	Washer	8.400 X 16 X 1.600 mm
18	24H1399	1	Washer	25/32" X 1-5/8" X 0.180"
19	22H843	2	Set Screw	3/8" X 7/16"
20	19M7805	1	Screw	M10 X 45
21	19M7801	1	Screw	M8 X 60
22	M137380	2	Guide	Belt
23	M121038	2	Wheel	Gage
24	K40016	1	Lock Nut	-
25	H22802	2	Compression Spring	-
26	AM135778	2	Arm	Wheel
27	AM115682	1	Idler	OD = 77.724 mm, W/ Bearing
28	AM123948	1	Shield	-
29	AM135593	1	Shield	Belt
30	AM37249	1	Idler	OD = 103.886 mm, W/ Bearing
31	E63525	4	Nut	-
32	R76477	4	Tie Band	-
33	E55367	2	Push Nut	-
34	M79145	1	Spacer	-
35	M75673	1	Rod	Gauge
36	M75660	1	Pulley	OD = 222.450 mm
37	M75653	2	Pin Fastener	-
38	M72232	1	Washer	-
39	M72228	1	Angle	Belt Idler Adjustment
40	M137547	1	V-Belt	LGTH = 2645 mm, TK = 10.4 mm, WIDTH = 14.2 mm, Secondary
41	M71682	1	Bushing	-
42	M72189	1	Shield	Bottom Belt
43	19M7139	4	Cap Screw	M8 X 20
44	19M7979	2	Screw	M8 X 55
45	M154266	1	Shield	-

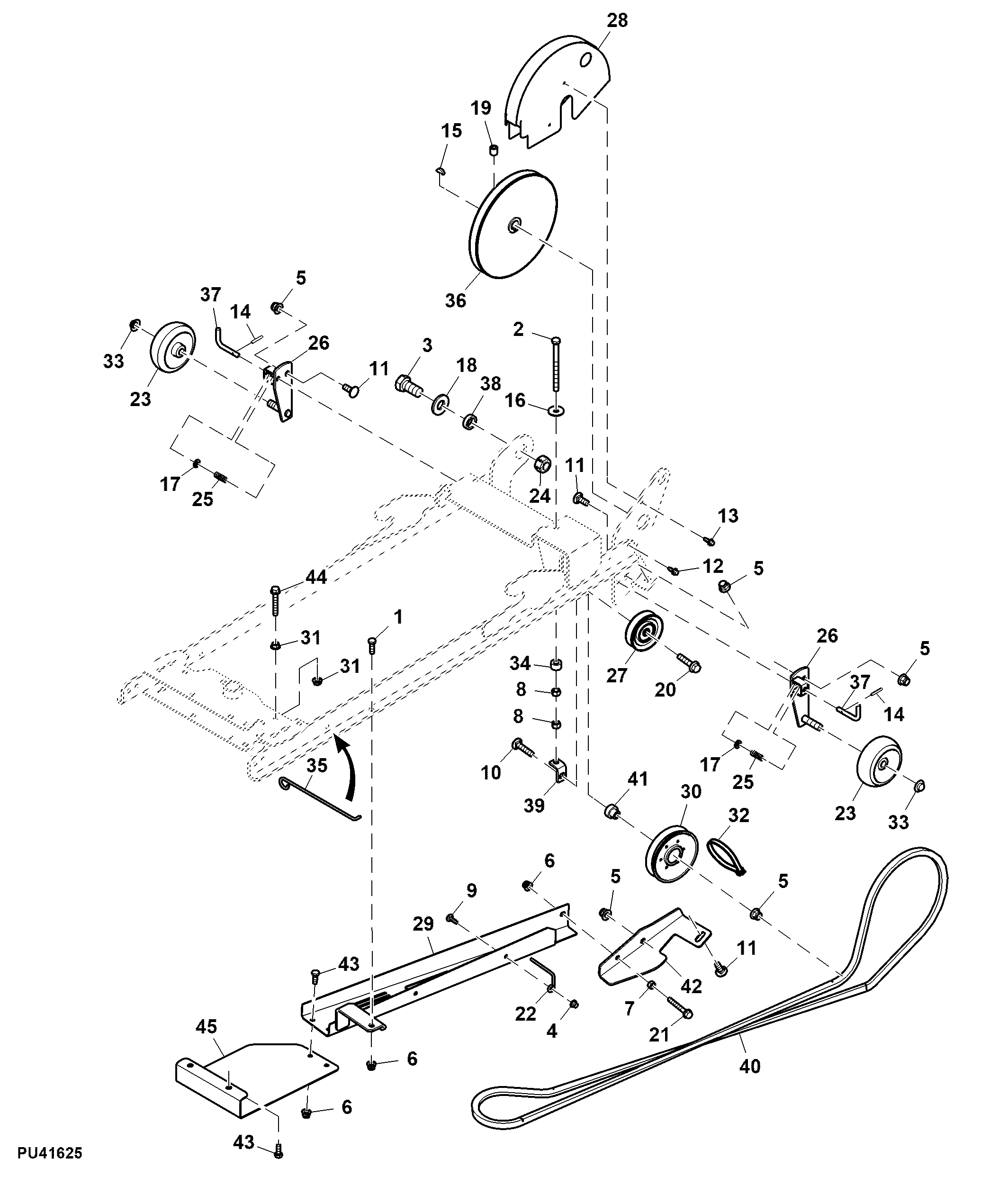

Belt Drive, Idlers and Shields, Tiller, 30 inch
