Большое обновление пильных узлов

Смотреть

Открытый узел

Powerflow, 48A inch, Not for Canada and USA, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BG20772	1	Mower Attachment WHL/Goods	-
2	GX26461	1	Pin	-
3	M146337	1	Label	Belt Installation
4	M158480	1	Label	Warning, English
5	34H282	2	Spring Pin	3/16" X 1"
6	M112447	12	Nut	-
7	AM138418	1	Housing	Short
8	GY21961	1	Plate	-
9	M158389	2	Plate	Blower Wear
10	03M7222	8	Bolt	M6 X 20
11	14M7397	8	Lock Nut	M6
12	M158578	8	Screw	-
13	M164726	1	Pin	-
14	M164690	1	Cover	-
15	M157579	1	Torsion Spring	-
16	M84309	3	Nut	-
17	M163545	1	Drive Shaft	Impeller
18	M135488	3	Bracket	Belt
18	M135488	2	Bracket	Belt
19	M71682	1	Bushing	-
20	AM118447	1	Sheave	OD = 94.1 mm, Idler
21	03M7245	1	Bolt	M8 X 55
22	24M7024	3	Washer	9 X 28 X 3 mm
23	M147446	1	Shield	Sheave Idler
24	19M7979	2	Screw	M8 X 55
24	19M7799	1	Screw	M8 X 45
25	14M7298	2	Flange Nut	M8
26	14M7396	8	Lock Nut	M8
26	14M7396	7	Lock Nut	M8
28	M110316	3	Washer	-
28	M110316	2	Washer	-
29	M144494	1	Clevis	Tension Pivot
30	19M7867	3	Screw	M8 X 25
31	03M7185	1	Bolt	M8 X 25
32	AM128189	1	Pulley With Dampener	OD = 77.7 mm, Idler
33	49M6496	1	Shaft Key	5 X 22 mm
34	M133474	1	Shaft Key	-
35	JD7142	2	Ball Bearing	-
36	28H1885	1	Bushing	0.824" X 1.050" X 1/2"
37	24M7051	1	Washer	21 X 37 X 3 mm
38	M144110	1	Blower Fan	-
39	AM121832	1	Sheave	OD = 121 mm, Driven
40	24M7095	2	Washer	8.400 X 15 X 1.600 mm
41	19M7861	12	Screw	M6 X 10
41	19M7861	10	Screw	M6 X 10
42	M147044	1	V-Belt	LGTH = 2276 mm, TK = 7.874 mm, WIDTH = 12.7 mm
42	UC20041	1	V-Belt	LGTH = 2276 mm
43	GX25678	1	Bracket	-
45	GX25680	1	Lever	-
46	GC00309	3	Nut	-
46	GC00309	1	Nut	-
47	UC21492	1	Shield	SUB FOR APPL GX25546; SUB FOR UC14198; Outer
48	GX25677	1	Shield	-
49	GX26084	1	Spring	-
50	19M7863	3	Screw	M6 X 25
50	19M7862	1	Screw	M6 X 20
51	GY22255	1	Sheave	OD1 = 101.6 mm, OD2 = 128 mm
52	MIA13223	1	Bracket	-
53	GX26467	1	Shield	-
54	M158500	1	Label	Warning
55	AUC10897	1	Shield	-
56	GX25650	1	Label	Danger
57	37M7461	1	Screw	M8 X 25
58	37M7176	2	Screw	M6 X 16
59	M175559	1	Push Nut	-
60	M175558	2	Washer	-
61	UC11688	1	Shield	-
62	37M7458	2	Screw	M6 X 12
63	19M7866	4	Screw	M8 X 20
64	M84971	2	Nut	-
65	M157085	1	Pin Fastener	-
66	24M7251	2	Washer	6.400 X 18 X 1.600 mm
67	24M7260	1	Washer	8.400 X 24 X 2 mm
68	GY21780	1	Housing	Long INCLUDES (2) M112447
69	19M7775	2	Screw	M6 X 16
70	M160955	2	Dual Lock Fastener	-
71	24M7139	2	Washer	6.400 X 18 X 1.600 mm
27A	M155570	1	Arm	-
27B	UC16773	1	Arm	-
44A	GX25679	1	Lever	-
44B	UC14948	1	Lever	-

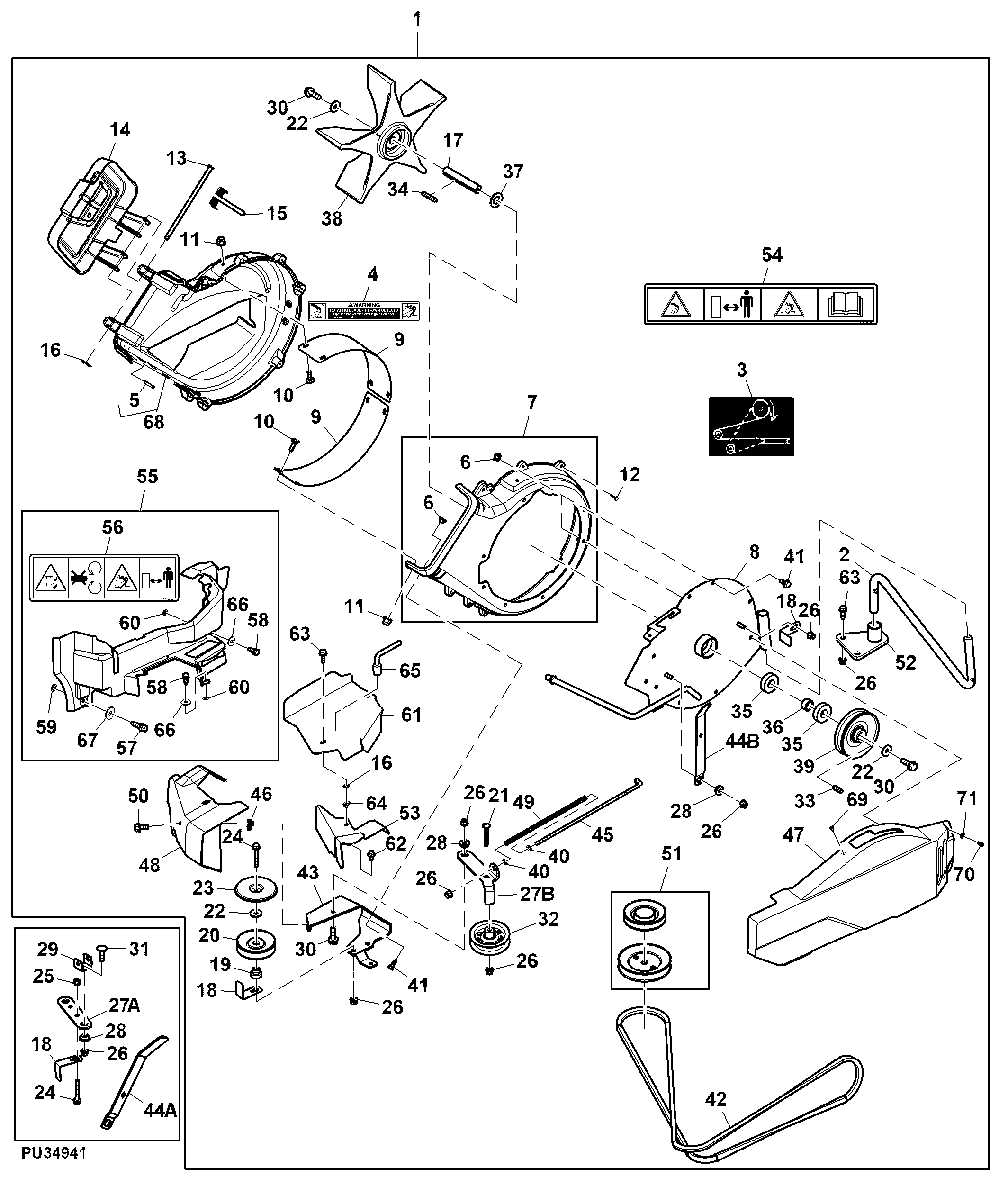

Powerflow, 48A inch, Not for Canada and USA, Attachment
