Material Collection System, 3 - Bag, 14 - bushel, 48A / 54A inch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BM21680	1	Material Collection System	-
2	03M7183	2	Bolt	M8 X 16
3	11M7012	2	Cotter Pin	3.200 X 16 mm
4	14M7296	4	Flange Nut	M10
5	14M7298	4	Flange Nut	M8
6	19M7814	2	Screw	M12 X 50
7	M150380	2	Spacer	SUB FOR E57570
8	M43649	2	Pin	-
9	M146578	1	Label	Danger Back Over French
10	M146579	1	Label	Danger Back Over Not for Canada and USA
11	M168926	1	Label	Danger Back Over Spanish
12	M129038	1	Label	Warning / Caution French
13	M168092	1	Label	Warning / Caution
14	M169457	1	Label	Caution No Text
15	19M7866	2	Screw	M8 X 20
16	AM131130	1	Lock	SUB FOR AM131130BLE
17	AM131807	1	Cylinder	-
18	M127459	2	Bushing	-
19	M139714	25	Rivet	SUB FOR M68628
20	M144431	3	Frame	SUB FOR M144431BLE
21	AM135816	3	Bag	Medium Density SUB FOR AM135816
22	M154732	1	Cover	Hopper SUB FOR M144583
23	M154730	1	Cover	Rear SUB FOR M145060
24	M145190	1	Spring	-
25	M145337	1	Seal	-
26	M145364	1	Screen	-
27	M145541	1	Isolator	-
28	M145677	1	Rail	SUB FOR M145677BLE
29	M146238	1	Label	Danger Back Over
30	M151187	1	Label	Warning Thrown Object
31	M146387	2	Nut	-
32	03M7186	2	Bolt	M8 X 30
33	14M7396	2	Lock Nut	M8
34	37M7472	5	Screw	M8 X 40
35	AM131743	1	Frame	SUB FOR AM131743BLE
36	M110316	1	Washer	-
37	M130860	1	Latch	Mount RH
38	M130861	1	Latch	Mount LH
39	M146196	1	Rod	Latch
40	M146315	1	Latch	Safety
41	M146366	2	Spring	-
42	GX26547	1	Bracket	Upper Mount LH SUB FOR M153395
43	M80072	2	Washer	SUB FOR M120771
44	M146153	1	Bracket	Upper Mount SUB FOR M146153BLE
45	LVA14749	2	Brace	Support Bag Frame SUB FOR M145167
46	AM144165	1	Frame Kit	SUB FOR AM130926 OR AM130926BLE
47	14M7401	2	Lock Nut	M12
48	AM144164	1	Frame Kit	-

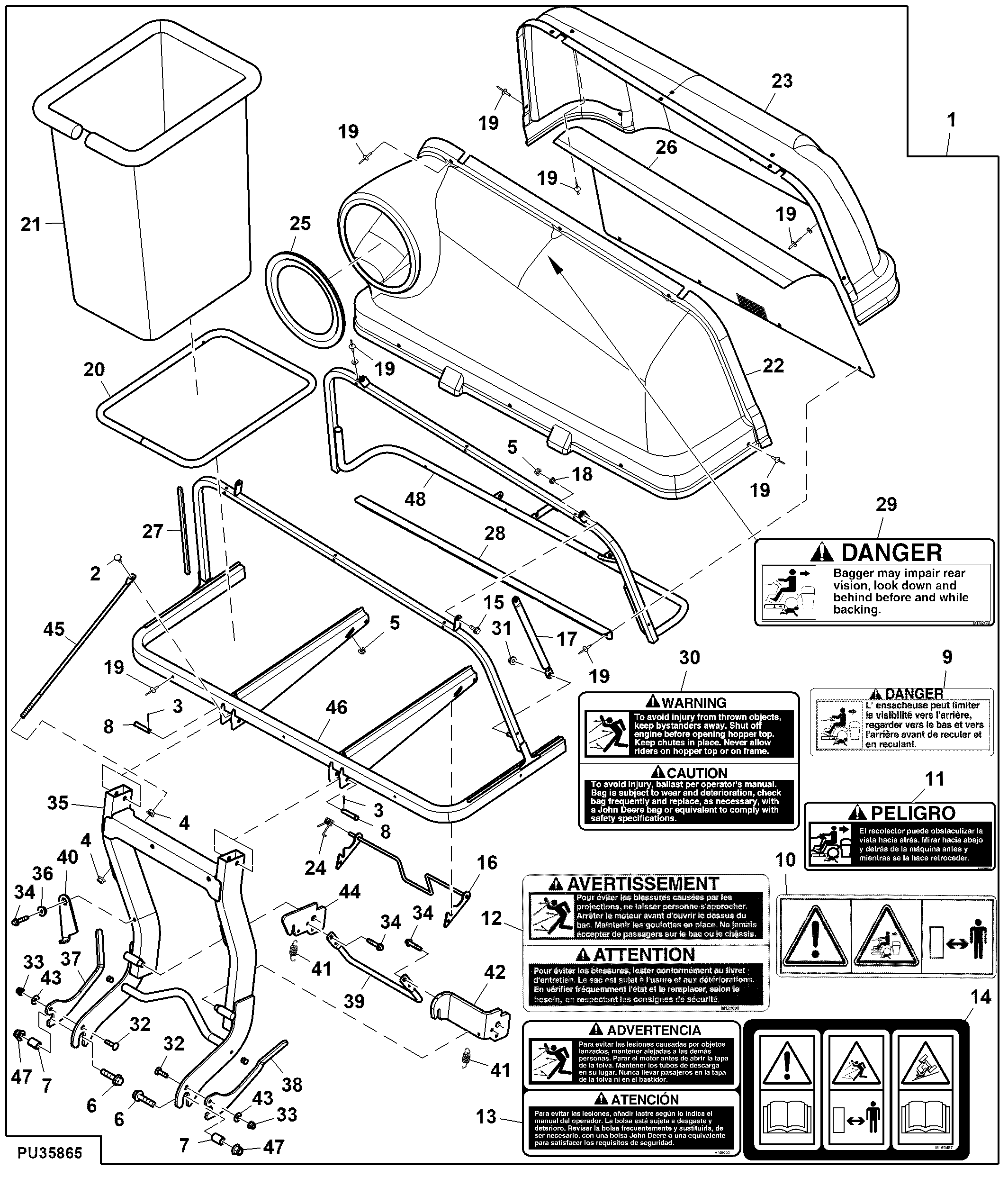

Material Collection System, 3 - Bag, 14 - bushel, 48A / 54A inch
