Открытый узел

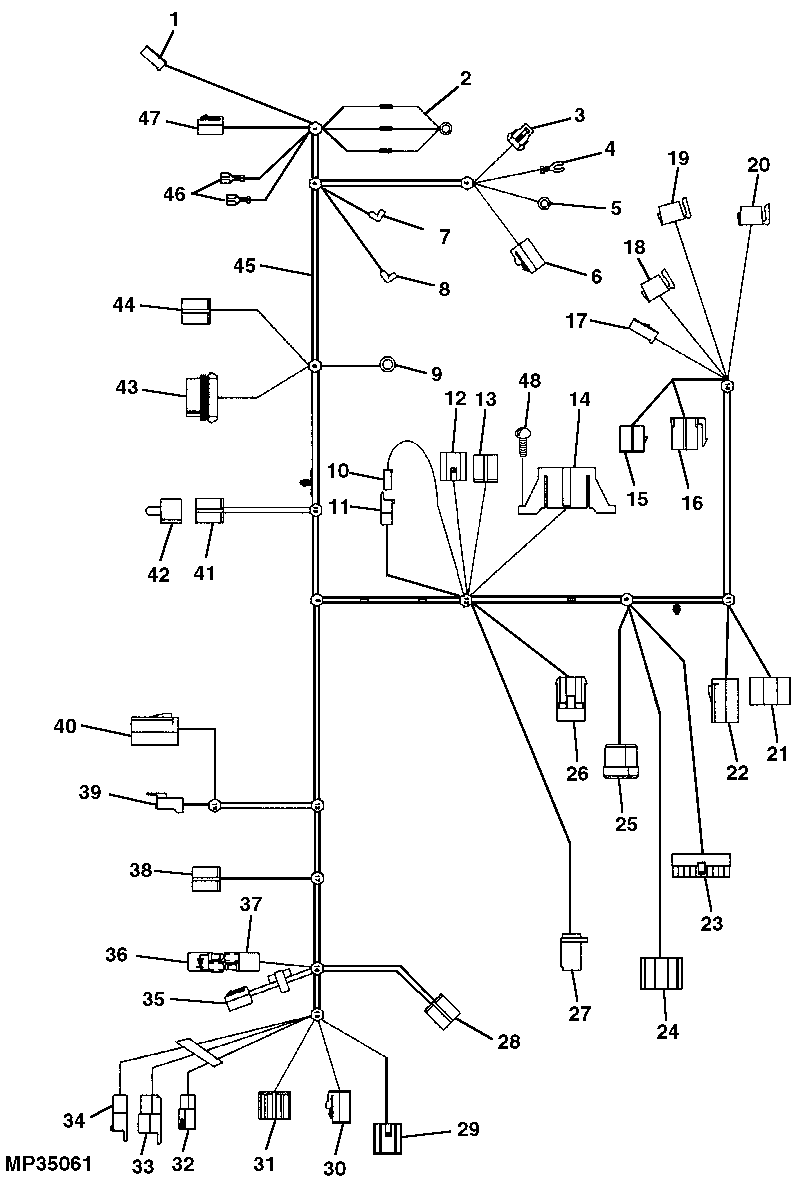

Main Wiring Harness (Export) (030001 - 040000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	STARTER SOLENOID
2	-	1	Part 2	FUSIBLE LINK
3	57M7254	1	Elec. Connector Housing	AIR RESTRICTION INDICATOR
4	-	1	Part 4	OIL PRESSURE SENSOR
5	-	1	Part 5	GLOW PLUG
6	AT262963	1	Electrical Connector Assy	FUEL SHUTOFF SOLENOID
7	-	1	Part 7	COOLANT TEMP. SWITCH
8	-	1	Part 8	COOLANT TEMP. SENSOR
9	-	1	Part 9	ENGINE GROUND
10	57M8815	1	Elec. Connector Housing	SUB FOR T28583
11	T28585	1	Electrical Connector Assy	-
12	M115613	1	Elec. Connector Terminal	REAR PTO
13	57M7328	1	Elec. Connector Housing	REAR PTO
14	T126786	1	Fuse Holder	-
15	M135517	1	Elec. Connector Terminal	NLA; Control Board
16	M135518	1	Electrical Connector Assy	NLA; Control Board
17	57M8815	1	Elec. Connector Housing	Battery Lead SUB FOR T28583
18	-	1	Part 18	PREHEAT RELAY
19	-	1	Part 19	OVERTEMP PTO CUTOUT RELAY
20	-	1	Part 20	PULL IN COIL RELAY
21	M133149	1	Electrical Connector Assy	PTO SWITCH
22	R77476	1	Electrical Connector Assy	HORN SWITCH, (SUB FOR 57M7144)
23	-	1	Part 23	DISPLAY PANEL
24	R77483	1	Electrical Connector Assy	LIGHT SWITCH
25	-	1	Part 25	TURN SIGNAL
26	57M7261	1	Elec. Connector Housing	DIESEL CONTROL MODULE
27	-	1	Part 27	FLASHER
28	M115613	1	Elec. Connector Terminal	RIO SWITCH
29	M135518	1	Electrical Connector Assy	NLA; Hazard Switch
30	R77476	1	Electrical Connector Assy	FUEL SENSOR, (SUB FOR 57M7144)
31	-	1	Part 31	REAR LIGHTS
32	T100454	1	Elec. Connector Housing	TRAILER
33	T28586	1	Electrical Connector Assy	TRAILER
34	T28585	1	Electrical Connector Assy	TRAILER
35	-	1	Part 35	-
36	AM122590	1	Diode	PTO
37	-	1	Part 37	PTO DIODE
38	-	1	Part 38	REAR PTO
39	57M7976	1	Electrical Connector Assy	SEAT
40	R77476	1	Electrical Connector Assy	LICENSE PLATE, (SUB FOR 57M7144)
41	T24167	1	Electrical Connector Assy	BRAKE SWITCH
42	AM128925	1	Switch	BRAKE
43	57M7261	1	Elec. Connector Housing	FRONT LIGHTS
44	T24167	1	Electrical Connector Assy	HOOD SWITCH
45	AM133611	1	Wiring Harness	-
46	-	2	Part 46	HORN
47	-	1	Part 47	ALTERNATOR
48	37M7091	2	Screw	M6 X 25

Main Wiring Harness (Export) (030001 - 040000)
