Открытый узел

Electric One-Touch Mulch Control Retrofit Kit, 48A inch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BUC10165	1	Kit	-
1	BUC10165	1	Kit	ALSO ORDER UC23446 AND AUC12098
1	BUC10714	1	Kit	Components On Seperate Page SUB FOR BUC10165
2	03M7184	4	Bolt	M8 X 20
3	14M7396	7	Lock Nut	M8
4	19M7862	1	Screw	M6 X 20
5	14M7397	3	Lock Nut	M6
6	AUC13837	1	Deflector	LH
7	M84309	2	Nut	-
8	AUC13839	1	Deflector	RH
9	AM144842	1	Deflector	Gate
10	M170776	1	Shaft	-
11	UC12766	1	Arm	-
12	UC12767	1	Bracket	Actuator
13	19M7866	2	Screw	M8 X 20
14	19M7867	2	Screw	M8 X 25
15	03M7232	2	Bolt	M6 X 25
16	24M7139	2	Washer	6.400 X 18 X 1.600 mm
17	UC12434	2	Bushing	-
18	UC12762	1	Arm	-
19	M178181	1	Extension Spring	-
20	M127673	3	Blade	-
21	AUC11807	1	Toggle/Rocker Switch	Mulch Control
22	M84972	1	Nut	-
23	19M7775	1	Screw	M6 X 16
24	UC12764	2	Pin	-
25	M112711	2	Pin	-
26	AUC13331	1	Actuator	-
27	AUC13613	1	Tie Band	-
28	AUC13330	1	Wiring Harness	-
29	57M7498	2	Elec. Connector Terminal	Cavity A, B
29	57M8809	1	Elec. Connector Terminal	Cavity C
29	T24167	1	Electrical Connector Assy	X18-1
30	M169838	2	Relay	12 V
31	57M8487	1	Electrical Connector Cap	-
32	R104570	1	Electrical Connector Assy	F01
32	R104571	2	Elec. Connector Terminal	Cavity A, B
33	57M11443	1	Fuse	7.5 A
34	57M7534	1	Elec. Connector Housing	Lift Actuator E01
34	57M7620	1	Electrical Connector Assy	-
34	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
35	57M14509	1	Elec. Connector Accessory	-
36	57M9219	10	Elec. Connector Seal	-
36	R78064	2	Elec. Connector Cavity Plug	Cavity 2, 5
36	57M7297	10	Elec. Connector Terminal	Cavity 1, 3, 4, 6-12
36	-	1	Part 43	Relay Center X90; INCLUDES 57M14509
37	57M10961	1	Elec. Connector Housing	Lift Actuator Switch S01
37	57M7511	4	Elec. Connector Terminal	Cavity 1-3, 7
38	T24166	1	Electrical Connector Assy	X18
38	57M9637	1	Elec. Connector Terminal	Cavity C
38	57M7499	2	Elec. Connector Terminal	Cavity A, B
39	AM144843	1	Deflector	Stop
40	57M9038	1	Elec. Connector Accessory	-
41	AH225366	1	Clip	-
42	T341375	1	Clip	-
43	57M7533	1	Elec. Connector Housing	-
44	AZ50831	1	Electrical Connector Assy	-
45	UC13077	1	Instrument Panel	Not Illustrated Components on Seperate Page
46	AUC12098	1	Chassis Wiring Harness	Not Illustrated Components on Seperate Page

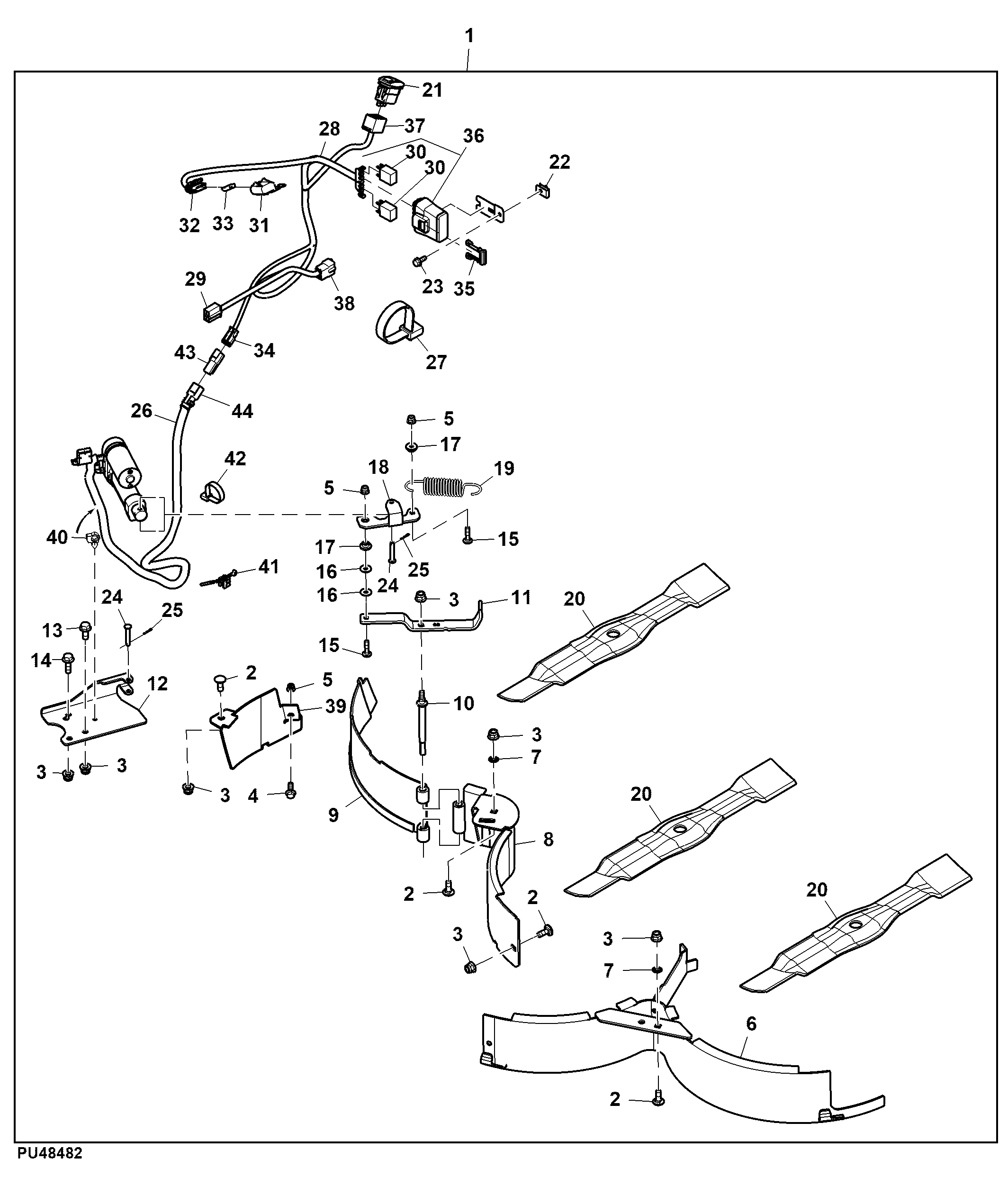

Electric One-Touch Mulch Control Retrofit Kit, 48A inch
