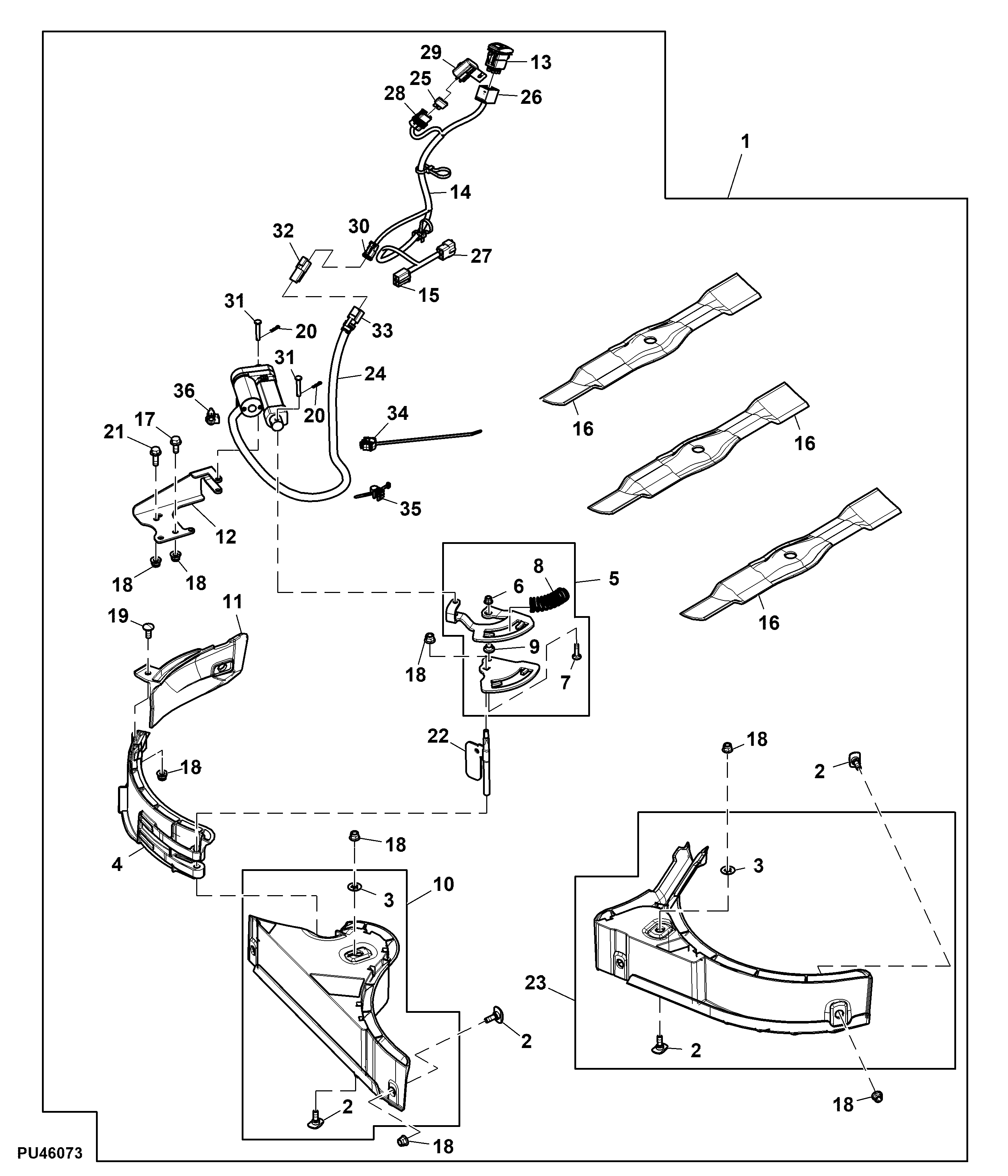

Electric One-Touch Mulch Control, Retrofit Kit, 54A inch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BUC10715	1	Kit	SUB FOR BUC10166
2	UC18596	7	Bolt	-
3	UC21506	2	Push Nut	-
4	UC18482	1	Deflector	Gate Control
5	AUC14923	1	Arm	-
6	14M7397	1	Lock Nut	M6
7	03M7232	1	Bolt	M6 X 25
8	UC21743	1	Compression Spring	-
9	UC26451	1	Bushing	-
10	AUC14712	1	Deflector Kit	RH
11	UC18483	1	Deflector	Discharge Control
12	UC21742	1	Bracket	Actuator
13	AUC15434	1	Toggle/Rocker Switch	Mulch Control
14	AUC15433	1	Wiring Harness	-
15	T24167	1	Electrical Connector Assy	X18-1
15	57M9461	2	Elec. Connector Terminal	Cavity A, B
15	57M9199	1	Elec. Connector Terminal	Cavity C
16	M177791	3	Mower Blade	-
17	19M7866	2	Screw	M8 X 20
18	14M7396	11	Lock Nut	M8
19	03M7184	1	Bolt	M8 X 20
20	M112711	2	Pin	-
21	19M7867	2	Screw	M8 X 25
22	AUC14619	1	Shaft	-
23	AUC14726	1	Deflector Kit	LH
24	AUC13331	1	Actuator	-
25	57M11443	1	Fuse	7.5 A
26	57M10961	1	Elec. Connector Housing	XS12
26	57M7880	2	Elec. Connector Terminal	Cavity 1, 3
26	57M7511	4	Elec. Connector Terminal	Cavity 2, 4, 5, 6
27	T24166	1	Electrical Connector Assy	X18
27	57M7499	2	Elec. Connector Terminal	Cavity A, B
27	57M9637	1	Elec. Connector Terminal	Cavity C
28	57M7579	2	Elec. Connector Terminal	Cavity A, B
28	57M8267	1	Elec. Connector Housing	XF10
29	57M8487	1	Electrical Connector Cap	-
30	57M10523	1	Elec. Connector Housing	XM4
30	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
30	57M7620	1	Electrical Connector Assy	-
31	UC12764	2	Pin	-
32	57M7533	1	Elec. Connector Housing	-
33	AZ50831	1	Electrical Connector Assy	-
34	T341375	1	Clip	-
35	AH225366	1	Clip	-
36	57M9038	1	Elec. Connector Accessory	-
