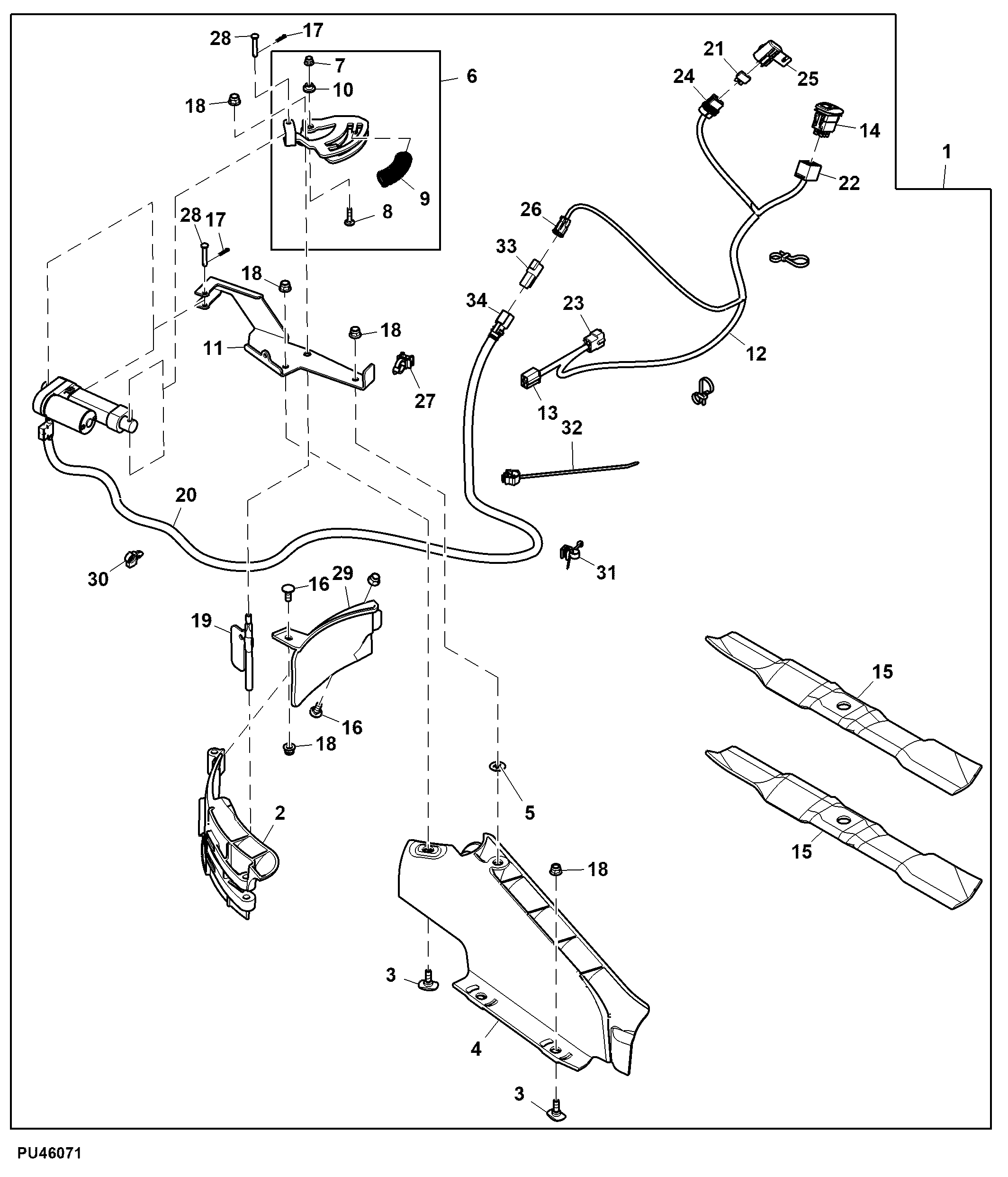

Electric One-Touch Mulch Control, Retrofit Kit, 42A inch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BUC10713	1	Kit	SUB FOR BUC10164
2	UC18688	1	Deflector	Gate Control
3	UC18596	4	Bolt	-
4	UC18687	1	Deflector	-
5	UC21506	1	Push Nut	-
6	AUC14922	1	Bracket	-
7	14M7397	1	Lock Nut	M6
8	03M7232	1	Bolt	M6 X 25
9	UC21743	1	Compression Spring	-
10	UC26451	1	Bushing	-
11	UC21221	1	Bracket	Actuator
12	AUC15433	1	Wiring Harness	-
13	T24167	1	Electrical Connector Assy	X18-1
13	57M9199	1	Elec. Connector Terminal	Cavity C
13	57M9461	2	Elec. Connector Terminal	Cavity A, B
14	AUC15434	1	Toggle/Rocker Switch	Mulch Control
15	M170642	2	Mower Blade	-
16	03M7184	2	Bolt	M8 X 20
17	M112711	2	Pin	-
18	14M7396	7	Lock Nut	M8
19	AUC14619	1	Shaft	-
20	AUC13331	1	Actuator	Mulch Control
21	57M11443	1	Fuse	7.5 A
22	57M10961	1	Elec. Connector Housing	XS12
22	57M7880	2	Elec. Connector Terminal	Cavity 1, 3
22	57M7511	4	Elec. Connector Terminal	Cavity 2, 4, 5, 6
23	T24166	1	Electrical Connector Assy	X18
23	57M7499	2	Elec. Connector Terminal	Cavity A, B
23	57M9637	1	Elec. Connector Terminal	Cavity C
24	57M8267	1	Elec. Connector Housing	XF10
24	57M7579	2	Elec. Connector Terminal	Cavity A, B
25	57M8487	1	Electrical Connector Cap	-
26	57M10523	1	Elec. Connector Housing	XM4
26	57M7620	1	Electrical Connector Assy	-
26	57M7546	2	Elec. Connector Terminal	Cavity 1, 2
27	57M11704	1	Clip Kit	-
28	UC12764	2	Pin	-
29	UC18689	1	Deflector	Discharge Control
30	57M9038	1	Elec. Connector Accessory	-
31	AH225366	1	Clip	-
32	T341375	1	Clip	-
33	57M7533	1	Elec. Connector Housing	-
34	AZ50831	1	Electrical Connector Assy	-

Electric One-Touch Mulch Control, Retrofit Kit, 42A inch

Нет текстового описания
