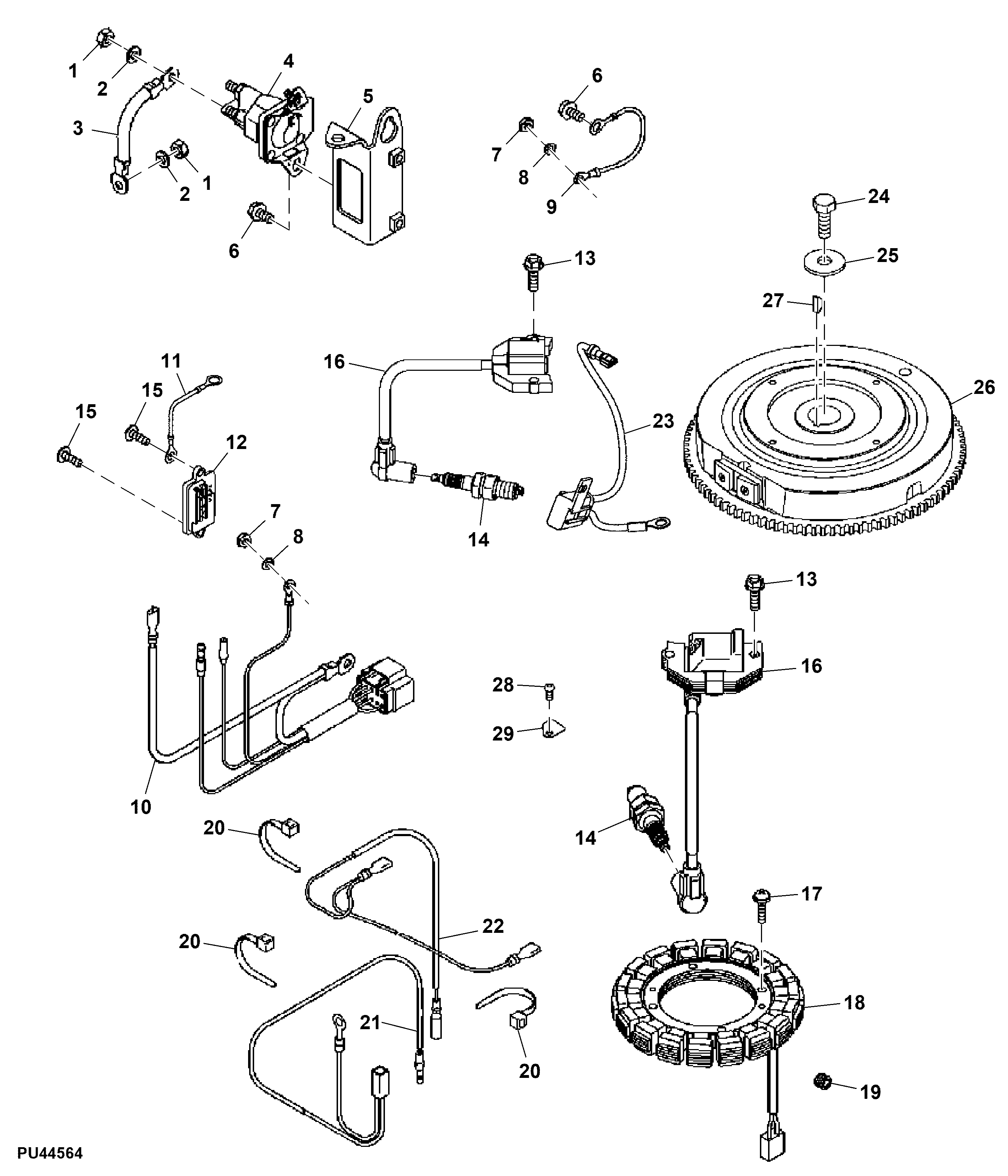

Ignition Coil and Voltage Regulator (For Canada and USA)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	MIU11951	2	Nut	-
2	12H302	2	Lock Washer	1/4"
3	MIU14472	1	Wiring Lead	-
4	MIU12537	1	Solenoid	-
5	MIU12533	1	Bracket	-
6	19M7774	2	Screw	M6 X 12, SUB FOR MIU11325
7	MIU10984	2	Nut	-
8	MIU10982	2	Washer	-
9	MIU11331	1	Wire	-
10	MIU11332	1	Wiring Harness	-
10	UC28820	1	Wiring Harness	-
11	M92721	1	Wire	-
12	MIU14478	1	Voltage Regulator	-
12	MIU13056	1	Voltage Regulator	-
13	19M7862	4	Screw	M6 X 20
14	M805853	2	Spark Plug	-
15	PT18321	2	Screw	-
16	UC21027	2	Ignition	Coil
16	UC11197	2	Ignition	Coil SUB FOR MIU14476
17	MIU11338	4	Screw	-
18	MIU10802	1	Electrical Coil	Charging
18	MIU13057	1	Electrical Coil	Charging
19	MIU14001	1	Plug	-
20	R44302	4	Tie Band	SUB FOR M140253
21	MIU12536	1	Wiring Harness	-
21	MIU12433	1	Wiring Harness	-
22	MIU12432	1	Wiring Harness	-
23	MIU14415	1	Wiring Harness	Regulator ORDER UC13163
23	UC13163	1	Wiring Harness	Regulator
24	M138449	1	Bolt	-
25	M138450	1	Washer	-
26	MIA11617	1	Flywheel	-
27	M77843	1	Shaft Key	-
28	M95848	1	Screw	-
29	MIU12429	1	Plate	-
30	MIA13212	1	Electrical Connector Assy	Not Illustrated 6 Pin Connector

Ignition Coil and Voltage Regulator (For Canada and USA)
