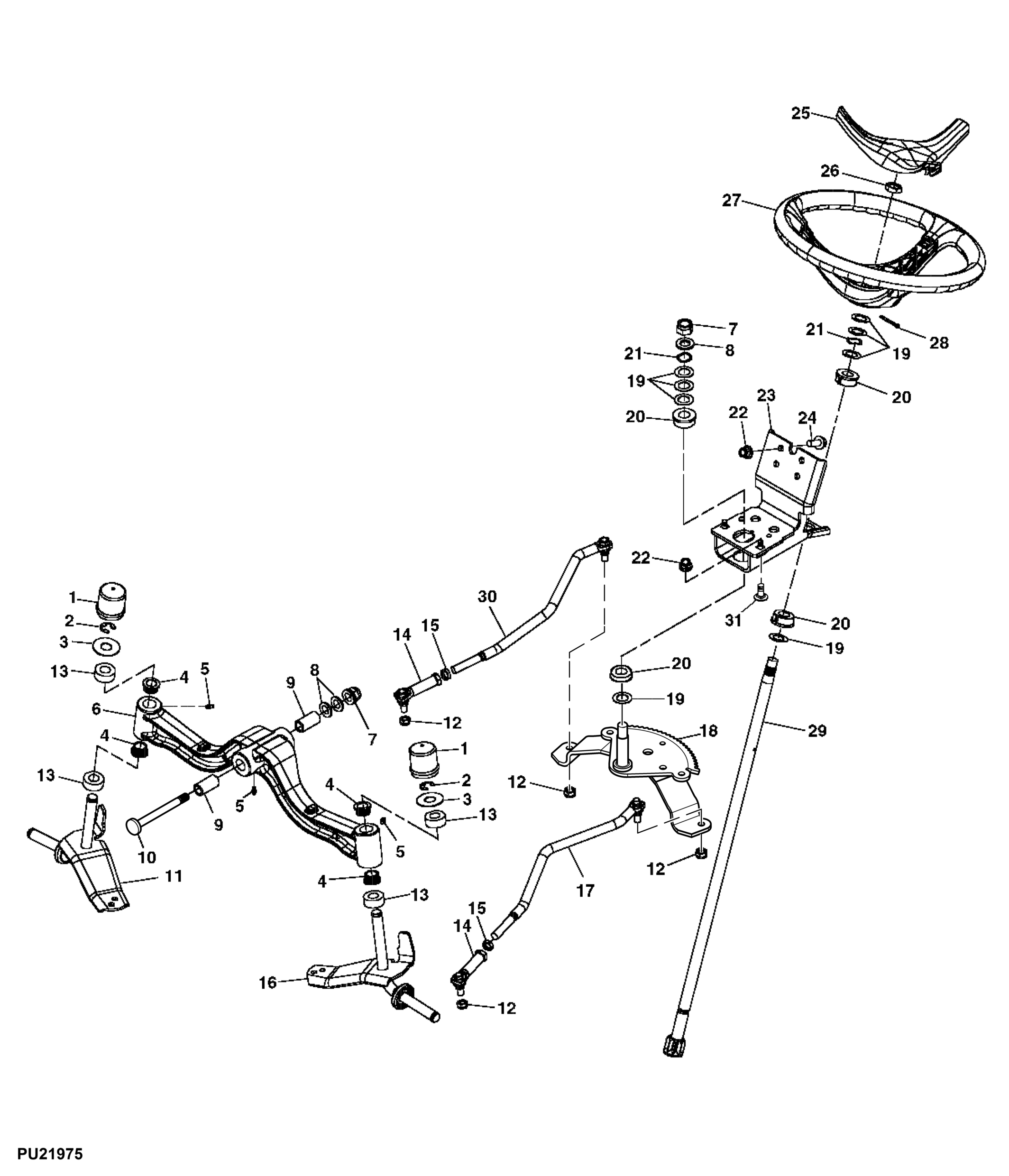

Steering Wheel and Front Axle (045000 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M151831	2	Cap	-
2	R27434	2	Snap Ring	-
3	24H1407	2	Washer	13/16" X 2" X 0.060"
4	M131407	4	Bearing	-
5	JD7844	3	Lubrication Fitting	-
6	AM135358	1	Front Axle	(SUB FOR M153716)(INCLUDES (3) JD7844, (4) M131407 AND (2) M153115)
7	14M7328	2	Lock Nut	M16
8	24M7053	4	Washer	17 X 30 X 3 mm
9	M153115	2	Bushing	-
10	M177742	1	Bolt	SUB FOR M151372
11	AM135682	1	Spindle	RH
11	AM140961	1	Spindle	-
11	AM137022	1	Spindle	ORDER AM140961; RH
12	14M7455	4	Lock Nut	M10
13	M151828	4	Bushing	-
13	M151828	2	Bushing	-
14	AM134795	2	Tie Rod End	NLA; ORDER AM137999
14	AM137999	2	Tie Rod End	-
15	14M7488	2	Nut	M14
16	AM135681	1	Spindle	LH
16	AM140960	1	Spindle	-
16	AM137021	1	Spindle	ORDER AM140960; LH
17	AM134803	1	Tie Rod Assembly	NLA; ORDER AM137992
17	AM137992	1	Tie Rod Assembly	LH
18	AM136297	1	Steering Gear	-
19	M41361	8	Washer	-
20	M151827	4	Bushing	-
21	M112504	2	Washer	-
22	14M7400	4	Lock Nut	M10
23	AM134493	1	Support	INCLUDES (2) 03M7276
24	19M7785	2	Screw	M10 X 25
25	M142219	1	Cover	-
26	M152147	1	Nut	M16
27	M142218	1	Steering Wheel	-
28	11M7023	1	Cotter Pin	4 X 32 mm
29	AM136428	1	Steering Shaft	-
30	AM134804	1	Tie Rod Assembly	NLA; ORDER AM137993
30	AM137993	1	Tie Rod Assembly	RH
31	03M7276	2	Bolt	M10 X 25

Steering Wheel and Front Axle (045000 - )
