Mower Timing Belt, Sheaves, Spindles and Blades (020001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7396	12	Lock Nut	M8
2	14M7401	1	Lock Nut	M12
3	AM130218	1	Cover	-
4	M141553	1	Rod	Secondary Tension
5	14M7415	1	Nut	M12
6	14M7299	2	Flange Nut	M12
7	24M7180	2	Washer	13 X 37 X 3 mm
8	M141561	1	Compression Spring	-
9	AM135349	2	Bearing With Housing	ORDER AM144377, SUB FOR AM124498 OR AM131680
10	AM144377	2	Spindle	ALSO ORDER M128503 AND JD7803
11	ET15755	2	Seal	-
12	AM115721	1	Bearing Kit	Spindle (Sub Components)
13	M128503	2	Spindle	-
14	M157142	2	Deflector	SUB FOR M131928
15	AM127890	1	Bolt	-
16	AM130172	1	Mower Blade Kit	-
17	14M7298	10	Flange Nut	M8
18	AM129605	1	Plate	LH
19	M150717	1	Synchronous Belt	SUB FOR M141558
20	19M7897	2	Screw	M8 X 35
21	M141549	2	Plate	Idler Support
22	M110316	4	Washer	-
23	AM129750	2	Chain Sprocket	Z=22
24	M141551	1	Spacer	-
25	24M7047	1	Washer	13 X 24 X 2.500 mm
26	JD7803	2	Lubrication Fitting	-
27	M131983	2	Nut	ORDER M153583
27	M153583	2	Nut	-
28	M133945	1	Washer	-
29	M128002	2	Drive Sprocket	Z=47
30	M128924	1	Pulley	-
31	M141893	2	Guide	-
32	M84309	2	Nut	-
33	M91252	2	Spacer	No Longer Used
34	03M7183	2	Bolt	M8 X 16
35	M141898	1	Plate	RH
36	03M7184	1	Bolt	M8 X 20
37	03M7216	4	Bolt	M8 X 50
38	24M7298	4	Washer	8.400 X 25 X 2 mm
39	03M7381	1	Bolt	M8 X 60
40	M143838	1	Clip	-
41	M134466	1	Label	-
42	M141555	1	Sleeve	-
43	19M7868	4	Screw	M8 X 30, SUB FOR M124998

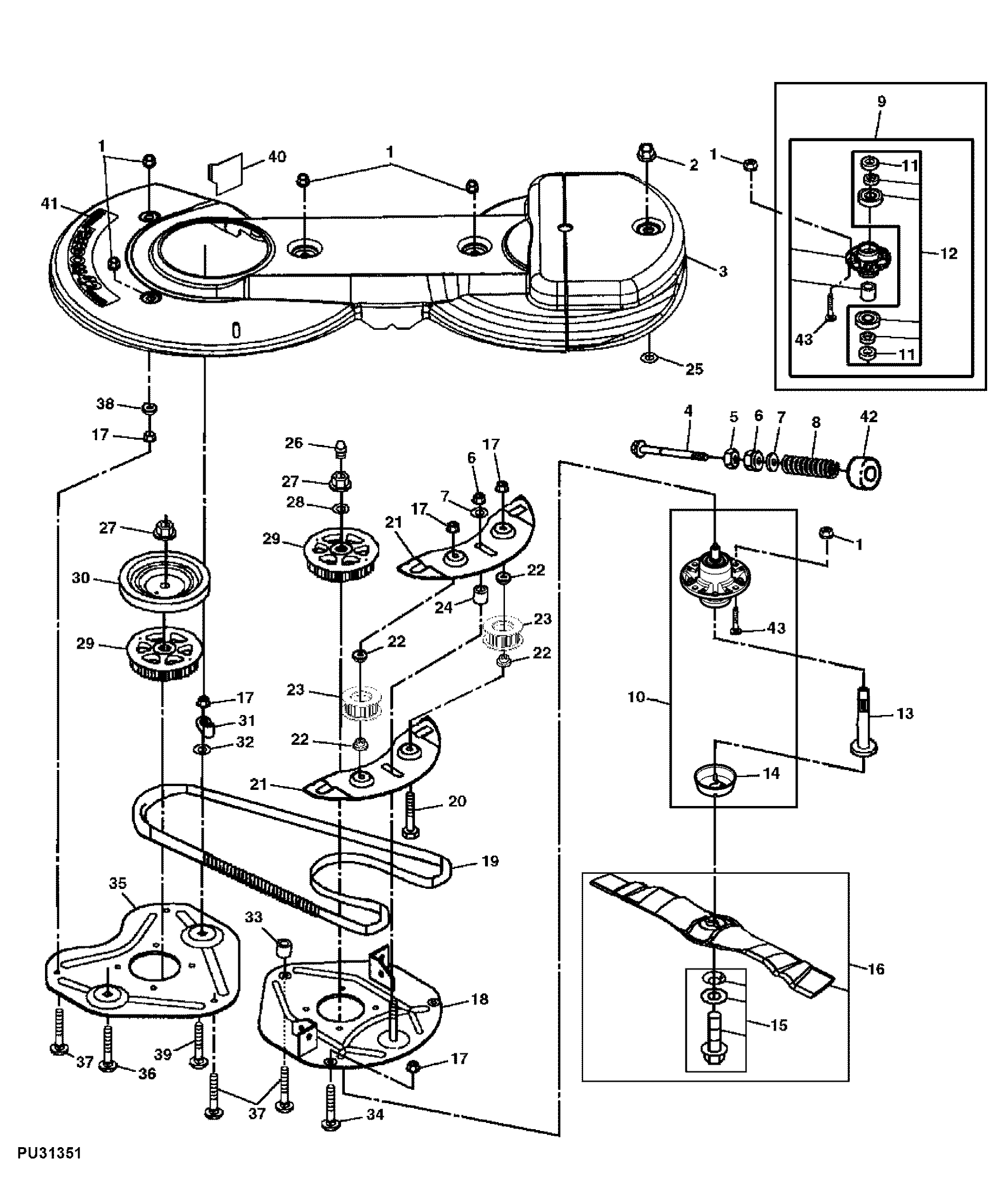

Mower Timing Belt, Sheaves, Spindles and Blades (020001 - )
