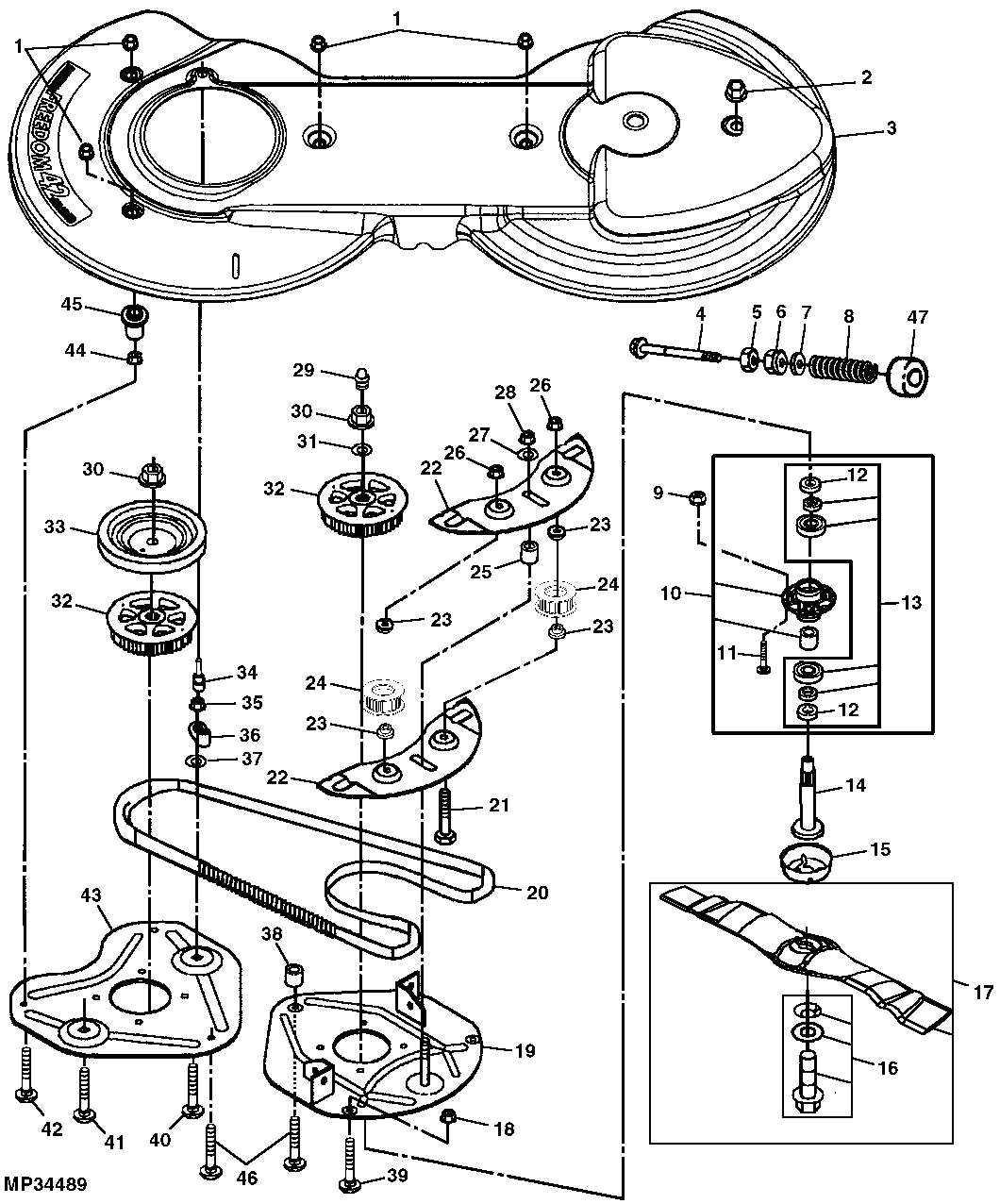

Mower Timing Belt, Sheaves, Spindles and Blades ( - 020000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	4	Flange Nut	M8
2	14M7401	1	Lock Nut	M12
3	AM130218	1	Cover	(SUB FOR AM129623)
4	M141553	1	Rod	SECONDARY TENSION
5	14M7415	1	Nut	M12
6	14M7299	1	Flange Nut	M12
7	24M7180	1	Washer	13 X 37 X 3 mm
8	M141561	1	Compression Spring	-
9	14M7396	8	Lock Nut	M8
10	AM135349	2	Bearing With Housing	(SUB FOR AM124498 OR AM131680)
11	19M7868	4	Screw	M8 X 30, (SUB FOR M124998)
12	ET15755	2	Seal	-
13	AM115721	1	Bearing Kit	SPINDLE (SUB COMPONENTS)
14	M128503	2	Spindle	-
15	M157142	2	Deflector	SUB FOR M131928
16	AM127890	1	Bolt	-
17	AM130172	1	Mower Blade Kit	(SUB FOR AM128013)
18	14M7298	2	Flange Nut	M8
19	AM129605	1	Plate	LH
20	M150717	1	Synchronous Belt	LGTH = 2000 mm, TK = 8 mm, WIDTH = 16 mm, SUB FOR M141558
21	19M7897	2	Screw	M8 X 35
22	M141549	2	Plate	IDLER SUPPORT
23	M110316	4	Washer	-
24	AM129750	2	Chain Sprocket	Z=22
25	M141551	1	Spacer	-
26	14M7298	2	Flange Nut	M8
27	24M7180	1	Washer	13 X 37 X 3 mm
28	14M7299	1	Flange Nut	M12
29	JD7849	2	Fitting	-
30	M131983	2	Nut	ORDER M153583
30	M153583	2	Nut	-
31	M133945	1	Washer	-
32	M128002	2	Drive Sprocket	Z=47
33	M128924	1	Pulley	-
34	M142347	1	Pin Fastener	-
35	14M7273	2	Nut	M8
36	M141893	2	Guide	-
37	M84309	2	Nut	-
38	M91252	2	Spacer	-
39	03M7183	2	Bolt	M8 X 16
40	03M7186	1	Bolt	M8 X 30
41	03M7184	1	Bolt	M8 X 20
42	03M7216	2	Bolt	M8 X 50
43	M141898	1	Plate	RH
44	14M7298	4	Flange Nut	M8
45	M141869	4	Spacer	-
46	03M7381	2	Bolt	M8 X 60
47	M141555	1	Sleeve	-
