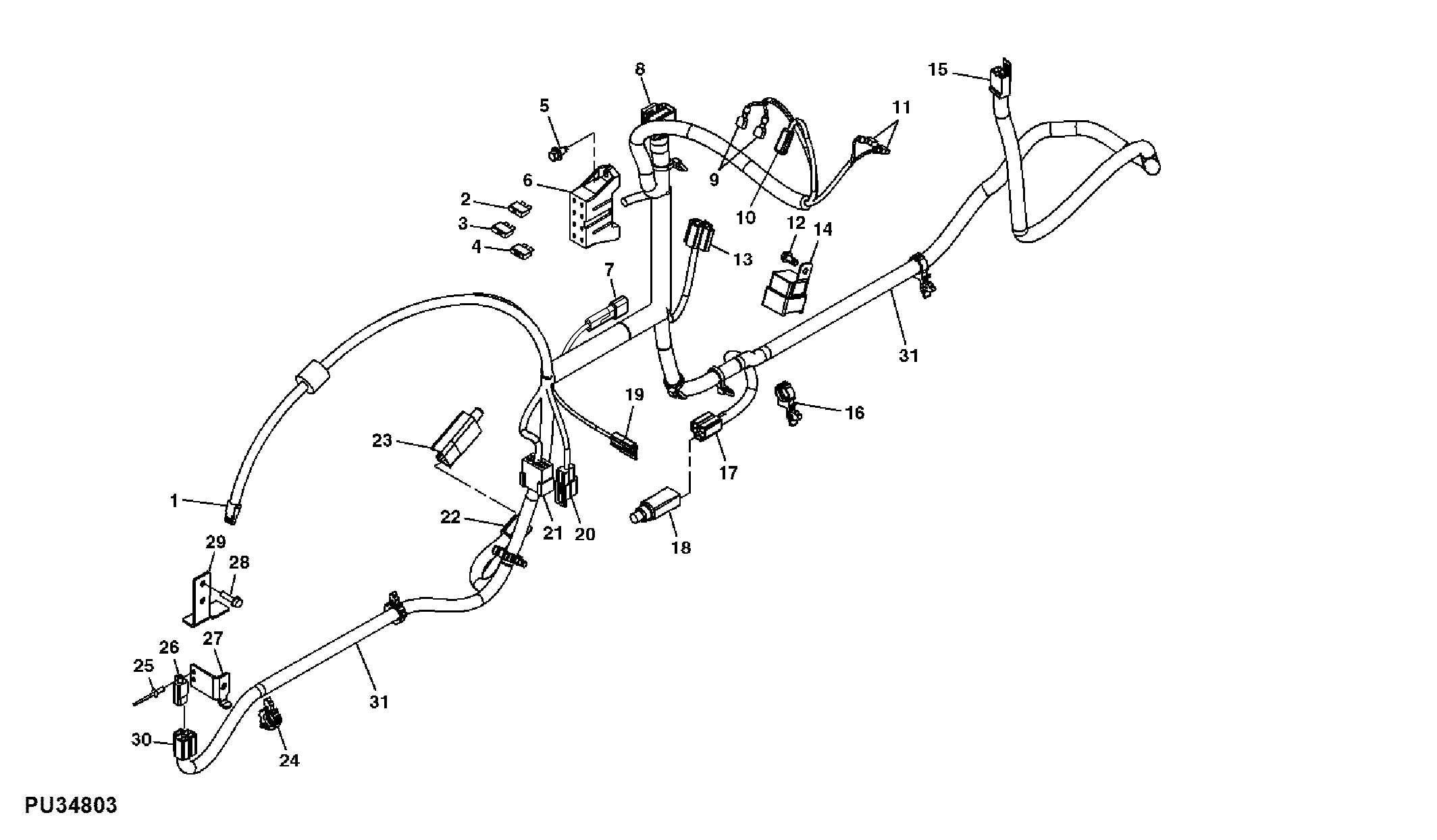

Wiring Harness (Export) (150001 - 220000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	Z40696	1	Socket	HEADLIGHT
2	99M7065	1	Fuse	-
3	57M7120	1	Fuse	-
4	99M7064	1	Fuse	-
5	37H94	2	Screw	0.216" X 1/2"
6	57M8828	1	Elec. Connector Accessory	-
7	AM122590	1	Diode	-
7	57M9618	1	Elec. Connector Terminal	-
7	57M9619	1	Elec. Connector Terminal	-
8	57M10112	1	Elec. Connector Housing	INSTRUMENT PANEL
9	-	1	Part 11	HORN
10	57M8812	1	Elec. Connector Housing	BACK UP ALARM
11	-	1	Part 13	HORN SWITCH
12	37M7458	1	Screw	M6 X 12
13	57M9497	1	Elec. Connector Housing	RELAY
14	AM106305	1	Relay	-
15	57M7974	1	Electrical Connector Assy	SEAT SWITCH
16	57M9647	1	Clip	-
17	M90206	1	Elec. Connector Terminal	REVERSE SWITCH
18	LVA13307	1	Switch	REVERSE
19	T28585	1	Electrical Connector Assy	GROUND
20	T28586	1	Electrical Connector Assy	PTO
21	57M9487	1	Elec. Connector Housing	(TO ENGINE)
22	M90206	1	Elec. Connector Terminal	BRAKE SWITCH
23	AMT469	1	Switch	BRAKE
24	57M9638	1	Clip	-
25	M67899	2	Rivet	-
26	AM128925	1	Switch	HOOD
27	M161242	1	Bracket	-
28	GX24487	2	Screw	SUB FOR M71217
29	M161244	1	Bracket	-
30	M90206	1	Elec. Connector Terminal	HOOD SWITCH
31	AM141045	1	Wiring Harness	-

Wiring Harness (Export) (150001 - 220000)
