Большое обновление пильных узлов

Смотреть

Открытый узел

Hopper Kit, Material Collection System, 2-Bag, 7 bushel (For Canada and USA)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BUC11233	1	Material Collection System	SUB FOR BM21679
1	BM21679	1	Material Collection System	-
2	M143104	1	Pin	-
3	M142970	1	Bolt	-
4	M142410	1	Latch	-
5	M142403	1	Channel	-
6	M139714	3	Rivet	SUB FOR M68628
7	M93527	2	Pin Fastener	-
8	14M7396	6	Lock Nut	M8
9	14M7397	9	Lock Nut	M6
10	21M7292	2	Screw	M6 X 16
11	21M7405	1	Screw	M6 X 40
12	24H1287	1	Washer	9/32" X 5/8" X 0.065"
13	M142350	1	Rod	-
14	21M7248	2	Screw	M6 X 30
15	M119007	2	Bag	Loose Weave Optional ORDER AM135486
15	AM135486	2	Bag	Loose Weave Optional
15	AM135485	2	Bag	Medium Density
15	M131405	2	Bag	Medium Density ORDER AM135485
16	M128407	2	Clip	ORDER M142497
16	M142497	2	Clip	-
17	14M7296	4	Flange Nut	M10
18	14M7465	1	Lock Nut	M10
19	19M7077	3	Cap Screw	M6 X 20
20	19M7785	4	Screw	M10 X 25
21	19M7799	2	Screw	M8 X 45
22	19M7814	2	Screw	M12 X 50
23	24M7053	2	Washer	17 X 30 X 3 mm
24	24M7178	2	Washer	10.500 X 30 X 2.500 mm
25	A15146	1	Pin	-
26	A15147	2	Spring Locking Pin	-
27	M131769	1	Pin	-
28	M133634	2	Pin	-
29	M150380	2	Spacer	-
30	M40461	1	Pin	-
31	M129038	1	Label	Warning French
32	M168092	1	Label	Warning Spanish
33	M169457	1	Label	Caution, No Text
34	M111717	3	Nut	-
35	M112711	4	Pin	-
36	M120609	1	Grille	-
37	M142321	1	Housing	-
38	M141911	1	Isolator	-
39	M141513	1	Cable	-
40	M123412	1	Hose	-
41	M121529	2	Pin Fastener	-
42	M155809	1	Chute	SUB FOR M121134
43	AM129832	1	Frame	Bag Support SUB FOR AM129832BLE
44	AM135812	1	Frame	Hopper ORDER AUC17701, SUB FOR AM135812BLE
44	AUC17701	1	Frame	Hopper
45	M153620	2	Bracket	-
46	M68628	3	Rivet	SUB FOR M139714
47	UC12571	2	Seal	SUB FOR M151209 OR M138180 OR M141910
48	24H1283	3	Washer	7/32" X 1/2" X 0.049"
49	M151187	1	Label	Warning Thrown Object
50	14M7401	2	Lock Nut	M12
51	19M7320	1	Cap Screw	M6 X 40
52	-	1	Part 58	ORDER AM121573
52	AUC17993	1	Kit	Hopper Top Components on Separate Page SUB FOR AM121573
53	-	1	Part 60	ORDER AM125269
53	AM125269	1	Frame Kit	Components on Separate Page
54	UC28093	1	Bracket	USE WITH AUC17701
55	24M7024	1	Washer	9 X 28 X 3 mm, USE WITH AUC17701
56	03M7185	3	Bolt	M8 X 25, USE WITH AUC17701

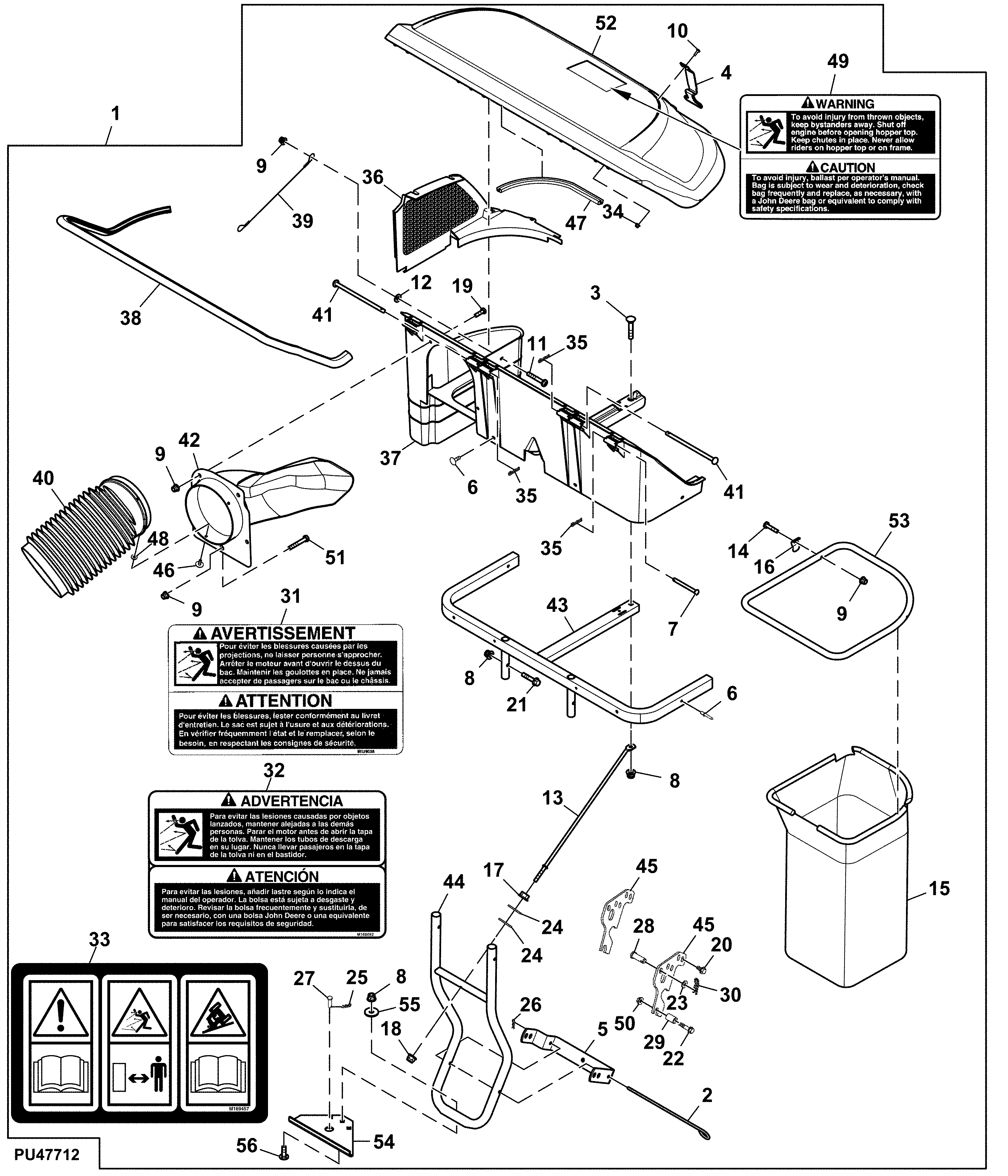

Hopper Kit, Material Collection System, 2-Bag, 7 bushel (For Canada and USA)
