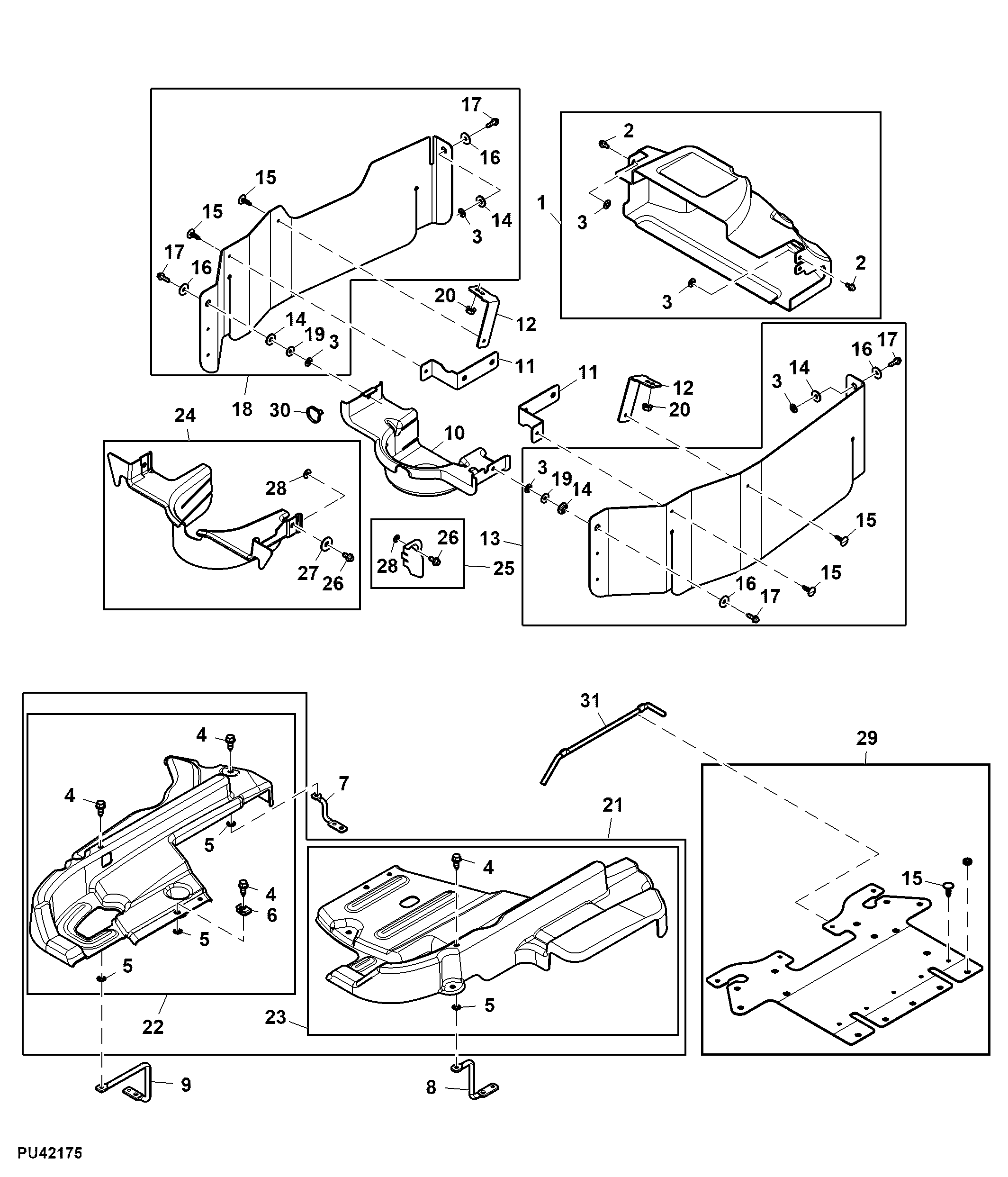

Shield Kits, 48C inch (Not for Canada and USA)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM140348	1	Shield Kit	Deck Rear INCLUDES (4) TCU22067
2	37M7458	4	Screw	M6 X 12
3	TCU22067	8	Push Nut	-
4	M159825	9	Screw	-
5	M84309	6	Nut	-
6	M123593	1	Lock Nut	-
7	M161176	1	Bracket	Deck Rear
8	M161177	1	Bracket	Deck LH
9	M161178	1	Bracket	Deck RH
10	M163527	1	Shield	Clutch
11	M160581	2	Bracket	Front Hanger
12	M160582	2	Bracket	Mid Hanger
13	AM141697	1	Shield Kit	INCLUDES (2) M132610, (2) M150273, (2) 24M7100, (2) 37M7459 AND (2) TCU22067; PTO Drive, LH
14	M132610	4	Bushing	-
15	M150273	11	Plug	-
16	24M7100	4	Washer	6.600 X 22 X 2 mm
17	37M7459	4	Screw	M6 X 20
18	AM141698	1	Shield Kit	INCLUDES (2) M132610, (2) M150273, (2) 24M7100, (2) 37M7459 AND (2) TCU22067; PTO Drive, RH
19	24M7139	2	Washer	6.400 X 18 X 1.600 mm
20	14M7298	2	Flange Nut	M8
21	AM141383	1	Shield Kit	ORDER AM141379 AND AM141378
22	AM141379	1	Shield Kit	Deck RH INCLUDES M159825 AND M84309
23	AM141378	1	Shield Kit	Deck LH INCLUDES M159825 AND M84309
24	AM148660	1	Shield	SUB FOR AM146247; Clutch
25	AM146943	2	Shield	Side
26	M167872	4	Screw	-
27	24M7260	2	Washer	8.400 X 24 X 2 mm
28	M175559	4	Push Nut	-
29	AM141723	1	Shield Kit	-
30	H77698	2	Tie Band	-
31	M163037	1	Bracket	-

Shield Kits, 48C inch (Not for Canada and USA)
