Chassis Wiring Harness (Not for Canada and USA) (250001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R77469	2	Elec. Connector Terminal	Cavity A,B
1	Z40696	1	Socket	J3F, Headlight
2	57M9487	1	Elec. Connector Housing	J2M, Engine
2	57M9488	1	Elec. Connector Terminal	Cavity 1
2	57M9489	3	Elec. Connector Terminal	Cavity 2,3,6
3	T28585	1	Electrical Connector Assy	J4F, Ground
3	57M7499	1	Elec. Connector Terminal	-
4	T28586	1	Electrical Connector Assy	K1, Clutch PTO
4	T34067	2	Elec. Connector Terminal	Cavity A,B
5	M90206	1	Elec. Connector Terminal	SW3, Reverse
5	57M8810	3	Elec. Connector Terminal	Cavity B,C,D
5	57M9632	1	Elec. Connector Terminal	Cavity E
6	57M10111	1	Elec. Connector Terminal	Cavity A
6	57M10110	3	Elec. Connector Terminal	Cavity F,G,M
6	57M10113	8	Elec. Connector Terminal	Cavity B,C,D,E,H,J,K,L
6	57M10112	1	Elec. Connector Housing	J5AF
7	T24167	1	Electrical Connector Assy	J7F
7	57M8810	3	Elec. Connector Terminal	Cavity A,B,C
8	M162028	1	Electrical Load Center	FB1, Fuse Block
8	57M7590	8	Elec. Connector Terminal	Cavity A5,B5,B6,B7,C6,D5,D6
8	R104921	6	Elec. Connector Terminal	Cavity A6,A7,B9,D3,D4
8	M163189	1	Elec. Connector Accessory	Cavity B8
9	57M7974	1	Electrical Connector Assy	SW1, Seat Switch
9	57M8810	3	Elec. Connector Terminal	Cavity A,B
10	57M7254	1	Elec. Connector Housing	SW10, Low Fuel Switch
10	R104846	2	Elec. Connector Terminal	Cavity A,B
10	57M9712	1	Elec. Connector Accessory	-
11	LVA13307	1	Switch	Reverse
12	AMT469	1	Switch	Brake
13	37M7467	2	Screw	M5 X 12
14	AM128925	1	Switch	Plunger Switch
15	AM142135	1	Chassis Wiring Harness	-
16	57M7690	1	Fuse	15 A
17	57M7691	1	Fuse	20 A
18	57M8638	1	Fuse	7.5 A
19	57M9638	3	Clip	-
20	57M9647	2	Clip	-
21	57M9880	1	Relay	NLA; ORDER M169838
21	M169838	1	Relay	-
22	M162029	1	Cover	Load Center
23	RE180265	1	Diode	-
24	57M7689	1	Fuse	10 A
25	GY20680	1	Key	-
26	M90206	1	Elec. Connector Terminal	SW5, Brake Switch
26	57M8810	4	Elec. Connector Terminal	Cavity B,C,D,E
27	M90206	1	Elec. Connector Terminal	SW12, Hood
27	57M8810	3	Elec. Connector Terminal	Cavity B,D,E
27	57M9632	1	Elec. Connector Terminal	Cavity C

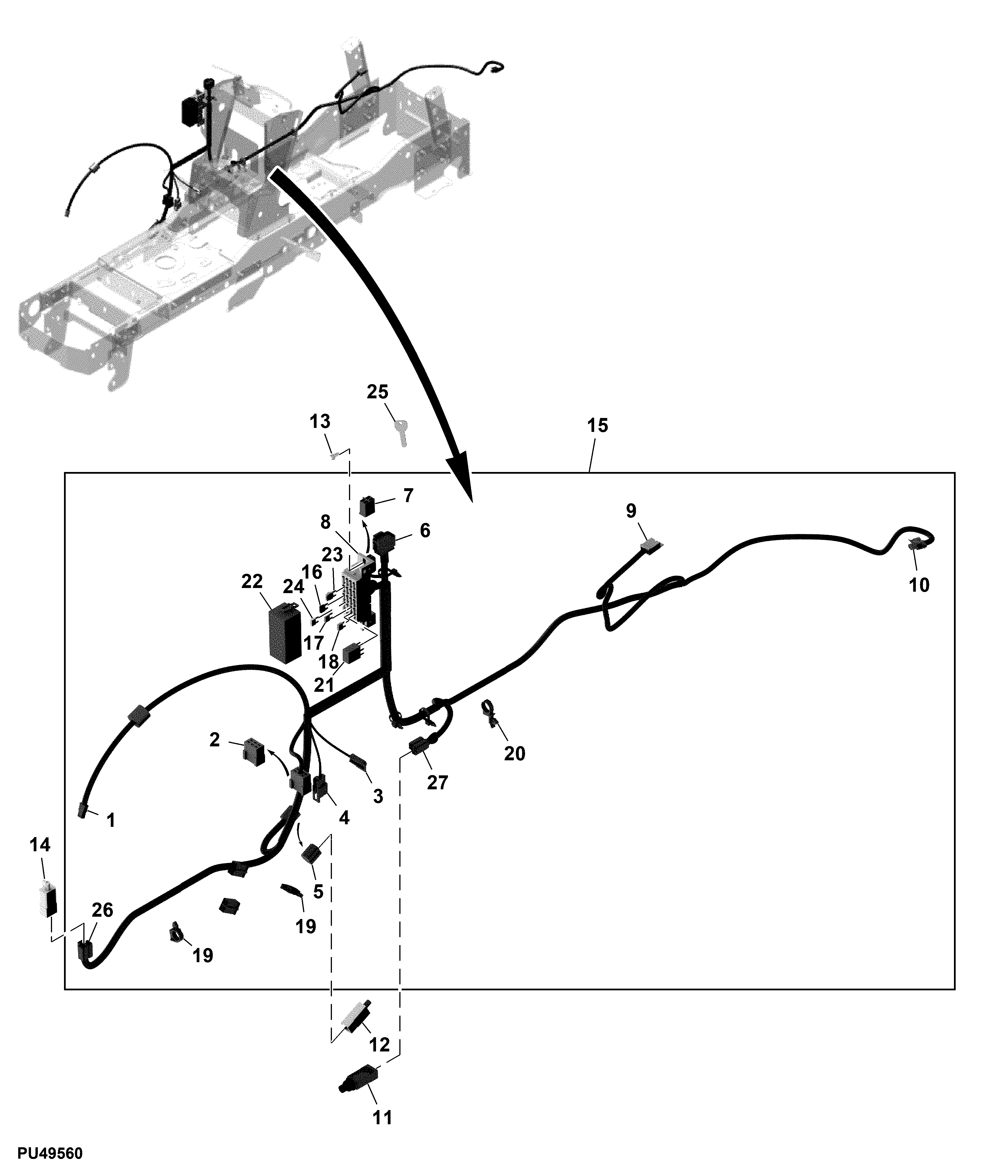

Chassis Wiring Harness (Not for Canada and USA) (250001 - )
