Открытый узел

Wiring Harness, Front

Wiring Harness, Front

Wiring Harness, Front

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Wiring Harness, Front

Нет текстового описания

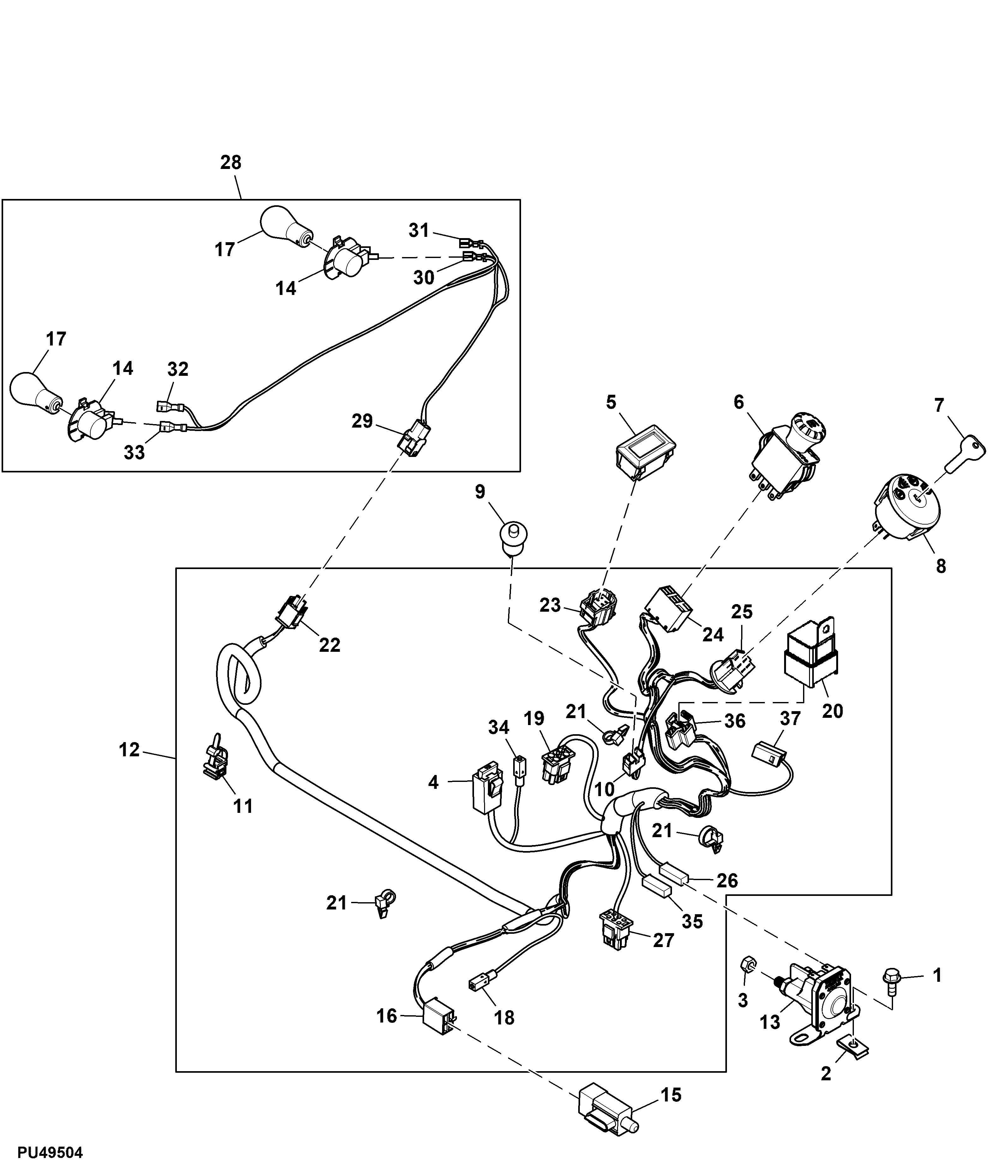

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7775	1	Screw	M6 X 16
2	GX23794	1	Nut	-
3	14H786	3	Nut	1/4"
4	57M8829	1	Elec. Connector Accessory	Fuse Holder C08
4	57M7120	1	Fuse	20A
4	T126788	1	Elec. Connector Terminal	Cavity A
4	57M11037	1	Elec. Connector Terminal	Cavity B
4	57M9413	1	Clip	-
4	M172976	1	Clip	-
5	GY21005	1	Hour Meter	-
5	GY21720	1	Hour Meter	SUB FOR GY21525, GY21648 OR GY21573
6	AUC10632	1	Push Switch	SUB FOR AM131966 OR GY20939; PTO
7	GY20680	1	Key	-
8	GY20074	1	Rotary Switch	Ignition
9	AM124734	1	Switch	Push Button, Yellow
10	57M11587	1	Elec. Connector Housing	Rio Latch C02
10	57M11588	2	Elec. Connector Terminal	Cavity 1, 2
11	57M9229	1	Clip	-
12	GY21295	1	Wiring Harness	6 Pin; Front
12	GY21479	1	Wiring Harness	6 Pin; Front
12	GY21705	1	Wiring Harness	9 Pin; Europe, Front
12	GY21703	1	Wiring Harness	9 Pin; Europe, Front
12	GY22441	1	Wiring Harness	SUB FOR GY22235; 9 Pin
13	AUC15346	1	Solenoid	SUB FOR GY22476 OR AM138068
14	AM121594	2	Socket	-
15	GY20094	1	Switch	Brake
16	T24167	1	Electrical Connector Assy	C04, USE WITH GY22441, GY21703 OR GY21295; Brake Switch
16	T24167	2	Electrical Connector Assy	C04, USE WITH GY21705 OR GY21479; Brake Switch, Hood Switch
17	AD2062R	2	Bulb	27 W
18	57M9484	1	Elec. Connector Terminal	Cavity 1
18	57M11033	1	Elec. Connector Housing	Ground C15
19	57M9364	1	Elec. Connector Housing	Engine C07
19	57M9484	4	Elec. Connector Terminal	Cavity 1-4
20	GY20437	1	Relay	-
21	57M11713	4	Elec. Connector Accessory	-
22	-	1	Part 36	Head Lights C05
22	57M9484	2	Elec. Connector Terminal	Cavity A, B
23	-	1	Part 38	Hour Meter C01, USE WITH GY21479, GY21703, GY21705 OR GY22441
23	57M9480	1	Elec. Connector Housing	Hour Meter C01, USE WITH GY21295
23	57M9481	4	Elec. Connector Terminal	Cavity 1-4
24	57M10771	1	Elec. Connector Housing	PTO Switch C14
25	-	1	Part 42	Ignition Switch C10
26	57M11691	1	Elec. Connector Housing	Start Solenoid C06
27	-	1	Part 44	Rear Harness C11
27	57M11042	5	Elec. Connector Terminal	Cavity 1, 3-6, USE WITH GY21479 OR GY21295
27	57M11042	7	Elec. Connector Terminal	Cavity 1, 3-8, USE WITH GY21703, GY21705 OR GY22441
28	GY21294	1	Wiring Harness	Headlight
29	-	1	Part 48	C01
30	-	1	Part 49	CO3
31	-	1	Part 50	CO2
32	-	1	Part 51	CO5
33	-	1	Part 52	CO4
34	57M11033	1	Elec. Connector Housing	C09
34	57M9484	1	Elec. Connector Terminal	Cavity 1
35	57M11691	1	Elec. Connector Housing	Start Solenoid C12
36	-	1	Part 56	Relay C13
37	R77476	1	Electrical Connector Assy	Power Port C03
