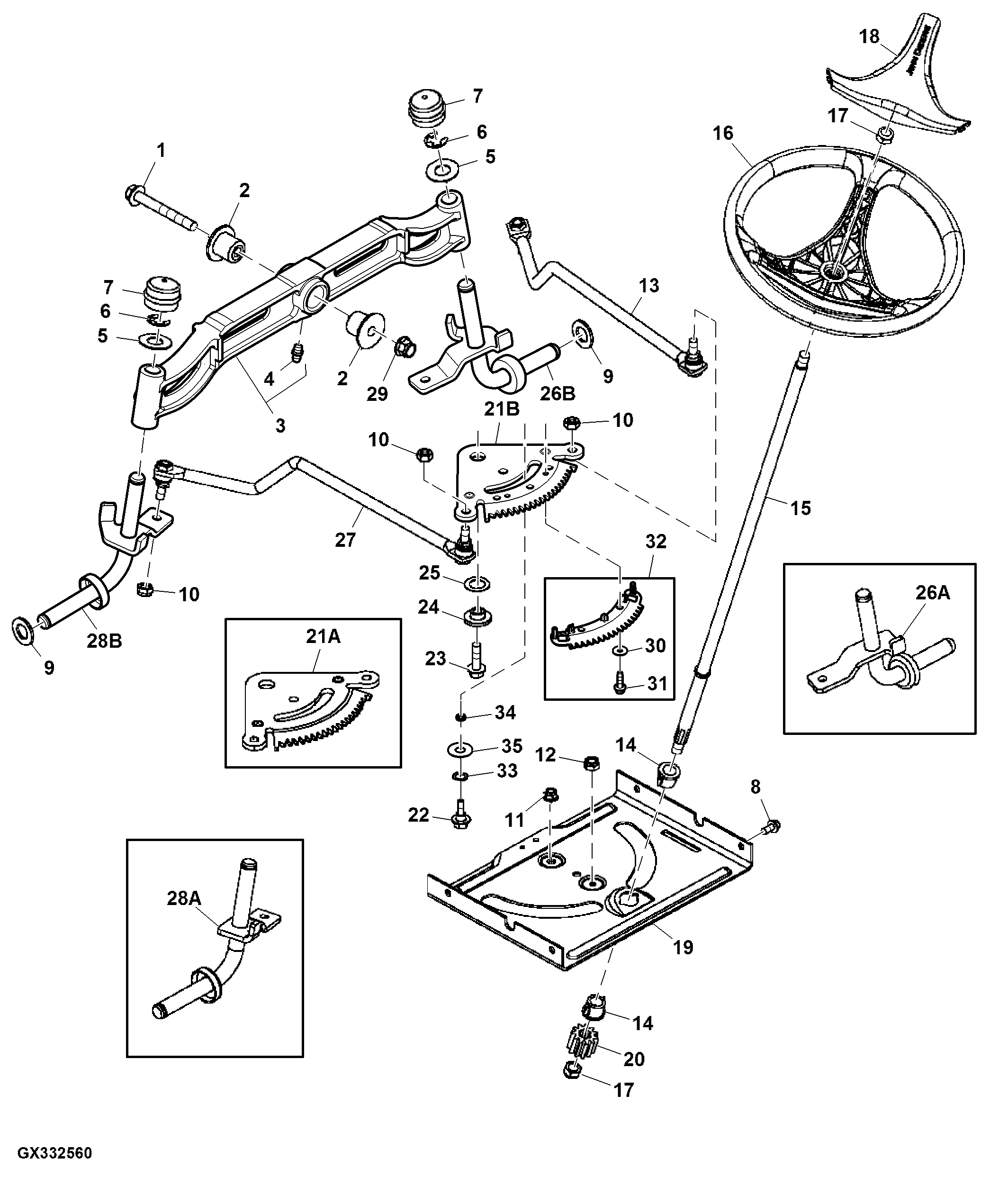

Steering Wheel, Gears, Linkage And Front Axle (For Export) ( - 700000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7820	1	Screw	M12 X 100
2	GX21791	2	Bushing	Axle Pivot
3	GY21387	1	Axle	SUB FOR GY21387BLE; Cast Assembly
4	JD7844	3	Lubrication Fitting	-
5	M123254	2	Washer	-
6	R27434	2	Snap Ring	-
7	M128102	2	Cap	Wheel Spindle
8	GX22456	4	Screw	-
9	Z9972H	2	Washer	-
10	14M7455	4	Lock Nut	M10
11	14M7465	1	Lock Nut	M10
12	14M7396	1	Lock Nut	M8
13	GY21251	1	Drag Link	RH, Adjustable
14	GX21994	2	Bushing	-
15	GX20059	1	Universal Driveshaft	Steering Wheel
16	GY22529	1	Steering Wheel	SUB FOR GY21194
17	B30963	2	Lock Nut	-
18	M142219	1	Cover	Steering Wheel
19	GX23276	1	Plate	SUB FOR GX23276BLE; Steering Support
20	GX20053	1	Gear	-
22	M153513	1	Screw	-
23	19M7835	1	Screw	M10 X 35
24	UC13360	1	Bushing	SUB FOR GX20054; Sector Pivot
25	UC13623	1	Washer	-
27	GY21250	1	Drag Link	LH, Adjustable
29	14M7401	1	Lock Nut	M12
30	24M7139	2	Washer	6.400 X 18 X 1.600 mm
31	37M7459	2	Screw	M6 X 20
32	GY22233	1	Pad	Sector
33	UC13624	1	Washer	-
34	R48517	1	Washer	-
35	E35778	1	Washer	-
21A	GX21924BLE	1	Gear	Steering Sector
21B	GX25785	1	Gear	SUB FOR GX25785BLE; Sector Black
26A	GY21050BLE	1	Spindle	ORDER GY22251; SUB FOR GY20790BLE; RH
26B	GY22251	1	Spindle	RH
28A	GY21049BLE	1	Spindle	ORDER GY22252; SUB FOR GY20789BLE; LH
28B	GY22252	1	Spindle	LH

Steering Wheel, Gears, Linkage And Front Axle (For Export) ( - 700000)
