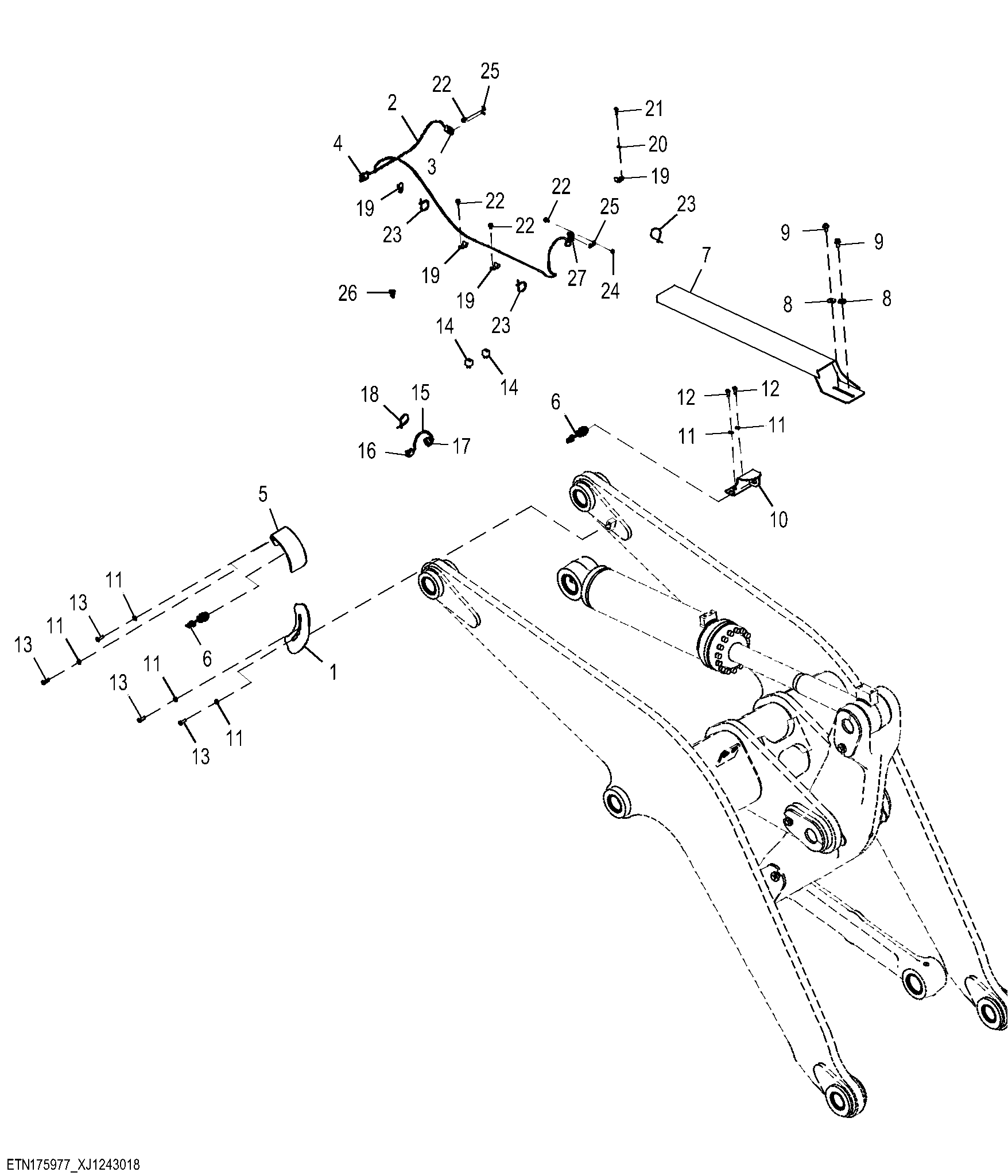

Return-to-Dig, High Lift (100080 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T357757	1	Actuator	-
2	AT478194	1	Wiring Harness	BHK / RTD Harness, INCLUDES (2) 57M9004 AND R78055
3	R78061	3	Elec. Connector Terminal	-
3	57M9218	3	Elec. Connector Seal	-
3	57M9004	1	Elec. Connector Housing	Boom Height Kick Out, S11
4	R78055	1	Electrical Connector Assy	To Loader Frame Harness, X03
4	R78061	4	Elec. Connector Terminal	-
4	57M9218	4	Elec. Connector Seal	-
5	AT418553	1	Bracket	-
6	AT409544	2	Sensor	Position Sensor
7	AT477924	1	Actuator	-
8	24M7180	2	Washer	13 X 37 X 3 mm
9	19M7788	2	Screw	M12 X 25
10	AT491750	1	Bracket	SUB FOR AT477923
11	24M7239	6	Washer	10.700 X 21 X 2.500 mm
12	19M7402	2	Cap Screw	M10 X 25
13	19M7662	4	Cap Screw	M10 X 30
14	AT432543	2	Relay	24 V
15	AT437288	1	Wiring Harness	BHK Jumper Harness, INCLUDES 57M8010 AND 57M7631
16	57M7679	1	Elec. Connector Terminal	-
16	57M7546	8	Elec. Connector Terminal	-
16	57M8010	1	Electrical Connector Assy	To Joystick, A
17	57M7631	1	Elec. Connector Housing	To Harness, B
17	57M7680	1	Elec. Connector Terminal	-
17	57M8164	7	Elec. Connector Terminal	-
17	R78069	1	Elec. Connector Cavity Plug	-
18	R44302	1	Tie Band	-
19	T325025	4	Clamp	-
20	24M7238	1	Washer	8.700 X 17 X 2 mm
21	19M7407	1	Cap Screw	M8 X 25
22	19M7865	4	Screw	M8 X 16
23	T364904	4	Tie Band	-
24	14M7273	1	Nut	M8
25	57M12934	2	Elec. Connector Accessory	-
26	T411828	1	Clamp	-
27	57M9004	1	Elec. Connector Housing	Return to Dig

Return-to-Dig, High Lift (100080 - )
