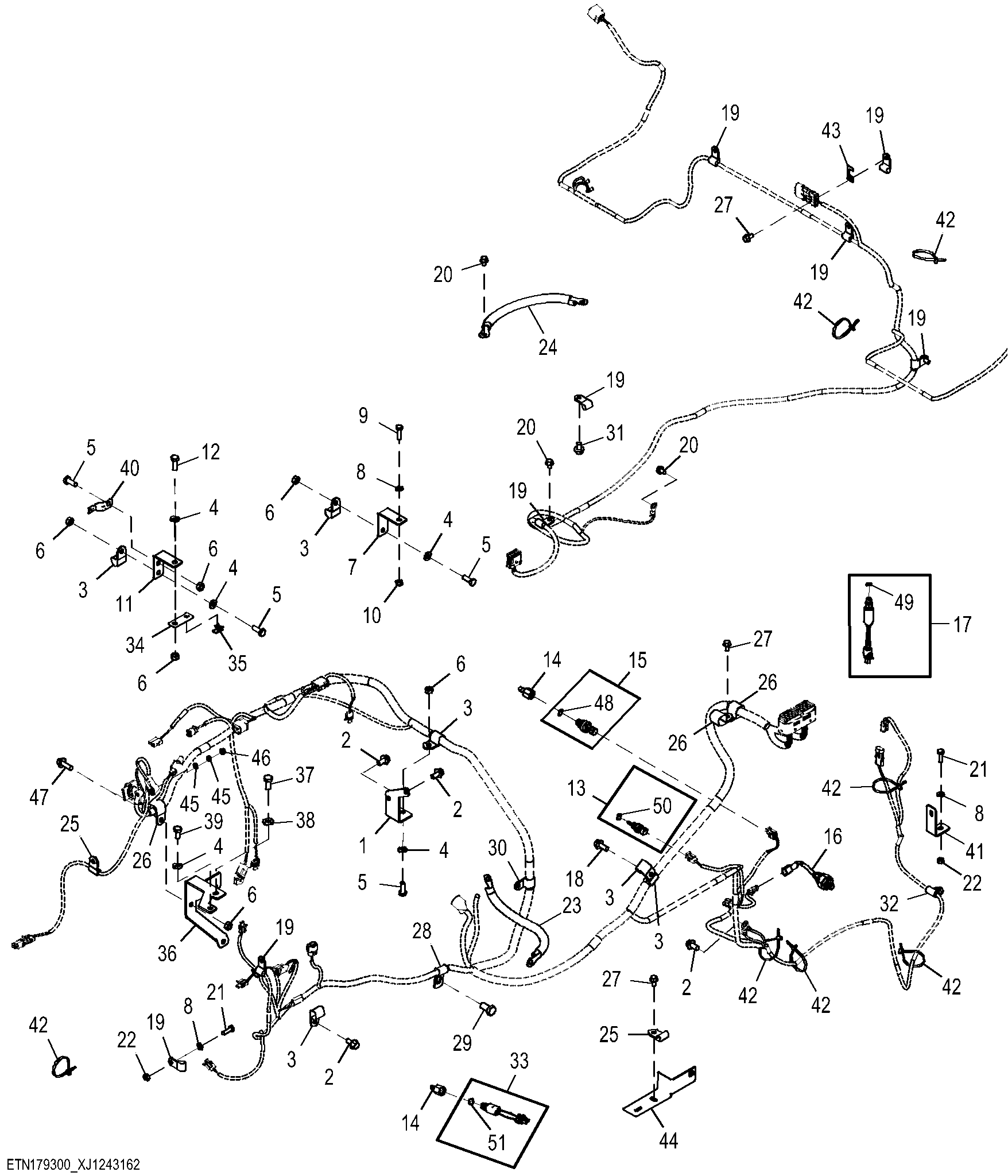

Main Wiring Harness Hardware Components (100080 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T291717	1	Bracket	-
2	19M7784	7	Screw	M10 X 20
3	T318515	6	Clamp	-
4	24M7239	5	Washer	10.700 X 21 X 2.500 mm
5	19M7167	4	Cap Screw	M10 X 25
6	14M7274	6	Nut	M10
7	T317035	1	Bracket	-
8	24M7238	3	Washer	8.700 X 17 X 2 mm
9	19M7513	1	Cap Screw	M8 X 30
10	14M7298	2	Flange Nut	M8
11	T393391	1	Bracket	-
12	19M7168	1	Cap Screw	M10 X 30
13	AT410041	1	Temperature Sensor	-
14	T337498	2	Adapter	-
15	AT429455	1	Trans Oil Pressure Sensor	-
16	AT430490	1	Switch	Neutral Start Position, INCLUDES AT435261
16	AT435261	1	Electrical Connector Assy	-
17	AT409992	1	Pressure Switch	Brake Accumulator Pressure Switch
18	19M7785	1	Screw	M10 X 25
19	T325025	11	Clamp	-
20	19M9446	3	Screw	M8 X 12
21	19M7407	2	Cap Screw	M8 X 25
22	14M7273	2	Nut	M8
23	AT419874	1	Ground Cable	-
24	AT419874	1	Ground Cable	-
25	T325024	2	Clamp	-
26	T325023	3	Clamp	-
27	19M7865	7	Screw	M8 X 16
28	T342939	1	Clamp	-
29	19M7646	1	Cap Screw	M14 X 25
30	T318512	1	Clamp	-
31	19M7783	1	Screw	M10 X 16
32	T354048	1	Clamp	-
33	AT409993	1	Pressure Switch	Brake Light Pressure Switch
34	T379681	1	Bracket	-
35	T342683	1	Clamp	-
36	T379676	1	Bracket	-
37	19M7872	1	Cap Screw	M12 X 25
38	24M7240	1	Washer	13 X 25 X 3 mm
39	19M7938	1	Cap Screw	M10 X 20
40	57M8736	1	Elec. Connector Accessory	-
41	T379680	1	Bracket	-
42	T364904	1	Tie Band	-
43	57M12934	1	Elec. Connector Accessory	-
44	T401699	1	Bracket	-
45	24M7293	2	Washer	6.500 X 13 X 1.600 mm
46	14M7303	1	Flange Nut	M6
47	19M7786	1	Screw	M10 X 30
48	51M7095	1	O-Ring	11.300 X 2.200 mm
49	51M7040	1	O-Ring	9.300 X 2.200 mm
50	51M7095	1	O-Ring	11.300 X 2.200 mm
51	51M7095	1	O-Ring	11.300 X 2.200 mm

Main Wiring Harness Hardware Components (100080 - )
