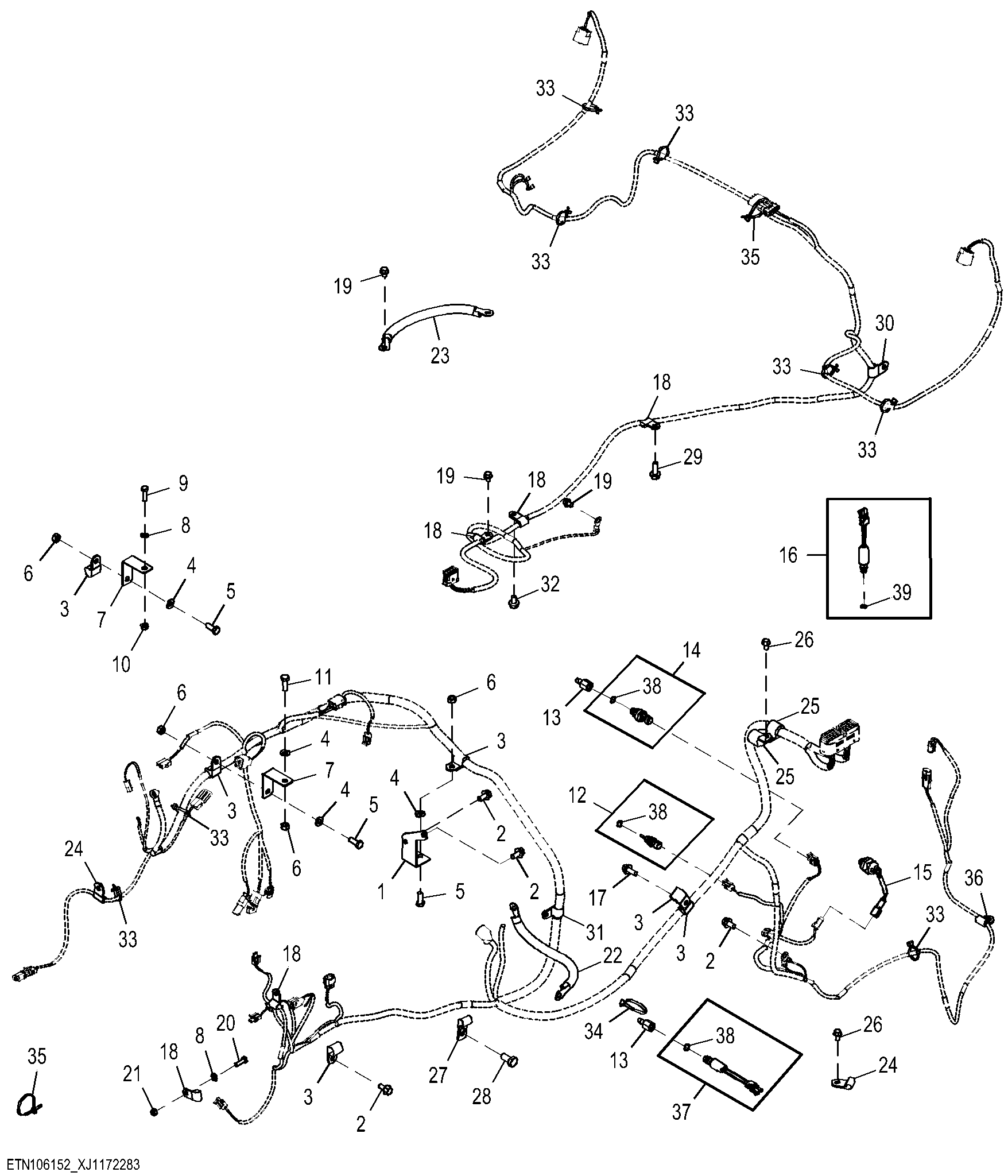

Main Wiring Harness Hardware Components ( - 100031)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T291717	1	Bracket	-
2	19M7784	6	Screw	M10 X 20
3	T318515	6	Clamp	-
4	24M7239	4	Washer	10.700 X 21 X 2.500 mm
5	19M7167	3	Cap Screw	M10 X 25
6	14M7274	4	Nut	M10
7	T317035	2	Bracket	-
8	24M7238	2	Washer	8.700 X 17 X 2 mm
9	19M7513	1	Cap Screw	M8 X 30
10	14M7298	1	Flange Nut	M8
11	19M7168	1	Cap Screw	M10 X 30
12	AT410041	1	Temperature Sensor	-
13	T337498	2	Adapter	To Control Valve
14	AT429455	1	Trans Oil Pressure Sensor	-
15	AT430490	1	Switch	Neutral Start Postion, INCLUDES AT435261
15	AT435261	1	Electrical Connector Assy	-
16	AT409992	1	Pressure Switch	To Brake Accumulator
17	19M7785	1	Screw	M10 X 25
18	T325025	6	Clamp	-
19	19M9446	3	Screw	M8 X 12
20	19M7407	1	Cap Screw	M8 X 25
21	14M7273	1	Nut	M8
22	AT419874	1	Ground Cable	-
23	AT419874	1	Ground Cable	-
24	T325024	2	Clamp	-
25	T325023	2	Clamp	-
26	19M7865	3	Screw	M8 X 16
27	T342939	1	Clamp	-
28	19M7646	1	Cap Screw	M14 X 25
29	19M7786	1	Screw	M10 X 30
30	T338724	1	Clamp	-
31	T318512	1	Clamp	-
32	19M7783	1	Screw	M10 X 16
33	R44302	34	Tie Band	-
34	R44302	10	Tie Band	-
35	R44302	4	Tie Band	-
36	T354048	1	Clamp	-
37	AT409993	1	Pressure Switch	To Brake Light, SUB FOR AT429456
38	51M7095	3	O-Ring	11.300 X 2.200 mm
39	51M7040	1	O-Ring	9.300 X 2.200 mm

Main Wiring Harness Hardware Components ( - 100031)
