Main Wiring Harness and Connectors (100080 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T291697	1	Elec. Connector Terminal	-
1	T330423	2	Elec. Connector Terminal	-
1	AT489150	1	Wiring Harness	Engine Transmission Harness, INCLUDES T291697 AND (2) T330423
2	57M9651	1	Elec. Connector Terminal	To Load Centre, A
2	57M7546	41	Elec. Connector Terminal	-
2	R78069	29	Elec. Connector Cavity Plug	-
3	57M7850	1	Elec. Connector Housing	Engine Coolant Temperature Sensor, B5
3	57M7829	2	Elec. Connector Terminal	-
3	57M7258	2	Elec. Connector Seal	-
4	57M7258	2	Elec. Connector Seal	-
4	57M7829	2	Elec. Connector Terminal	-
4	57M7850	1	Elec. Connector Housing	Crank Speed Sensor, B2
5	T291698	1	Elec. Connector Housing	Engine Oil Pressure Switch, B11
5	57M9199	1	Elec. Connector Terminal	-
6	57M8403	1	Elec. Connector Housing	Pump Control Valve, Y6
6	Z74554	2	Elec. Connector Terminal	-
6	57M8929	2	Elec. Connector Cable Seal	-
7	57M8400	1	Electrical Connector Assy	Fuel Temperature Sensor, B7
7	57M8402	2	Elec. Connector Terminal	-
7	57M7833	2	Elec. Connector Seal	-
8	57M7850	1	Elec. Connector Housing	Cam Speed Sensor, B1
8	57M7258	2	Elec. Connector Seal	-
8	57M7829	2	Elec. Connector Terminal	-
9	T320543	1	Elec. Connector Terminal	Starter Motor Ground, W6
10	T323008	1	Boot	-
11	T345411	1	Elec. Connector Terminal	Starter Motor B Positive, K
12	57M7850	1	Elec. Connector Housing	Manifold Air Temperature Sensor, B4
12	57M7829	2	Elec. Connector Terminal	-
12	57M7258	2	Elec. Connector Seal	-
13	T316946	1	Elec. Connector Terminal	Ground to Engine Frame, W4
14	T316946	1	Elec. Connector Terminal	G04 Ground, W2
15	57M7850	1	Elec. Connector Housing	Transmission Temperature Sensor, B10
15	57M7829	2	Elec. Connector Terminal	-
16	57M7254	1	Elec. Connector Housing	Water in Fuel, B3
16	R104846	2	Elec. Connector Terminal	-
16	57M7258	2	Elec. Connector Seal	-
17	57M9032	1	Elec. Connector Housing	Injectors, Y1
17	57M8011	1	Elec.Connect Locking Device	-
17	N282069	8	Elec. Connector Terminal	-
18	57M7534	1	Elec. Connector Housing	Pilot Enable / Boom Down Solenoid, Y13
18	57M7546	2	Elec. Connector Terminal	-
18	57M7620	1	Electrical Connector Assy	-
19	57M7796	1	Elec. Connector Housing	Transmission Oil Pressure Sensor, B12
19	R104701	3	Elec. Connector Terminal	-
19	57M9223	3	Elec. Connector Seal	-
20	RE12363	1	Electrical Connector Assy	To Ether Start Harness, X6
20	R78064	2	Elec. Connector Cavity Plug	-
20	R78060	2	Elec. Connector Terminal	-
20	R78059	2	Elec. Connector Seal	-
21	R78053	1	Electrical Connector Assy	-
22	R78061	2	Elec. Connector Terminal	-
22	R78059	2	Elec. Connector Seal	-
22	R78053	1	Electrical Connector Assy	Brake Accumulator Pressure Switch, B9
23	R78053	1	Electrical Connector Assy	Reverse Light Pressure Switch, B22
23	R78061	2	Elec. Connector Terminal	-
23	R78059	2	Elec. Connector Seal	-
24	T340480	1	Elec. Connector Housing	Front Washer, M3
24	T338723	2	Elec. Connector Terminal	-
25	57M7533	1	Elec. Connector Housing	-
25	57M7546	2	Elec. Connector Terminal	-
25	57M7620	1	Electrical Connector Assy	-
25	57M7534	1	Elec. Connector Housing	To Severe Duty Fuel Filter Harness, X8
25	R78069	2	Elec. Connector Cavity Plug	-
26	T309431	1	Fuse Holder	Severe Duty Fuel Filter Inline Fuse, F29
26	T309722	2	Electrical Connector Assy	-
27	57M10517	1	Elec. Connector Housing	Alternator Excitation Diode, V3
27	57M8022	1	Elec.Connect Locking Device	-
28	57M8960	1	Elec. Connector Housing	Alternator Excitation Diode, G2_3
28	57M8961	1	Electrical Connector Cap	-
29	57M9945	1	Elec. Connector Terminal	Alternator B Positive, G2_2
30	R74993	1	Boot	-
31	57M13770	1	Elec. Connector Housing	-
32	T325347	1	Boot	-
33	57M9944	1	Elec. Connector Terminal	Alternator Ground, G2_1
34	57M13604	1	Elec. Connector Housing	Rail Pressure, B6
34	57M8417	1	Elec.Connect Locking Device	-
34	57M8135	3	Elec. Connector Terminal	-
34	57M7833	3	Elec. Connector Seal	-

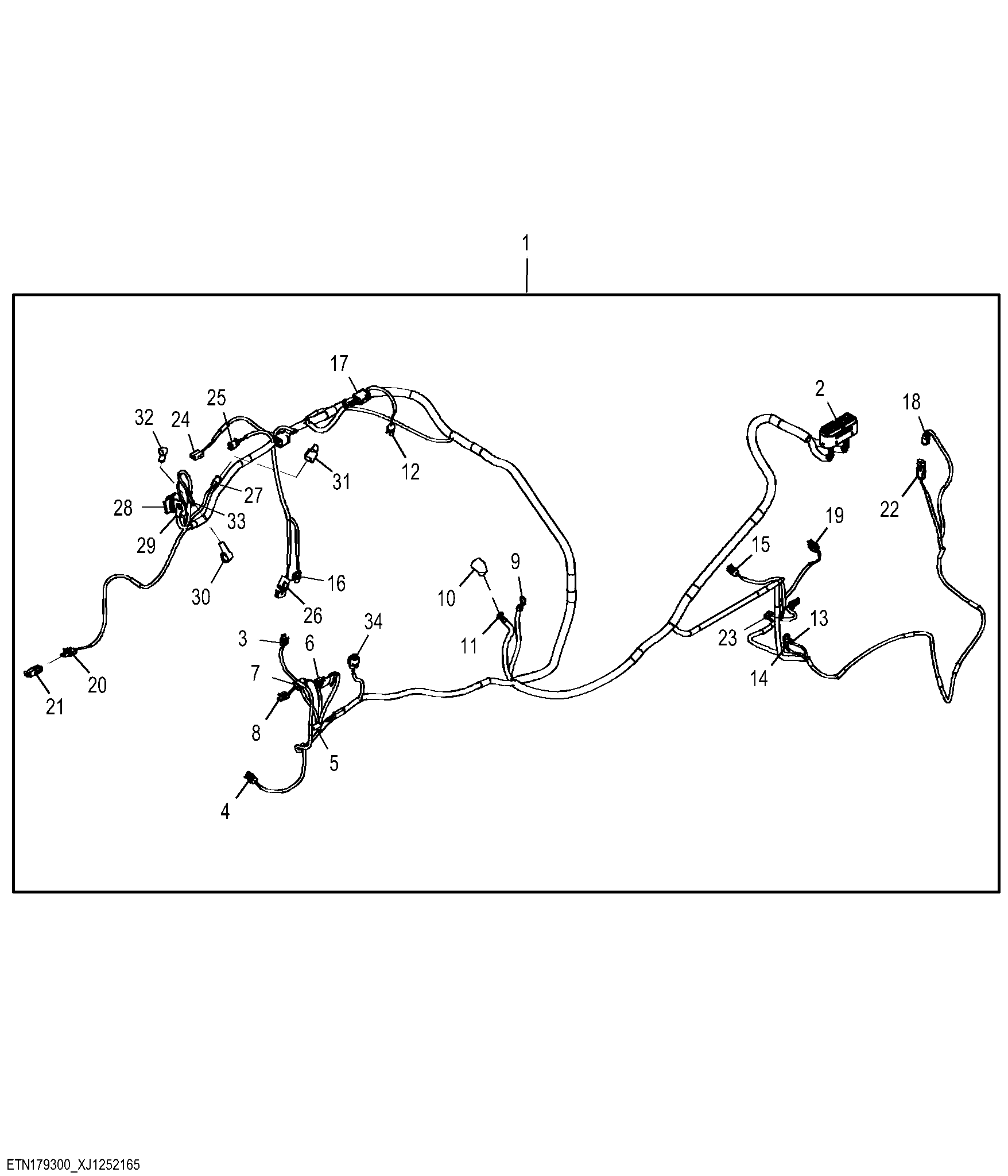

Main Wiring Harness and Connectors (100080 - )
