Main Wiring Harness (100032 - 100079)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT431630	1	Wiring Harness	Engine Transmission Harness
1	AT467920	1	Wiring Harness	Engine Transmission Harness, ORDER AT431630
2	57M7546	40	Elec. Connector Terminal	-
2	57M9651	1	Elec. Connector Terminal	To Load Centre, A
2	R78069	30	Elec. Connector Cavity Plug	-
3	57M7850	1	Elec. Connector Housing	Engine Coolant Temperature Sensor, B5
3	57M7829	2	Elec. Connector Terminal	-
3	57M7258	2	Elec. Connector Seal	-
4	T291696	1	Elec. Connector Housing	Alternator Excitation D Positive, CC
4	T291697	1	Elec. Connector Terminal	-
5	57M7850	1	Elec. Connector Housing	Crank Speed Sensor, B2
5	57M7829	2	Elec. Connector Terminal	-
5	57M7258	2	Elec. Connector Seal	-
6	T315261	1	Elec. Connector Terminal	Alternator Ground, DD
7	T315258	1	Elec. Connector Terminal	Alternator B Positive, DD1
8	T325347	1	Boot	-
9	T291698	1	Elec. Connector Housing	Engine Oil Pressure Switch, B11
9	57M9199	1	Elec. Connector Terminal	-
10	57M8929	2	Elec. Connector Cable Seal	-
10	57M8403	1	Elec. Connector Housing	Pump Control Valve, Y6
10	Z74554	2	Elec. Connector Terminal	-
11	57M8400	1	Electrical Connector Assy	Fuel Temperature Sensor, B7
11	57M8402	2	Elec. Connector Terminal	-
11	57M7833	2	Elec. Connector Seal	-
12	57M7850	1	Elec. Connector Housing	Cam Speed Sensor, B1
12	57M7829	2	Elec. Connector Terminal	-
12	57M7258	2	Elec. Connector Seal	-
13	57M8135	3	Elec. Connector Terminal	-
13	57M7833	3	Elec. Connector Seal	-
13	57M8407	1	Elec. Connector Housing	Rail Pressure, B6
14	T320543	1	Elec. Connector Terminal	Starter Motor Ground, W6
15	T323008	1	Boot	-
16	T345411	1	Elec. Connector Terminal	Starter Motor B Positive, K
17	57M7850	1	Elec. Connector Housing	Manifold Air Temperature Sensor, B4
17	57M7829	2	Elec. Connector Terminal	-
17	57M7258	2	Elec. Connector Seal	-
18	T316946	1	Elec. Connector Terminal	Ground to Engine Frame, W4
19	T316946	1	Elec. Connector Terminal	G04 Ground, W2
20	57M7829	2	Elec. Connector Terminal	-
20	57M7850	1	Elec. Connector Housing	Transmission Temperature Sensor, B10
21	T318520	1	Diode	Resistor 250 OHM
22	57M7254	1	Elec. Connector Housing	Water In Fuel, B3
22	R104846	2	Elec. Connector Terminal	-
22	57M7258	2	Elec. Connector Seal	-
23	57M9032	1	Elec. Connector Housing	Injectors, Y1
23	N282069	8	Elec. Connector Terminal	-
23	57M8011	1	Elec.Connect Locking Device	-
24	57M7546	2	Elec. Connector Terminal	-
24	57M7534	1	Elec. Connector Housing	Pilot Enable / Boom Down Solenoid, Y13
25	57M7796	1	Elec. Connector Housing	Transmission Oil Pressure Sensor, B12
25	R104701	3	Elec. Connector Terminal	-
25	57M9223	3	Elec. Connector Seal	-
26	RE12363	1	Electrical Connector Assy	To Ether Start Harness, X6
26	R78064	2	Elec. Connector Cavity Plug	-
26	R78060	2	Elec. Connector Terminal	-
26	R78059	2	Elec. Connector Seal	-
27	R78053	1	Electrical Connector Assy	-
28	R78061	2	Elec. Connector Terminal	-
28	R78059	2	Elec. Connector Seal	-
28	R78053	1	Electrical Connector Assy	Brake Accumulator Pressure Switch, B9
29	R78053	1	Electrical Connector Assy	Reverse Light Pressure Switch, B22
29	R78061	2	Elec. Connector Terminal	-
29	R78059	2	Elec. Connector Seal	-
30	T340480	1	Elec. Connector Housing	Front Washer, M3
30	T338723	2	Elec. Connector Terminal	-
31	57M7534	1	Elec. Connector Housing	To Severe Duty Fuel Filter Harness, X8
31	57M7546	2	Elec. Connector Terminal	-
31	57M7620	1	Electrical Connector Assy	-
31	R78069	2	Elec. Connector Cavity Plug	-
32	T309431	1	Fuse Holder	Severe Duty Fuel Filter Inline Fuse, F29
32	T309722	2	Electrical Connector Assy	-
33	57M7533	1	Elec. Connector Housing	-
34	T373325	1	Elec. Connector Housing	Alternator Resistor 240 OHM, R1
34	T330423	2	Elec. Connector Terminal	-

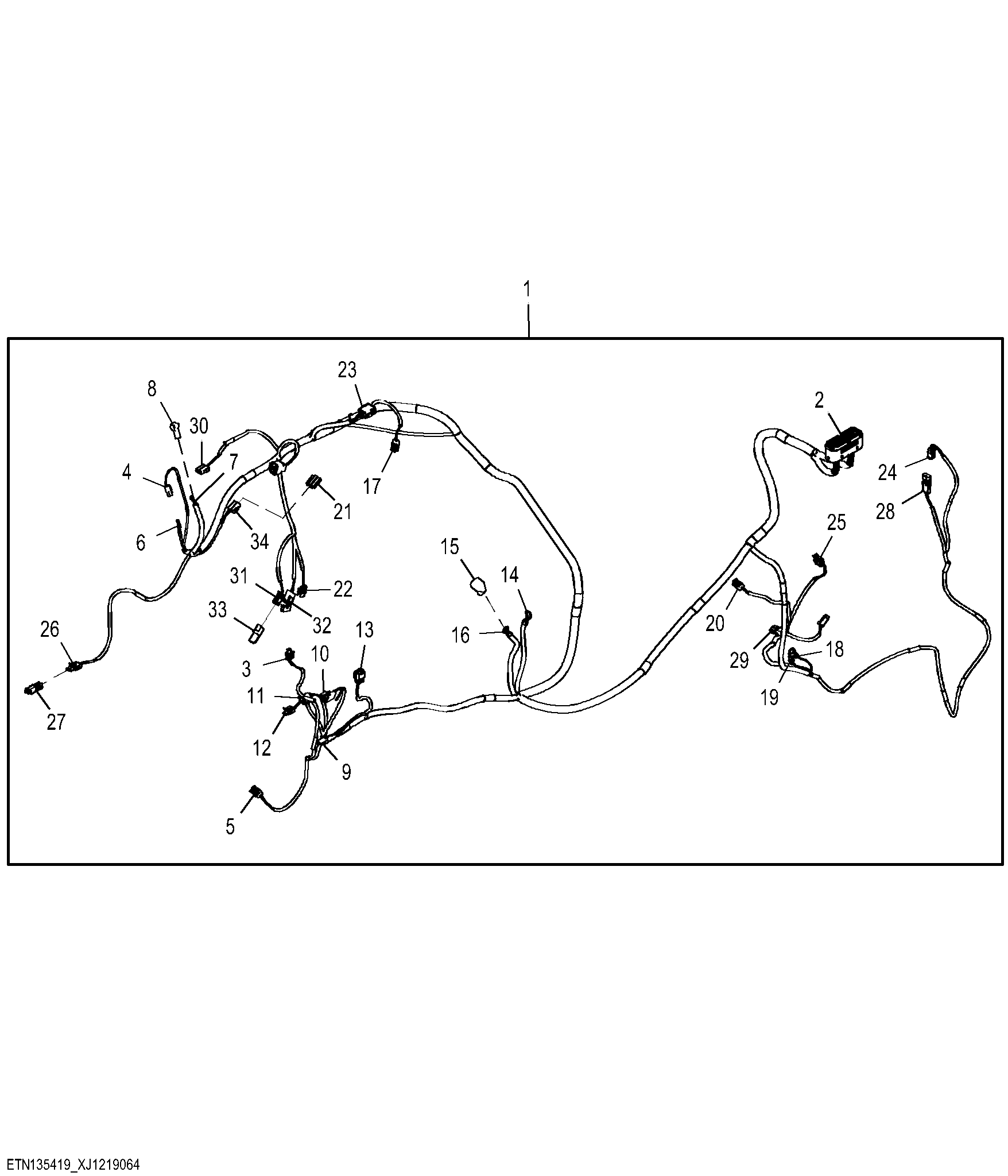

Main Wiring Harness (100032 - 100079)
