Открытый узел

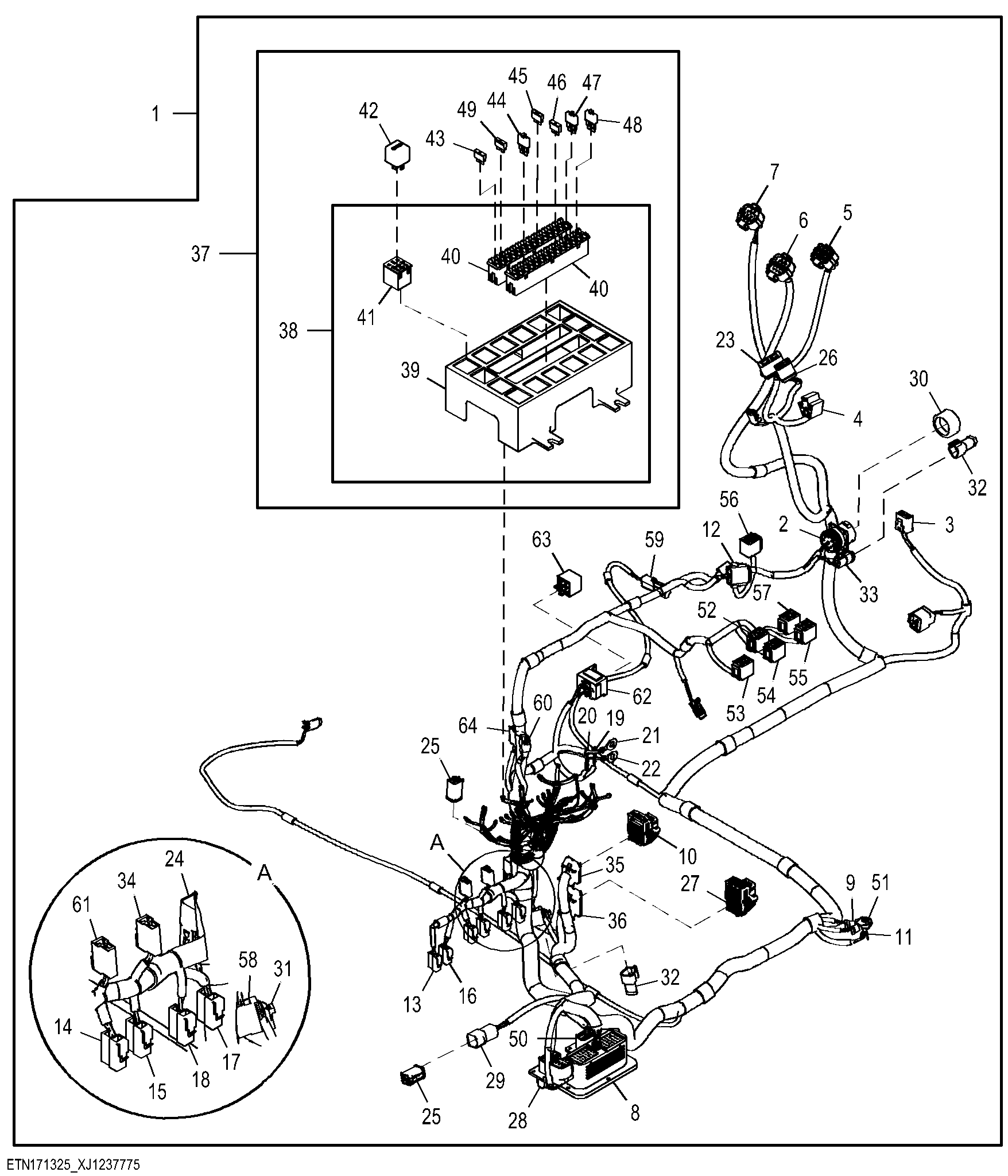

Cab Wiring Harness (100048 - 100079)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T330462	4	Elec. Connector Terminal	-
1	AT470517	1	Wiring Harness	Cab Wiring Harness, INCLUDES (4) T330462
2	N282069	4	Elec. Connector Terminal	-
2	R78069	5	Elec. Connector Cavity Plug	-
2	57M7919	1	Elec. Connector Housing	Service Advisor Diagnostic Connector, P1
3	T318078	1	Elec. Connector Housing	Front Wiper Motor, M2
3	57M12274	5	Elec. Connector Terminal	-
4	L38138	1	Elec. Connector Housing	Key Switch, S1
4	57M7498	2	Elec. Connector Terminal	-
4	U46662	2	Elec. Connector Terminal	-
5	57M10856	5	Elec. Connector Terminal	-
5	57M10261	5	Elec. Connector Cable Seal	-
5	57M10262	3	Elec. Connector Accessory	-
5	57M10985	1	Elec. Connector Housing	Display - J1, H2-J1
6	57M10987	1	Elec. Connector Housing	Display - J2, H2-J2
6	57M10856	10	Elec. Connector Terminal	-
6	57M10262	4	Elec. Connector Accessory	-
6	57M10261	10	Elec. Connector Cable Seal	-
7	57M10856	8	Elec. Connector Terminal	-
7	57M10261	8	Elec. Connector Cable Seal	-
7	57M10262	2	Elec. Connector Accessory	-
7	57M10986	1	Elec. Connector Housing	Display - J4, H2-J4
8	57M9650	1	Electrical Connector Assy	To Engine Harness, A
8	R78069	29	Elec. Connector Cavity Plug	-
8	57M8164	41	Elec. Connector Terminal	-
9	T316946	1	Elec. Connector Terminal	G06 Ground, 39
10	57M10605	1	Elec. Connector Housing	Engine Controller, 24-J1
10	57M8530	20	Elec. Connector Terminal	-
10	57M8605	7	Elec. Connector Seal	-
10	57M8531	5	Elec. Connector Terminal	-
11	T316946	1	Elec. Connector Terminal	G01 Ground, 82
12	57M8010	1	Electrical Connector Assy	Pilot Controller, 33
12	57M7546	6	Elec. Connector Terminal	-
12	R78069	2	Elec. Connector Cavity Plug	-
13	T306678	1	Diode	Ether Start Diode- 1 A, V5
13	57M12698	3	Elec. Connector Terminal	-
13	T318518	1	Diode	1 A
14	T306678	1	Diode	Diode- High Beam- 5 A, V8
14	T318519	1	Diode	5 A
14	57M12698	4	Elec. Connector Terminal	-
15	T306678	1	Diode	Engine Starter Coil Suppression Diode- 5 A, V2
15	T318519	1	Diode	5 A
15	57M12698	2	Elec. Connector Terminal	-
16	T306678	1	Diode	Diode- Low Beam- 5 A, V7
16	T318519	1	Diode	5 A
16	57M12698	4	Elec. Connector Terminal	-
17	T306678	1	Diode	Diode- Wiper Relay 1 A, V3
17	T318518	1	Diode	1 A
17	57M12698	4	Elec. Connector Terminal	-
18	57M12698	2	Elec. Connector Terminal	-
18	T306678	1	Diode	Pilot Enable Diode - 1 A, V9
18	T318518	1	Diode	1 A
19	T316947	1	Elec. Connector Terminal	Start Relay - Signal, 22-86
20	T316947	1	Elec. Connector Terminal	Start Relay - Ground, 22-85
21	T316945	1	Elec. Connector Terminal	Start Relay - Power, 22-30
22	T316945	1	Elec. Connector Terminal	Start Relay - Signal, 22-87
23	T306680	1	Elec. Connector Housing	Integrated Switch, 78
23	57M12274	6	Elec. Connector Terminal	-
24	57M7629	1	Elec. Connector Housing	To DFCH Harness, X19
24	R78069	3	Elec. Connector Cavity Plug	-
24	N282069	3	Elec. Connector Terminal	-
24	57M7678	1	Elec. Connector Terminal	-
25	57M8012	2	Electrical Connector Assy	-
26	T318078	1	Elec. Connector Housing	Integrated Switch, 77
26	57M12274	5	Elec. Connector Terminal	-
27	57M8531	7	Elec. Connector Terminal	-
27	57M8530	13	Elec. Connector Terminal	-
27	57M10615	1	Elec. Connector Housing	Engine Controller, 24-J2
27	57M8605	28	Elec. Connector Seal	-
28	N282069	7	Elec. Connector Terminal	-
28	57M8787	1	Elec. Connector Housing	To Rear Frame Harness, X20
28	57M7682	1	Elec.Connect Locking Device	-
28	R78069	5	Elec. Connector Cavity Plug	-
29	57M7629	1	Elec. Connector Housing	To JD - Link, X22
29	57M7678	1	Elec. Connector Terminal	-
29	N282069	6	Elec. Connector Terminal	-
30	57M7477	1	Electrical Connector Cap	-
31	57M8018	1	Electrical Connector Assy	Controller Area Network Terminator, R2
31	57M8133	1	Elec.Connect Locking Device	-
31	N282068	3	Elec. Connector Terminal	-
32	57M8131	2	Electronic Terminator	-
33	57M8018	1	Electrical Connector Assy	Controller Area Network Terminator 2, R3
33	57M8133	1	Elec.Connect Locking Device	-
33	N282068	3	Elec. Connector Terminal	-
34	57M12698	2	Elec. Connector Terminal	-
34	T318518	1	Diode	1 A
34	T306678	1	Diode	Start Relay Coil Suppression Diode- 1 A, V1
35	57M10604	1	Elec. Connector Housing	-
36	57M10613	1	Elec. Connector Housing	-
37	AT433853	1	Fuse Box	Fuse Block, FB1
38	AT409315	1	Fuse Box	-
39	T330120	1	Housing	-
40	T309770	2	Holder	-
41	T330119	16	Holder	-
42	AT432543	13	Relay	24 V
43	57M7125	16	Fuse	Tan 5 A
44	AT410572	1	Circuit Breaker	10 A
45	57M7120	2	Fuse	Yellow 20 A
46	99M7065	1	Fuse	Blue 15 A
47	AT410574	1	Circuit Breaker	20 A
48	AT410573	1	Circuit Breaker	15 A
49	57M7121	1	Fuse	Red 10 A
50	T338175	1	Elec. Connector Housing	To Loader Frame Harness, X2
50	N282069	9	Elec. Connector Terminal	-
50	R78069	3	Elec. Connector Cavity Plug	-
51	T316946	1	Elec. Connector Terminal	G03 Ground, 40
52	T341881	1	Elec. Connector Housing	Drive Light Switch, S7
52	57M12698	2	Elec. Connector Terminal	-
53	T341881	1	Elec. Connector Housing	External Switch Liquid Crystal Display Control, S13
53	57M12698	2	Elec. Connector Terminal	-
54	T341881	1	Elec. Connector Housing	4 Way Flasher Switch, S8
54	57M12698	5	Elec. Connector Terminal	-
55	T341881	1	Elec. Connector Housing	Work Light Switch, S9
55	57M12698	3	Elec. Connector Terminal	-
56	T341881	1	Elec. Connector Housing	Pilot Enable Switch, S12
56	57M12698	3	Elec. Connector Terminal	-
57	57M12698	3	Elec. Connector Terminal	-
57	T341881	1	Elec. Connector Housing	Clutch Cutoff Enable Switch, S11
58	T306678	1	Diode	To Clutch Cutoff Solenoid, Y12
58	57M12274	2	Elec. Connector Terminal	-
59	R78053	1	Electrical Connector Assy	Brake Light Pressure Switch, 36
59	R78061	2	Elec. Connector Terminal	-
59	R78059	2	Elec. Connector Seal	-
60	57M12200	1	Elec. Connector Housing	To Heating, Ventilating And Air Conditioning Heater Harness, X04
60	T330459	2	Elec. Connector Terminal	-
61	T306678	1	Diode	Clutch Cutoff Diode- 5 A, V4
61	T318519	1	Diode	5 A
61	57M12698	2	Elec. Connector Terminal	-
62	T335460	1	Elec. Connector Housing	Air Conditioning Relay, K19
62	57M12275	4	Elec. Connector Terminal	-
63	AT432543	1	Relay	24 V
64	T306678	1	Diode	To Heating, Ventilating and Air Conditioning Harness, X05
64	57M12274	2	Elec. Connector Terminal	-

Cab Wiring Harness (100048 - 100079)

Нет текстового описания
