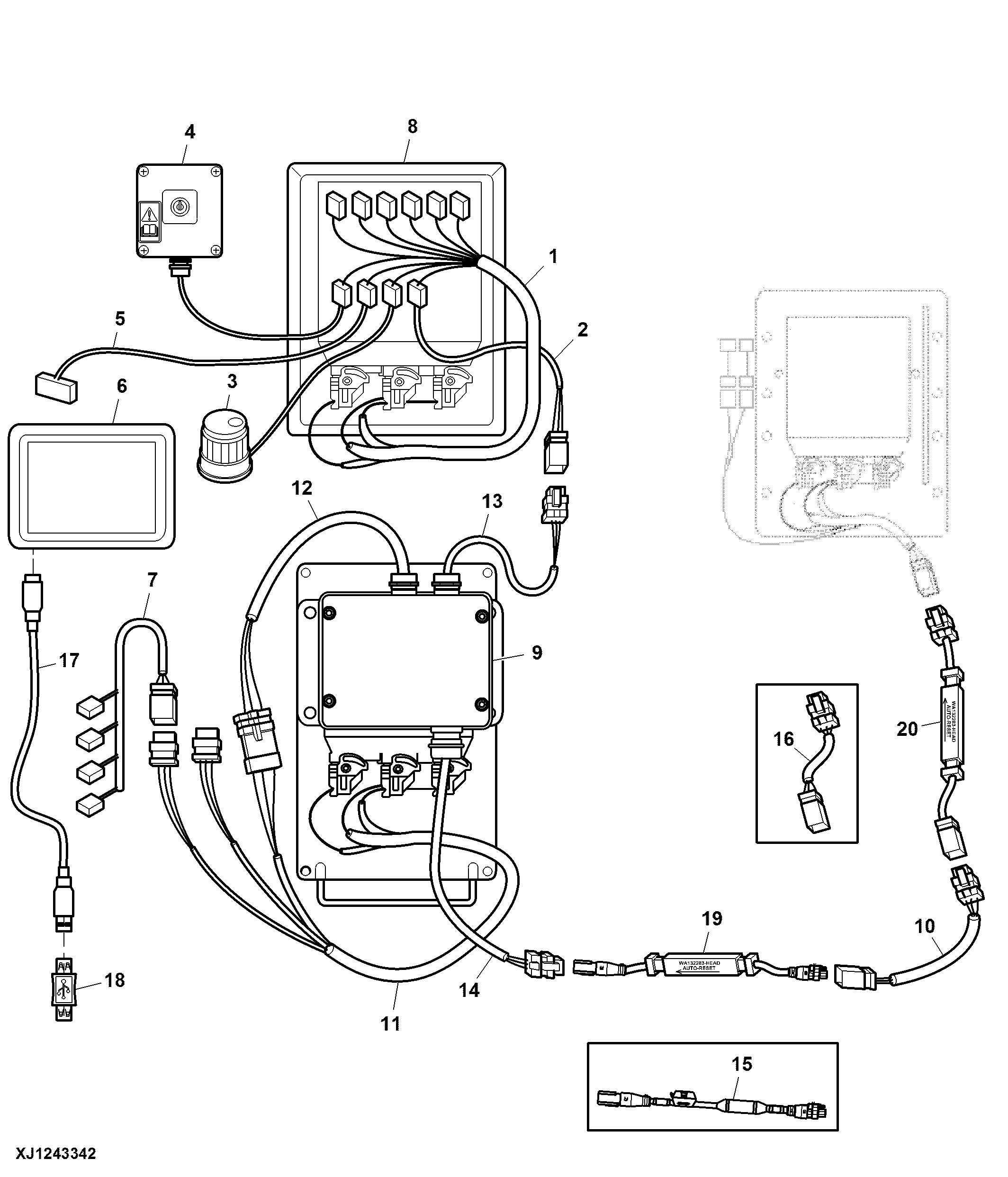

Electrical System W/ Non Touch Screen (616C000301, 618C000046)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA118451	1	Wiring Harness	CAB FLEX MODULE WIRING LOOM
2	WA118452	1	Wiring Harness	CAB TO BASE BOX CABLE
3	WA118459	1	Module	NAVIGATIONAL WHEEL ASSEMBLY
4	-	1	Part 4	KEY SWITCH ASSEMBLY WITH CABLE
5	WA118453	1	Wiring Harness	CAB TO SCREEN CABLE
6	-	1	Part 6	DISPLAY SCREEN
7	WA118455	1	Wiring Harness	PUMP LEADS
8	-	1	Part 8	CAB MODULE
9	WA118155	1	Module	INCLUDES <service-part>WA119396</service-part>, <service-part>WA119397</service-part> AND <service-part>WA119398</service-part> RELAY BOX - BASE MODULE
10	WA118450	1	Wiring Harness	BOOM CABLE
11	WA118454	1	Wiring Harness	BASE FLEX MODULE TO RELAY BOX WIRING LOOM
12	WA119398	1	Wiring Harness	CIRCUIT BOX HARNESS - TO BOOM
13	WA119397	1	Wiring Harness	CIRCUIT BOX HARNESS - TO CAB
14	WA119396	1	Wiring Harness	CIRCUIT BOX HARNESS - TO BASE FLEX BOX
15	WA126169	1	Circuit Breaker	CAN PROTECTION-BASE NLA; ORDER WA132284
16	WA121001	1	Circuit Breaker	CAN PROTECTION-HEAD NLA; ORDER WA132283
17	WA119249	1	Cable	-
18	WA119248	1	Electrical Equipment	USB Adapter
19	WA132284	1	Cable	CAN PROTECTION-BASE
20	WA132283	1	Cable	CAN PROTECTION-HEAD

Electrical System W/ Non Touch Screen (616C000301, 618C000046)
