Открытый узел

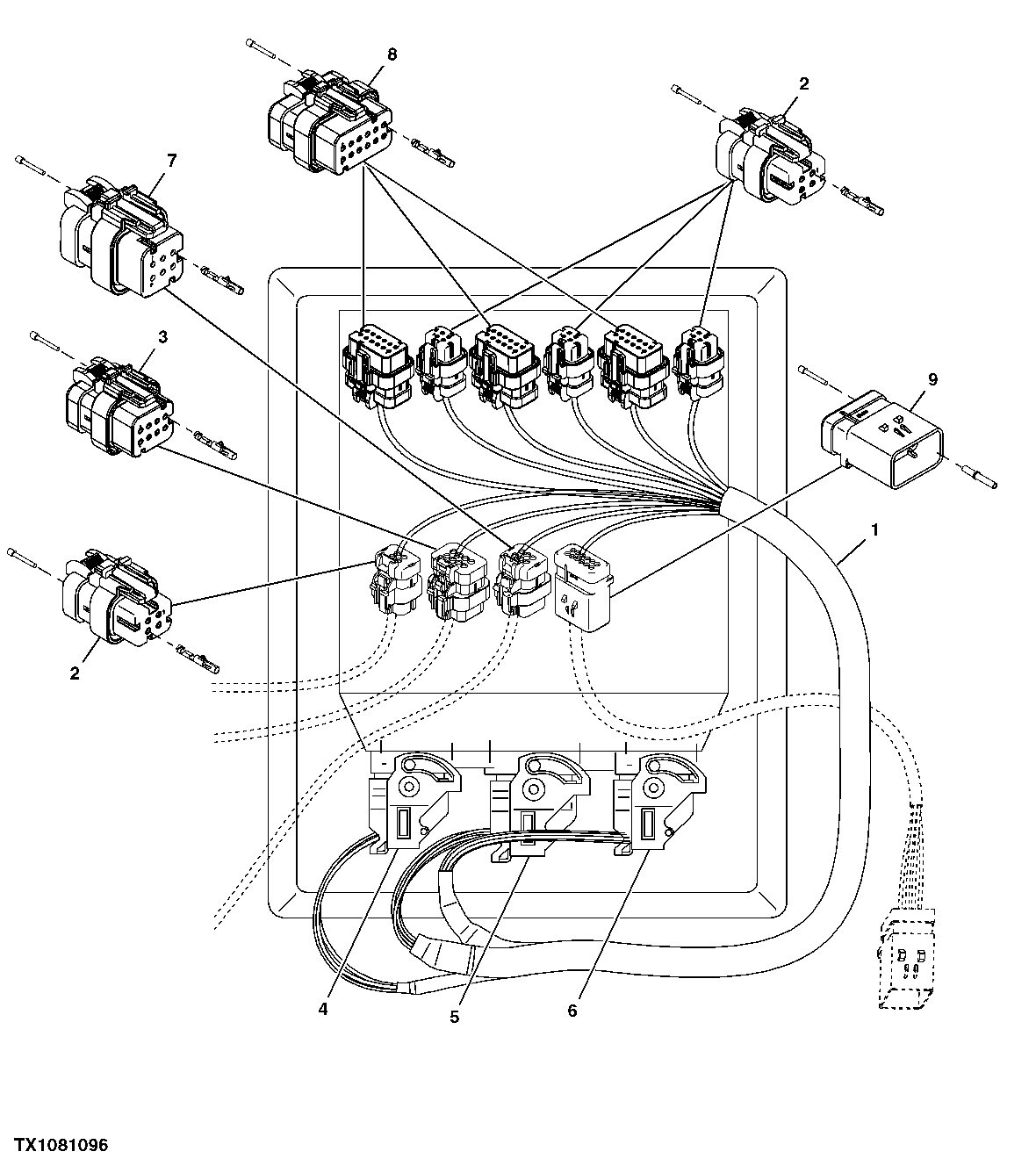

Cab Flex Module Wiring Loom W/ Non Touch Screen

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA118451	1	Wiring Harness	CAB FLEX MODULE WIRING LOOM
2	57M9817	4	Elec. Connector Housing	4 WAY - AMPSEAL PLUG
2	57M8263	16	Elec. Connector Terminal	16-18 AWG, SOCKET - GOLD
2	57M9814	1	Elec. Connector Cavity Plug	BLANKING PLUG AMP SEAL
3	57M9792	1	Elec. Connector Housing	8 WAY - AMPSEAL PLUG
3	57M8263	12	Elec. Connector Terminal	16-18 AWG, SOCKET - GOLD
3	57M9814	1	Elec. Connector Cavity Plug	BLANKING PLUG AMP SEAL
4	57M10606	1	Elec. Connector Housing	MOLEX PLUG (32 WAY) (BLUE) (J3)
4	57M10604	1	Elec. Connector Housing	SMALL CAP (J3)
4	57M10334	1	Elec. Connector Cavity Plug	1.5 MM, BLANKING PLUG (ORANGE)
4	57M10333	1	Elec. Connector Cavity Plug	0.6 MM, BLANKING PLUG (WHITE)
4	57M10330	24	Elec. Connector Terminal	0.635 MM, Socket
4	57M10331	8	Elec. Connector Terminal	1.5 MM, Socket
5	57M10330	24	Elec. Connector Terminal	0.635 MM, Socket
5	57M10331	8	Elec. Connector Terminal	1.5 MM, Socket
5	57M10333	1	Elec. Connector Cavity Plug	0.6 MM, BLANKING PLUG (WHITE)
5	57M10613	1	Elec. Connector Housing	LARGE CAP (J2)
5	57M10615	1	Elec. Connector Housing	MOLEX PLUG (48 WAY) (RED) (J2)
5	57M10334	1	Elec. Connector Cavity Plug	1.5 MM, BLANKING PLUG (ORANGE)
6	57M10612	1	Elec. Connector Housing	MOLEX PLUG (32 WAY) (RED) (J1)
6	57M10604	1	Elec. Connector Housing	SMALL CAP (J1)
6	57M10334	1	Elec. Connector Cavity Plug	1.5 MM, BLANKING PLUG (ORANGE)
6	57M10333	1	Elec. Connector Cavity Plug	0.6 MM, BLANKING PLUG (WHITE)
6	57M10330	24	Elec. Connector Terminal	0.635 MM, Socket
6	57M10331	8	Elec. Connector Terminal	1.5 MM, Socket
7	57M9786	1	Elec. Connector Housing	6 WAY - AMPSEAL PLUG
7	57M9814	1	Elec. Connector Cavity Plug	BLANKING PLUG AMP SEAL
7	57M8263	6	Elec. Connector Terminal	16-18 AWG, SOCKET - GOLD
8	57M9800	3	Elec. Connector Housing	12 WAY - AMPSEAL PLUG
8	57M8263	36	Elec. Connector Terminal	16-18 AWG, SOCKET - GOLD
8	57M9814	1	Elec. Connector Cavity Plug	BLANKING PLUG AMP SEAL
9	57M9804	1	Elec. Connector Housing	12 WAY - AMPSEAL RECEPTACLE
9	57M8264	12	Elec. Connector Terminal	16-18 AWG, PIN - GOLD
9	57M9814	1	Elec. Connector Cavity Plug	BLANKING PLUG AMP SEAL

Cab Flex Module Wiring Loom W/ Non Touch Screen

Нет текстового описания
