Открытый узел

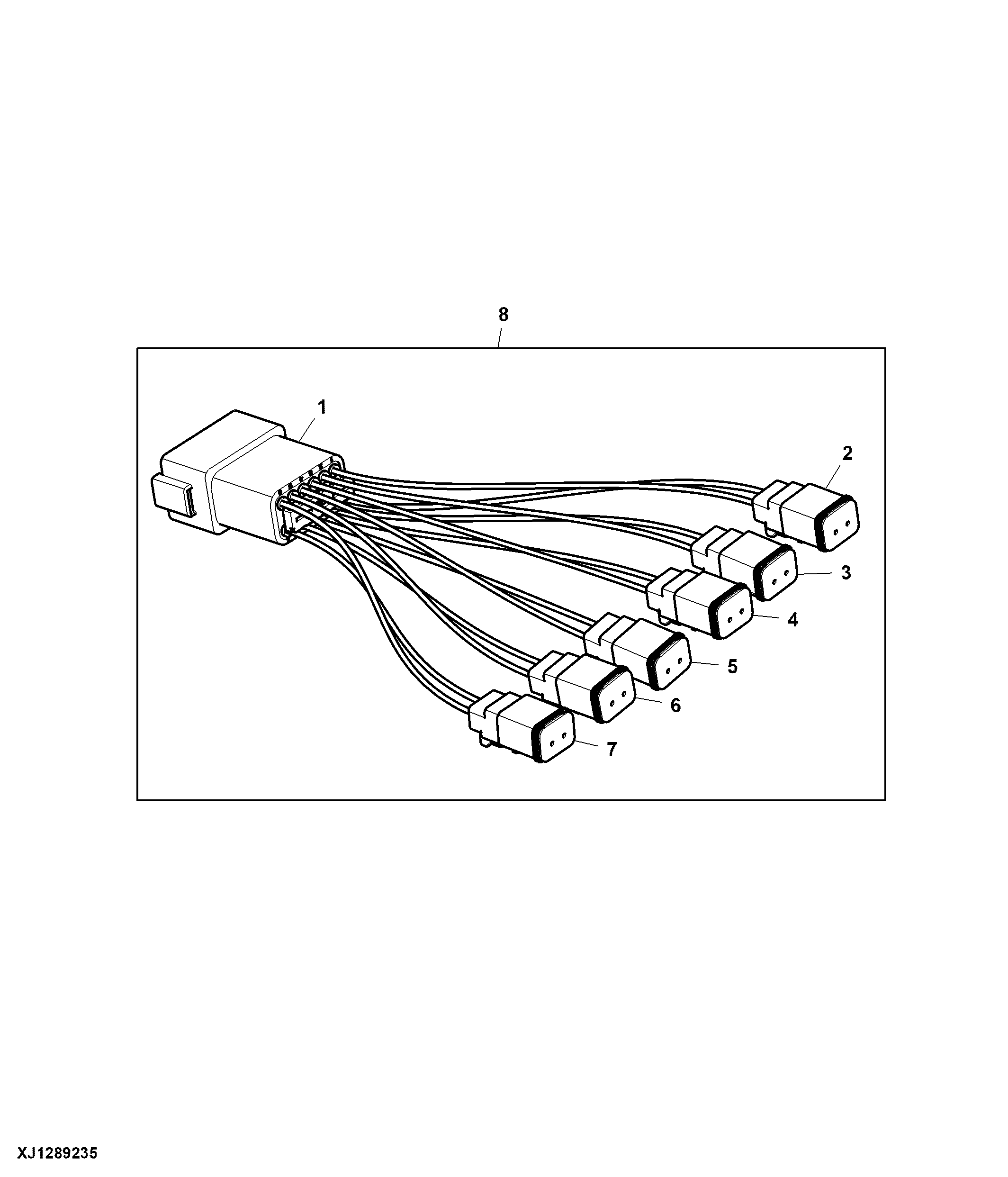

General Output Assembly Wiring Harness

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8264	12	Elec. Connector Terminal	-
1	57M7682	1	Elec.Connect Locking Device	-
1	R78069	12	Elec. Connector Cavity Plug	-
1	57M11395	1	Elec. Connector Housing	Base Control Unit (X23B)
2	57M10517	1	Elec. Connector Housing	General Output 1 (Y4)
2	57M8263	2	Elec. Connector Terminal	-
2	57M8022	1	Elec.Connect Locking Device	-
3	57M10517	1	Elec. Connector Housing	General Output 2 (Y5)
3	57M8263	2	Elec. Connector Terminal	-
3	57M8022	1	Elec.Connect Locking Device	-
4	57M8263	2	Elec. Connector Terminal	-
4	57M8022	1	Elec.Connect Locking Device	-
4	57M10517	1	Elec. Connector Housing	General Output 3 (Y6)
5	57M10517	1	Elec. Connector Housing	General Output 4 (Y7)
5	57M8263	2	Elec. Connector Terminal	-
5	57M8022	1	Elec.Connect Locking Device	-
6	57M10517	1	Elec. Connector Housing	General Output 5 (Y8)
6	57M8263	2	Elec. Connector Terminal	-
6	57M8022	1	Elec.Connect Locking Device	-
7	57M10517	1	Elec. Connector Housing	General Output 6 (Y9)
7	57M8263	2	Elec. Connector Terminal	-
7	57M8022	1	Elec.Connect Locking Device	-
8	WA134546	1	Wiring Harness	General Output Assembly

General Output Assembly Wiring Harness

Нет текстового описания
