Base Assembly

Нет текстового описания

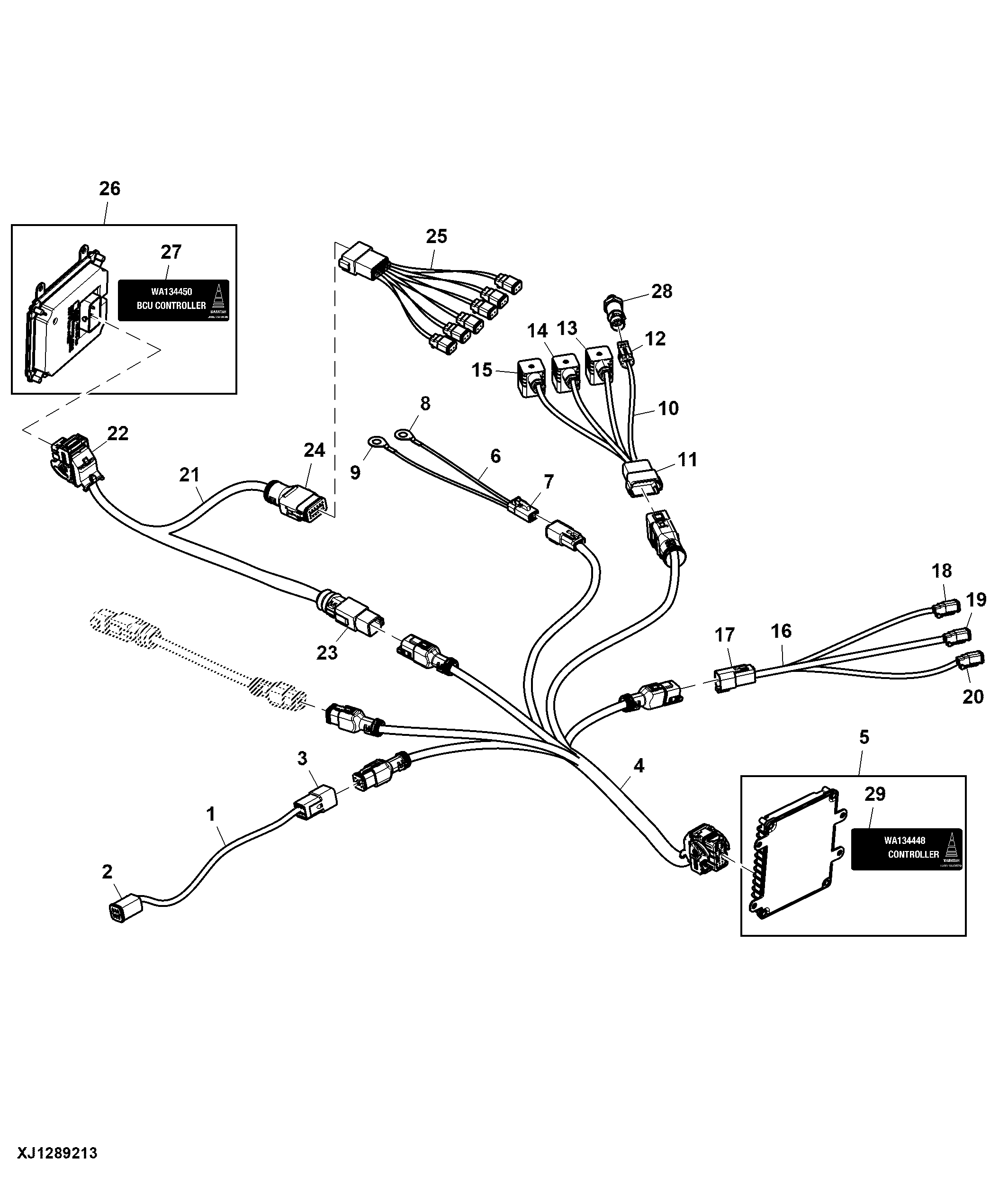

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA126603	1	Wiring Harness	Boom
2	57M9957	1	Elec. Connector Housing	Head to Boom (X5A)
2	57M8013	1	Elec.Connect Locking Device	-
2	57M8263	4	Elec. Connector Terminal	-
2	Z64310	2	Elec. Connector Terminal	-
3	57M9956	1	Elec. Connector Housing	Base to Boom (X15B)
3	Z64309	2	Elec. Connector Terminal	-
3	57M8264	4	Elec. Connector Terminal	-
3	57M7678	1	Elec. Connector Terminal	-
4	WA134438	1	Wiring Harness	Base Compoent on Separate Page
5	WA134448	1	Vehicle Controller	ACM Controller
6	WA134553	1	Location/Assembly Drawing	Battery
7	57M13954	1	Elec. Connector Housing	Base (X21A)
7	57M10718	2	Elec. Connector Accessory	-
7	Z70739	1	Electrical Connector Assy	-
8	57M13056	1	Elec. Connector Terminal	Fuse Holder (F1)
9	57M13056	1	Elec. Connector Terminal	Battery (G1)
10	WA134541	1	Wiring Harness	Pressure and Filter Assembly
11	57M11395	1	Elec. Connector Housing	Base (X24B)
11	57M8264	9	Elec. Connector Terminal	-
11	R78069	3	Elec. Connector Cavity Plug	-
11	57M7682	2	Elec.Connect Locking Device	-
11	R78069	9	Elec. Connector Cavity Plug	-
12	57M7796	1	Elec. Connector Housing	Base Main Pressure (B1)
12	57M9006	3	Elec. Connector Terminal	-
13	WA101173	1	Plug	Main Filter Status (B2)
13	57M10886	2	Elec. Connector Terminal	-
14	WA101173	1	Plug	Return Filter Status (B3)
14	57M10886	2	Elec. Connector Terminal	-
15	WA101173	1	Plug	Case Drain Filter Status (B4)
15	57M10886	2	Elec. Connector Terminal	-
16	WA134537	1	Wiring Harness	Pump Output Assembly
17	57M13374	1	Elec. Connector Housing	Base (X25B)
17	R78069	6	Elec. Connector Cavity Plug	-
17	57M8264	6	Elec. Connector Terminal	-
17	57M7678	1	Elec. Connector Terminal	-
18	57M10517	1	Elec. Connector Housing	Pump One (Y1)
18	57M8263	2	Elec. Connector Terminal	-
18	57M8022	1	Elec.Connect Locking Device	-
19	57M10517	1	Elec. Connector Housing	Pump Two (Y2)
19	57M8263	2	Elec. Connector Terminal	-
19	57M8022	1	Elec.Connect Locking Device	-
20	57M10517	1	Elec. Connector Housing	Pump Three (Y3)
20	57M8263	2	Elec. Connector Terminal	-
20	57M8022	1	Elec.Connect Locking Device	-
21	WA134439	1	Wiring Harness	Base Control Unit
22	57M10333	14	Elec. Connector Cavity Plug	-
22	R44302	1	Tie Band	-
22	57M10613	1	Elec. Connector Housing	-
22	57M10618	8	Elec. Connector Housing	-
22	57M10488	2	Elec. Connector Terminal	-
22	57M10615	1	Elec. Connector Housing	Base Control Unit (A7)
23	57M9956	1	Elec. Connector Housing	Base (X22B)
23	57M8264	6	Elec. Connector Terminal	-
23	57M10531	1	Elec. Connector Accessory	-
23	57M7678	1	Elec. Connector Terminal	-
24	57M11396	1	Elec. Connector Housing	General Outputs (X23A)
24	57M8263	12	Elec. Connector Terminal	-
24	57M10474	1	Elec. Connector Accessory	-
24	57M7681	1	Elec. Connector Terminal	-
25	WA134546	1	Wiring Harness	General Output assembly Compoent on Separate Page
26	WA134450	1	Vehicle Controller	Base Control Unit Controller
27	WA134780	1	Label	-
28	AT422694	1	Pressure Sensor	400 Bar
29	WA134779	1	Label	-
