Non-CAN Handle, LH, Trigger Series — Three-Position Switch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA132417	1	Kit	Control handle, LH, Trigger series
2	WA135940	1	Kit	Service kit, LH handle shell and keypad
2	-	1	Part 3	Left handle shell (grey ABS plastic)
2	-	1	Part 4	Left 10-switch keypad assembly
2	-	1	Part 5	Left 10-button keypad case, grey
2	-	1	Part 6	Double trigger (grey ABS plastic)
2	-	2	Part 7	3/8" button head screw, stainless
2	-	2	Part 8	3/8" socket cap screw, stainless
2	-	1	Part 9	Cable assembly (12 ft, handle to connector)
2	-	1	Part 10	3/8" X 1/4", Grommet
2	-	1	Part 11	Amp 12-pin connector
2	-	1	Part 12	Deutsch plug seal
2	-	11	Part 13	Size 16, 16-20 AWG, Gold pin
3	-	1	Part 16	‘L’ series 8-button overlay
3	-	8	Part 15	Button: large grey
3	WA135328	1	Kit	Service kit, buttons
4	WA135331	1	Kit	Service kit, buttons with switches
4	-	8	Part 18	Button: large grey
4	-	1	Part 19	‘L’ series 8-button overlay
4	-	8	Part 20	100 mA, Gold contact switch
4	-	1	Part 21	‘L’ series empty faceplate, grey
4	-	14	Part 22	7/16" , tapping screw – pan head
5	F057644	1	Spring	Service kit, trigger spring
5	-	1	Part 24	SureGrip leaf spring (for trigger)
5	-	2	Part 25	9/16" , tapping screw – pan head
6	WA116920	1	Kit	Service kit, trigger switch
6	-	1	Part 27	SureGrip leaf spring switch (for trigger)
6	-	1	Part 28	SureGrip leaf spring (for trigger)
6	-	2	Part 29	9/16" , tapping screw – pan head
7	WA135330	1	Adapter	12 mm X 1.75, Mounting adapter

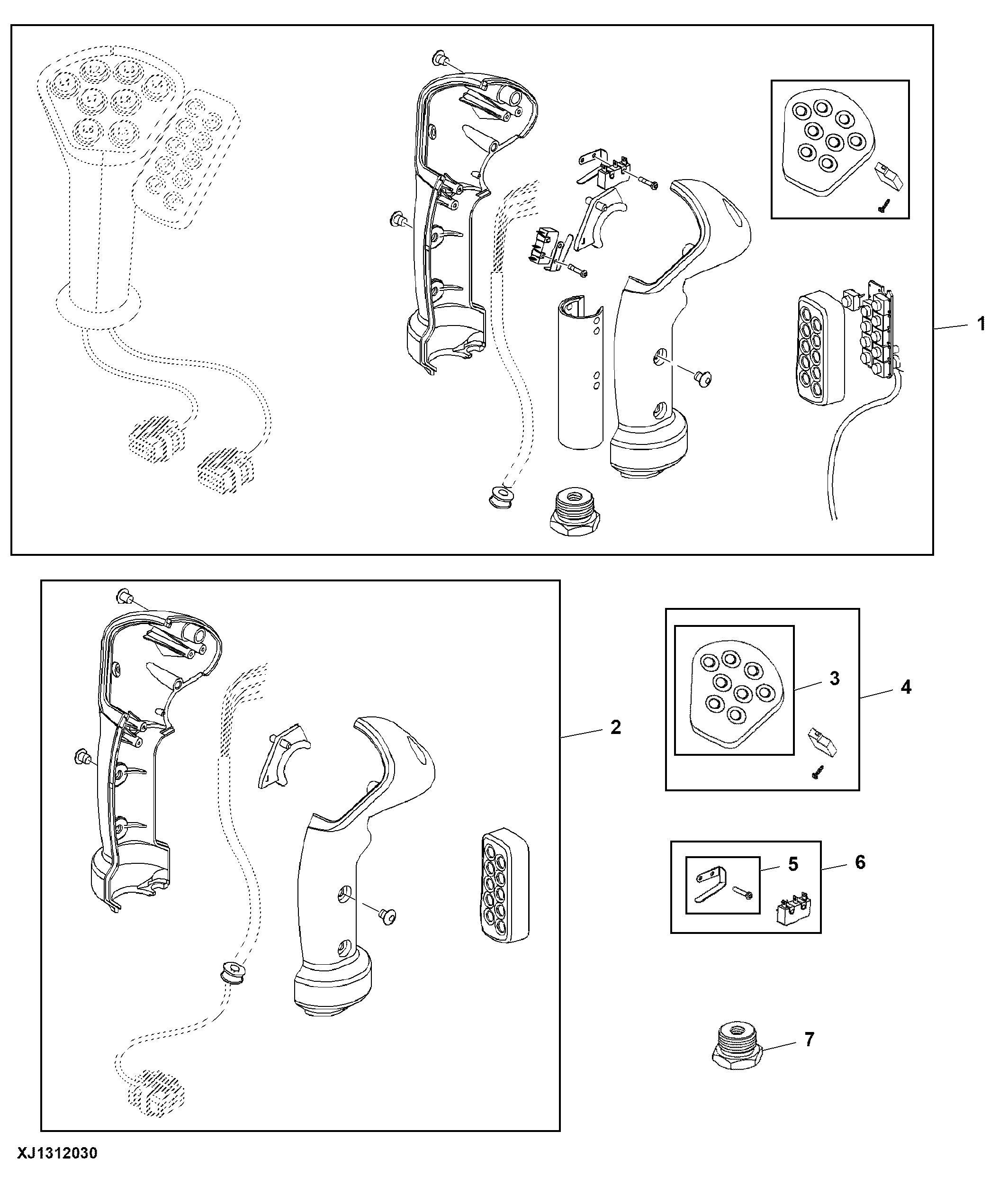

Non-CAN Handle, LH, Trigger Series — Three-Position Switch
