Открытый узел

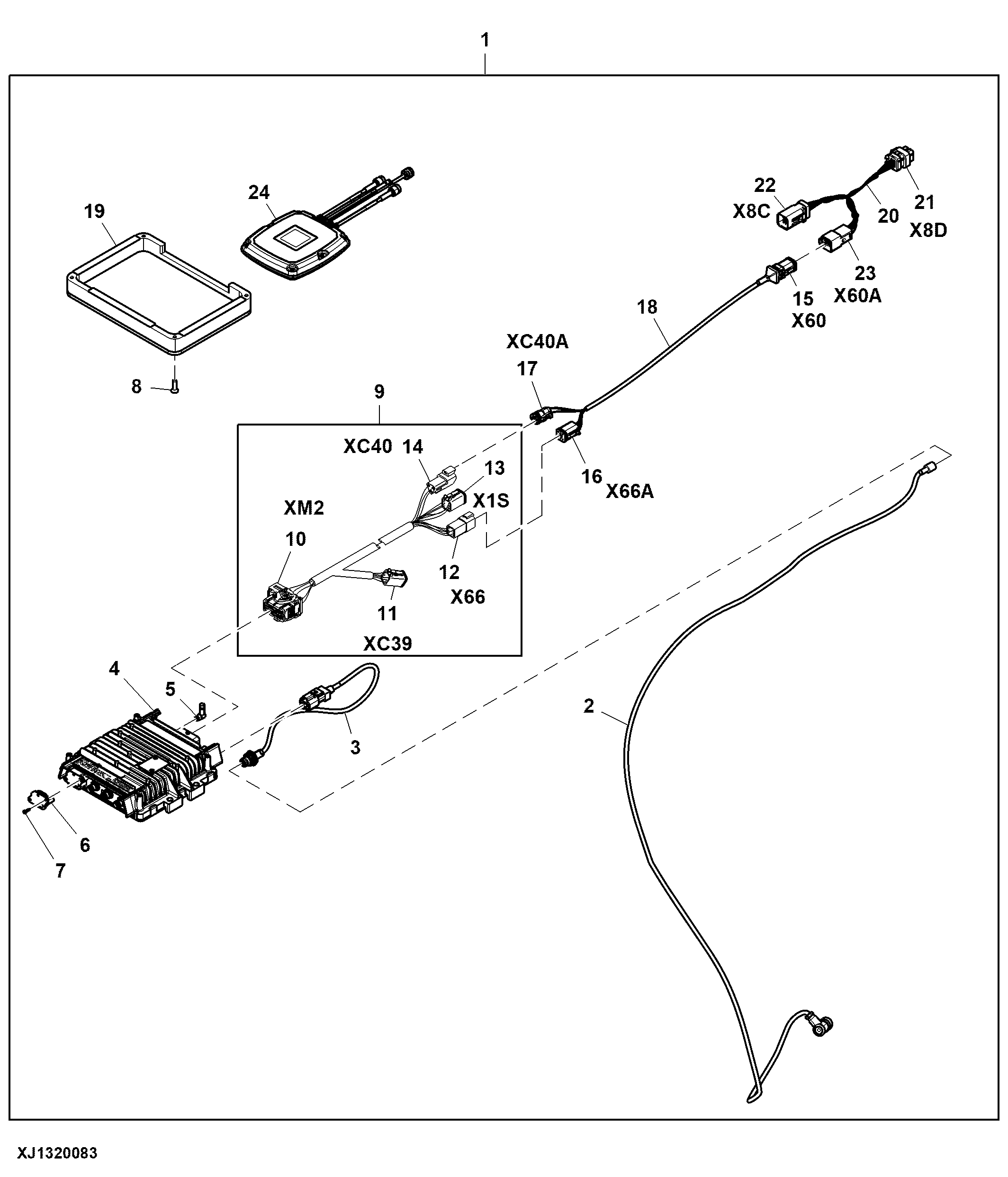

Modular Telematics Gateway (MTG) Controller 4G LTE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA136846	1	Antenna Kit	MTG 4G LTE, EU and russia
1	WA136847	1	Antenna Kit	MTG 4G LTE, USA is for rest of world+ assembly
2	PFP11275	1	Cable	M12, Ethernet cable
3	PFP16073	1	Cable	M12, 16 inch, Ethernet cable
4	PFA11990	1	Electronic Control Unit	MTG 4G LTE, US with Wi-Fi MIMO antenna USE WITH WA136847
4	PFA11991	1	Electronic Control Unit	MTG 4G LTE, US with Wi-Fi MIMO antenna USE WITH WA136846
5	PFA10884	1	Antenna	2.4 GHz, Stubby
6	PH60228055	1	Cover	Bronze
7	21H1442	2	Screw	0.112" X 3/8"
8	19M9268	4	Screw	M6 X 20
9	F676315	1	Wiring Harness	Modular telematics gateway
10	57M10618	4	Elec. Connector Housing	-
10	F017115	1	Tie Band	-
10	57M10334	5	Elec. Connector Cavity Plug	-
10	57M10333	35	Elec. Connector Cavity Plug	-
10	57M10590	4	Elec. Connector Housing	-
10	57M10613	1	Elec. Connector Housing	-
10	57M10615	1	Elec. Connector Housing	XM2
11	57M8657	1	Elec. Connector Housing	XC39, Modular telematics gateway
11	57M8537	2	Elec. Connector Terminal	-
11	57M8133	1	Elec.Connect Locking Device	-
11	R78069	5	Elec. Connector Cavity Plug	-
11	F663399	1	Resistor	-
12	57M8739	1	Elec. Connector Housing	X66
12	57M9525	3	Elec. Connector Terminal	-
12	57M7678	1	Elec. Connector Terminal	-
12	R78069	5	Elec. Connector Cavity Plug	-
13	57M8165	5	Elec. Connector Terminal	-
13	57M8013	1	Elec.Connect Locking Device	-
13	57M8634	1	Elec. Connector Housing	X1S, Satellite module
13	R78069	5	Elec. Connector Cavity Plug	-
14	57M8735	1	Elec. Connector Housing	XC40, 24 V
14	57M8134	1	Elec. Connector Terminal	-
14	57M8538	3	Elec. Connector Terminal	-
15	57M14415	1	Elec. Connector Housing	X60
15	Z64310	4	Elec. Connector Terminal	-
15	57M8263	8	Elec. Connector Terminal	-
15	WA138812	1	Boot	-
15	57M8013	1	Elec.Connect Locking Device	-
16	57M9957	1	Elec. Connector Housing	X66A
16	R78069	3	Elec. Connector Cavity Plug	-
16	57M8263	1	Elec. Connector Terminal	-
16	Z64310	2	Elec. Connector Terminal	-
16	57M8013	1	Elec.Connect Locking Device	-
17	57M8221	1	Elec.Connect Locking Device	-
17	57M8263	3	Elec. Connector Terminal	-
17	57M9652	1	Elec. Connector Terminal	XC40A
18	WA136845	1	Cable	Modular telematics gateway extension
19	WA138679	1	Guard	-
20	WA136849	1	Cable	MTG retrofit cable
21	57M9786	1	Elec. Connector Housing	X8D
21	Z64310	2	Elec. Connector Terminal	-
21	57M8263	4	Elec. Connector Terminal	-
22	57M9789	1	Elec. Connector Housing	X8C
22	Z64309	1	Elec. Connector Terminal	-
22	57M8264	4	Elec. Connector Terminal	-
23	57M9956	1	Elec. Connector Housing	X60A
23	Z64309	2	Elec. Connector Terminal	-
23	57M8264	4	Elec. Connector Terminal	-
23	57M7678	1	Elec. Connector Terminal	-
24	PFA10890	1	Antenna	MTG 4G LTE cell/GPS/Wi-Fi

Modular Telematics Gateway (MTG) Controller 4G LTE

Нет текстового описания
