Открытый узел

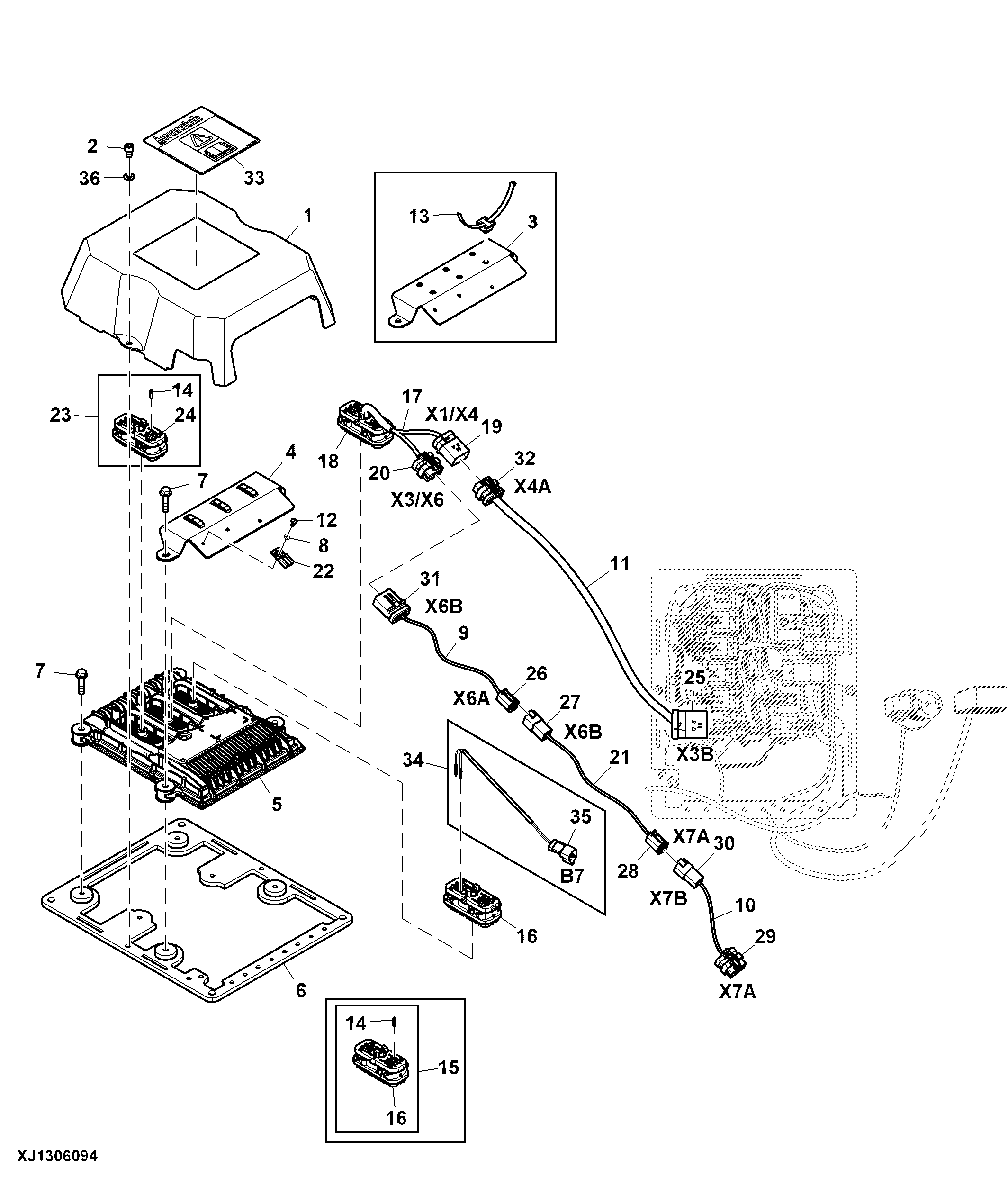

L22 Base Unit, Wheeled Harvester— Three-Position Switch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA125835	1	Cover	-
2	19M9121	2	Screw	M8 X 12
3	WA125785	1	Bracket	ORDER WA133316
4	WA133316	1	Bracket	-
5	F686044	1	Multi-Functional Controller	-
6	WA125831	1	Plate	-
7	19M8064	4	Cap Screw	M8 X 35
8	24M7117	3	Washer	4.300 X 9 X 0.800 mm
9	WA127422	1	Wiring Harness	Base to Boom (12 Plug to 6 Plug)
10	WA127423	1	Cable	Head to Boom (12 Plug to 6 Plug), Use For 600 Harvester Heads
10	F688642	1	Wiring Harness	Use For 200/400 Harvester Heads
11	WA123240	1	Wiring Harness	Cab to Base
12	19M9036	3	Screw	M4 X 10
13	T248286	6	Clamp	USE WITH WA125785
14	57M9814	1	Elec. Connector Cavity Plug	-
15	WA127421	1	Location/Assembly Drawing	J3, Blanking Plug ORDER WA133026
16	RE543731	1	Elec. Connector Accessory	Key 6, ECU 01
17	WA126205	1	Wiring Harness	J2 Base
18	RE543732	1	Elec. Connector Accessory	Key 5, ECU 0x
19	57M9805	1	Elec. Connector Housing	Tyco Ampseal 12 Pin Female Connector, Grey
19	57M8264	12	Elec. Connector Terminal	Gold Plated Pins 16-18 AWG
20	57M9803	1	Elec. Connector Housing	Tyco Ampseal 12 Pin Male Connector, Green
20	57M8263	12	Elec. Connector Terminal	Gold Plated Pins 16-18 AWG
21	WA126603	1	Wiring Harness	25 m, Boom Cable
22	57M10242	3	Elec. Connector Accessory	-
23	WA127420	1	Cable	J1, Blanking Plug
24	RE543733	1	Elec. Connector Accessory	Key 4 ECU 01
25	Z64309	1	Elec. Connector Terminal	-
25	57M10336	1	Elec. Connector Cavity Plug	-
25	57M9826	1	Elec. Connector Housing	Tyco Ampseal 12 Pin Female Connector, Green
25	57M8264	10	Elec. Connector Terminal	Gold Plated Pins 16-18 AWG
26	57M9957	1	Elec. Connector Housing	DT Size16 6 Way Male Connector
26	Z64310	3	Elec. Connector Terminal	-
26	57M8263	3	Elec. Connector Terminal	Gold Plated Pins 16-18 AWG
27	57M9956	1	Elec. Connector Housing	DT Size16 6 Way Female Connector
27	57M8264	4	Elec. Connector Terminal	Gold Plated Pins 16-18 AWG
27	Z64309	2	Elec. Connector Terminal	-
28	57M9957	1	Elec. Connector Housing	DT Size16, 6 Way Male Connector
28	Z64310	2	Elec. Connector Terminal	-
28	57M8263	4	Elec. Connector Terminal	Gold Plated Pins 16-18 AWG
29	57M9800	1	Elec. Connector Housing	-
29	57M8263	11	Elec. Connector Terminal	Gold Plated Pins 16-18 AWG
29	Z64310	1	Elec. Connector Terminal	-
30	Z64309	3	Elec. Connector Terminal	-
30	57M8264	3	Elec. Connector Terminal	Gold Plated Pins 16-18 AWG
30	57M9956	1	Elec. Connector Housing	DT Size16 6 Way Female Connector
31	57M9826	1	Elec. Connector Housing	Tyco Ampseal 12 Pin Female Connector, Green
31	57M8264	12	Elec. Connector Terminal	Gold Plated Pins 16-18 AWG
32	57M9801	1	Elec. Connector Housing	Tyco Ampseal 12 Pin Male Connector, Grey
32	57M8263	11	Elec. Connector Terminal	Gold Plated Pins 16-18 AWG
32	57M10336	1	Elec. Connector Cavity Plug	-
33	WA127889	1	Label	-
34	WA133026	1	Cable	Control Area Network 2
35	57M8735	1	Elec. Connector Housing	-
35	57M8263	2	Elec. Connector Terminal	-
35	57M8264	2	Elec. Connector Terminal	-
35	R78069	1	Elec. Connector Cavity Plug	-
35	57M7676	1	Elec. Connector Terminal	-
35	57M15264	1	Elec. Connector Accessory	-
36	24M7509	2	Washer	8.400 X 16 X 1.600 mm

L22 Base Unit, Wheeled Harvester— Three-Position Switch

Нет текстового описания
