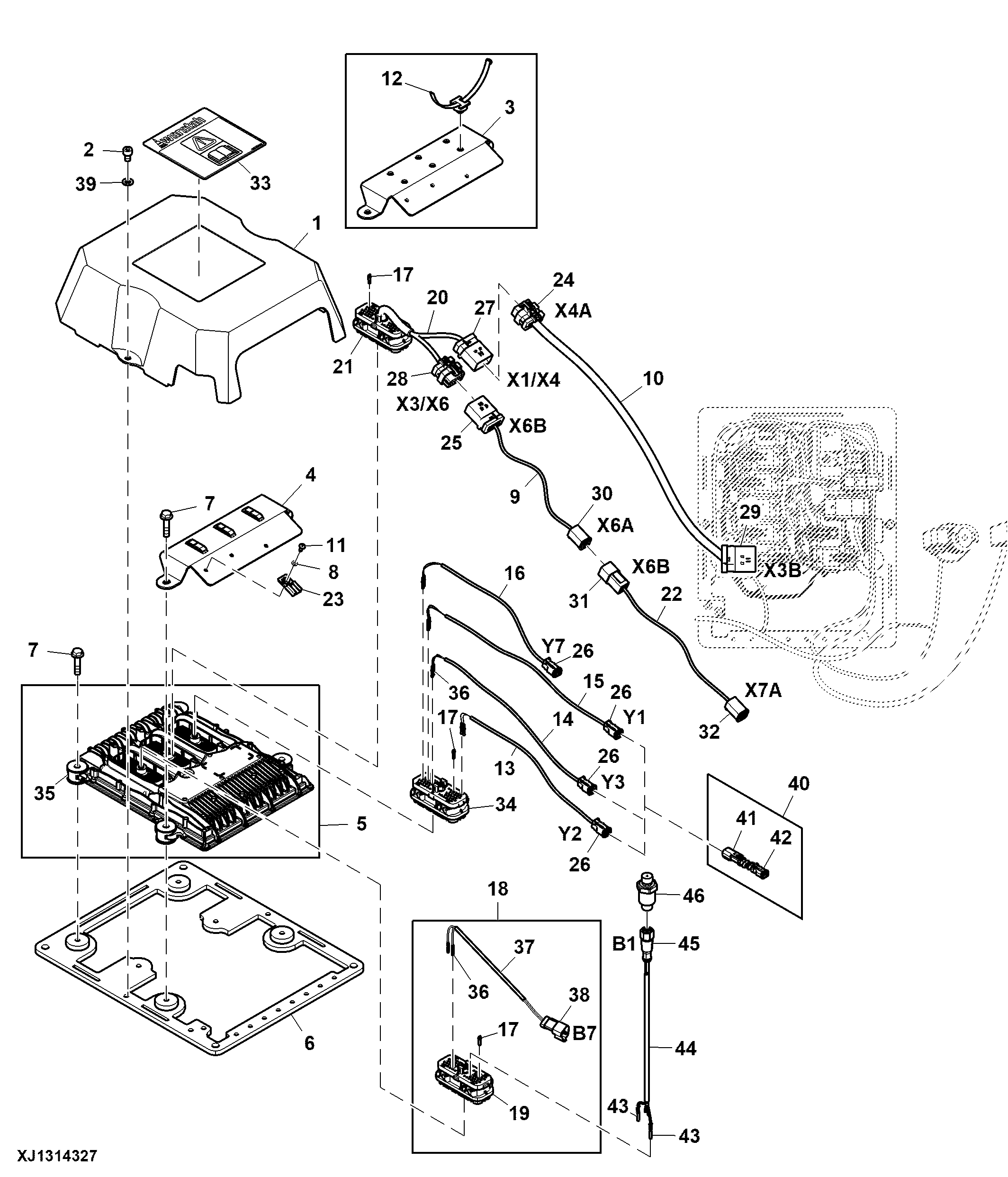

L22 Base Unit, Tracked Harvester — Three-Position Switch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA125835	1	Cover	-
2	19M9121	2	Screw	M8 X 12
3	WA125785	1	Bracket	ORDER WA133316
4	WA133316	1	Bracket	-
5	F686044	1	Multi-Functional Controller	-
6	WA125831	1	Plate	-
7	19M8064	4	Cap Screw	M8 X 35
8	24M7117	3	Washer	4.300 X 9 X 0.800 mm
9	WA127422	1	Wiring Harness	Base to boom INCLUDES 57M9826 AND 57M9957
10	WA123240	1	Wiring Harness	Cab to base INCLUDES 57M9801 AND 57M9826
11	19M9036	3	Screw	M4 X 10
12	T248286	6	Clamp	USE WITH WA125785
13	WA131272	1	Wiring Harness	Cable pump two INCLUDES 57M8263 AND 57M7534
14	WA131273	1	Wiring Harness	Cable pump three INCLUDES 57M8263 AND 57M7534
15	WA131271	1	Wiring Harness	Cable pump one INCLUDES 57M8263 AND 57M7534
16	WA131274	1	Wiring Harness	Cable bail lock INCLUDES 57M8263 AND 57M7534
17	57M9814	1	Elec. Connector Cavity Plug	-
18	WA133079	1	Wiring Harness	J3 plug CAN integration
19	RE543731	1	Elec. Connector Accessory	Key 6, ECU 01
20	WA126205	1	Wiring Harness	J2 base
21	RE543732	1	Elec. Connector Accessory	Key 5, ECU 0x
22	WA126603	1	Wiring Harness	25 m, Boom cable INCLUDES 57M9956 AND 57M9957
23	57M10242	3	Elec. Connector Accessory	Anchor
24	57M9801	1	Elec. Connector Housing	Tyco ampseal 12 pin male connector Grey
24	57M8263	10	Elec. Connector Terminal	Gold plated socket 16-18 AWG
24	Z64310	2	Elec. Connector Terminal	Gold plated socket 16 AWG Large
25	57M9826	1	Elec. Connector Housing	Tyco ampseal 12 pin female connector Green
25	57M8264	11	Elec. Connector Terminal	Gold plated 16-18 AWG pin
25	57M10336	1	Elec. Connector Cavity Plug	-
26	57M7534	4	Elec. Connector Housing	Deutch 2 way male connector Grey
26	57M7620	1	Electrical Connector Assy	Wedge
26	57M8263	2	Elec. Connector Terminal	Gold plated socket 16-18 AWG
27	57M9805	1	Elec. Connector Housing	Tyco ampseal 12 pin female connector Grey
27	57M8264	12	Elec. Connector Terminal	Gold plated 16-18 AWG pin
28	57M9803	1	Elec. Connector Housing	Tyco ampseal 12 pin male connector Green
28	57M8263	12	Elec. Connector Terminal	Gold plated socket 16-18 AWG
29	57M9826	1	Elec. Connector Housing	Tyco ampseal 12 pin female connector Green
29	Z64309	2	Elec. Connector Terminal	Gold plated pin 16 AWG Large
29	57M8264	10	Elec. Connector Terminal	Gold Plated 16-18 AWG Pin
30	57M9957	1	Elec. Connector Housing	DT size16 6 way male connector
30	Z64310	2	Elec. Connector Terminal	Gold plated socket 16 AWG Large
30	57M8263	4	Elec. Connector Terminal	Gold plated socket 16-18 AWG
31	57M9956	1	Elec. Connector Housing	DT size16 6 way female connector
31	57M8264	4	Elec. Connector Terminal	Gold plated pin 16-18 AWG
31	Z64309	2	Elec. Connector Terminal	Gold plated pin 16 AWG Large
32	57M9957	1	Elec. Connector Housing	DT size16 6 way male connector
32	57M8263	4	Elec. Connector Terminal	Gold plated socket 16-18 AWG
32	Z64310	2	Elec. Connector Terminal	-
33	WA127889	1	Label	-
34	RE543733	1	Elec. Connector Accessory	Key 4 ECU 01
35	PH60219155	4	Isolator	Shock absorber
36	57M8263	8	Elec. Connector Terminal	Gold plated pins 16-18 AWG
37	WA133026	1	Cable	CAN integration INCLUDES 57M8263 AND 57M8735
38	57M15264	1	Elec. Connector Accessory	Cover
38	57M7676	1	Elec. Connector Terminal	Wedge
38	57M8264	2	Elec. Connector Terminal	-
38	57M8263	2	Elec. Connector Terminal	-
38	57M8735	1	Elec. Connector Housing	-
38	R78069	1	Elec. Connector Cavity Plug	-
39	24M7509	2	Washer	8.400 X 16 X 1.600 mm
40	WA135761	3	Converter	24V to 5V PWM converter for 5V pumps, service-only option
41	WA135707	1	Resistor	-
41	WA135708	1	Resistor	-
41	57M7621	1	Elec.Connect Locking Device	-
41	57M8264	2	Elec. Connector Terminal	-
41	57M16211	3	Elec. Connector Housing	-
42	57M13029	3	Elec. Connector Housing	-
42	57M8263	2	Elec. Connector Terminal	-
42	57M8022	1	Elec.Connect Locking Device	-
43	57M9808	2	Elec. Connector Terminal	-
44	WA131669	1	Wiring Harness	Main base pressure sensor (option) INCLUDES 57M9808 AND WA132942
45	WA132942	1	Cable	M12 connector cable
46	F687525	1	Sensor	600 bar
