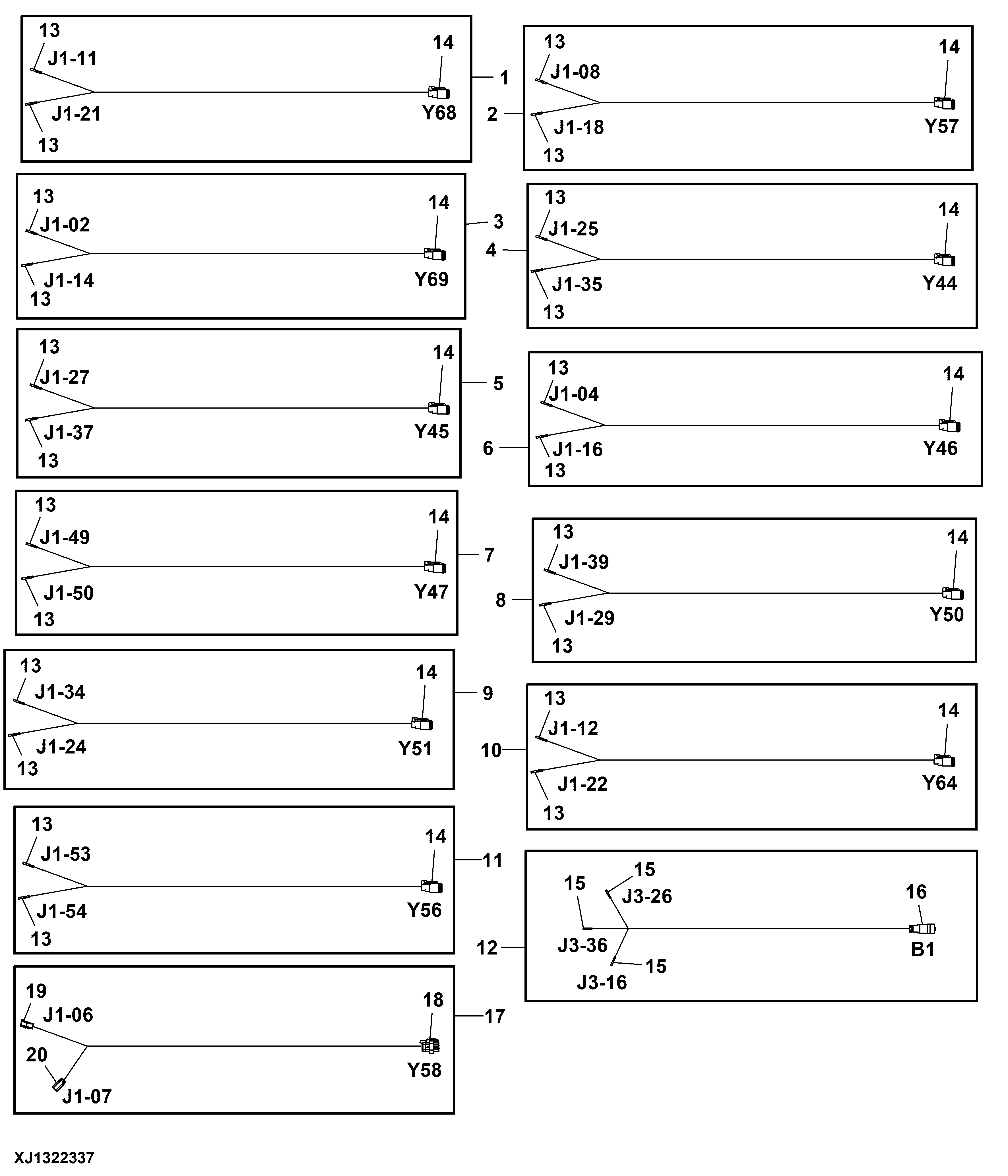

L-22 Base Wiring Loom Option Continued

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA131413	1	Wiring Harness	General output two
2	WA131414	1	Wiring Harness	General output three
3	WA131415	1	Wiring Harness	General output four
4	WA131418	1	Wiring Harness	Levelling one
5	WA131419	1	Wiring Harness	Levelling two
6	WA131420	1	Wiring Harness	Levelling three
7	WA131421	1	Wiring Harness	Levelling four
8	WA131546	1	Wiring Harness	Grapple open
9	WA131547	1	Wiring Harness	Grapple close
10	WA131548	1	Wiring Harness	Stump spray
11	WA131549	1	Wiring Harness	Stump spray enable
12	WA131669	1	Wiring Harness	Main base pressure sensor option
13	57M8263	2	Elec. Connector Terminal	-
14	57M7534	1	Elec. Connector Housing	-
15	57M8263	3	Elec. Connector Terminal	-
16	WA132942	1	Cable	M12 connector cable
17	WA136849	1	Cable	General output one
18	57M9786	1	Elec. Connector Housing	-
18	Z64310	2	Elec. Connector Terminal	-
18	57M8263	4	Elec. Connector Terminal	-
19	57M9789	1	Elec. Connector Housing	-
19	Z64309	1	Elec. Connector Terminal	-
19	57M8264	4	Elec. Connector Terminal	-
20	57M9956	1	Elec. Connector Housing	-
20	Z64309	2	Elec. Connector Terminal	-
20	57M8264	4	Elec. Connector Terminal	-
20	57M7678	1	Elec. Connector Terminal	-

L-22 Base Wiring Loom Option Continued
