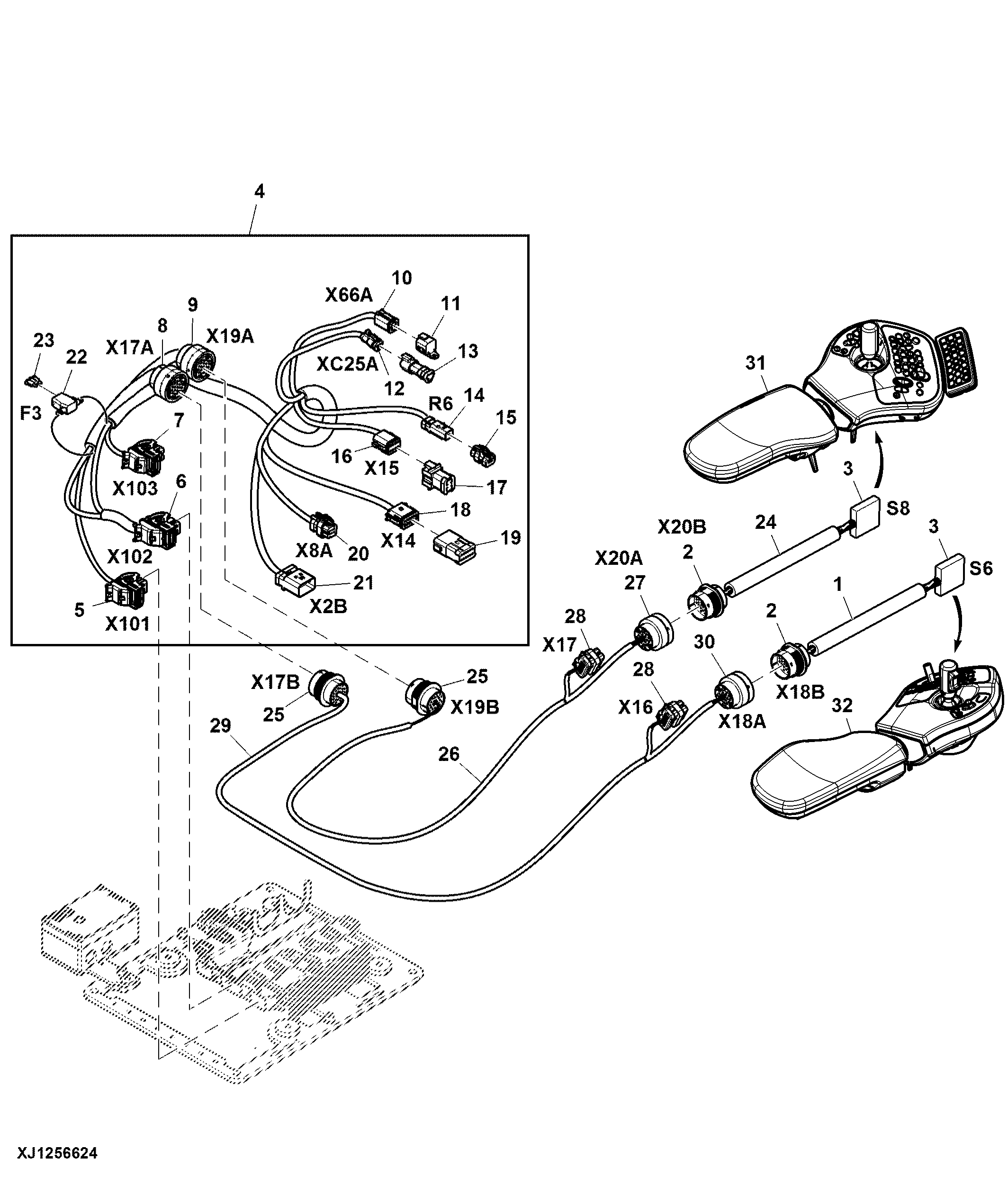

Cab Unit Wiring Harness, Wheeled Harvester — Three-Position Switch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA128974	1	Wiring Harness	LH Wheel Cable
2	57M7752	2	Elec. Connector Housing	X18B LH Side and X20B RH Side
2	57M8264	18	Elec. Connector Terminal	-
2	Z78008	2	Elec. Connector Seal	-
2	57M8035	1	Nut	-
2	57M9061	1	Elec.Connect Locking Device	-
3	F059540	2	CONNECTOR	S6 LH Side and S8 RH Side
3	F059539	21	Socket	-
4	WA128975	1	Wiring Harness	J2 Wheel
5	57M10612	1	Elec. Connector Housing	X101
5	57M10334	3	Elec. Connector Cavity Plug	-
5	57M10331	5	Elec. Connector Terminal	-
5	57M10333	15	Elec. Connector Cavity Plug	-
5	57M10330	9	Elec. Connector Terminal	-
5	57M10604	1	Elec. Connector Housing	-
6	57M10333	16	Elec. Connector Cavity Plug	-
6	57M10334	1	Elec. Connector Cavity Plug	-
6	57M10331	7	Elec. Connector Terminal	-
6	57M10330	24	Elec. Connector Terminal	-
6	57M10615	1	Elec. Connector Housing	X102
6	57M10613	1	Elec. Connector Housing	-
7	57M10606	1	Elec. Connector Housing	X103
7	57M10604	1	Elec. Connector Housing	-
7	57M10330	6	Elec. Connector Terminal	-
7	57M10333	18	Elec. Connector Cavity Plug	-
7	57M10334	8	Elec. Connector Cavity Plug	-
8	R78069	13	Elec. Connector Cavity Plug	-
8	57M8263	18	Elec. Connector Terminal	-
8	57M7751	1	Elec. Connector Housing	X17A
9	57M7751	1	Elec. Connector Housing	X19A
9	57M8165	19	Elec. Connector Terminal	-
9	R78069	12	Elec. Connector Cavity Plug	-
10	57M7630	1	Electrical Connector Assy	X66A
10	R78069	3	Elec. Connector Cavity Plug	-
10	57M7546	3	Elec. Connector Terminal	-
11	57M11287	1	Elec. Connector Accessory	-
12	R78069	1	Elec. Connector Cavity Plug	-
12	57M7546	1	Elec. Connector Terminal	-
12	57M8637	1	Elec. Connector Housing	XC25A
12	57M8165	2	Elec. Connector Terminal	-
13	57M13171	1	Elec. Connector Housing	-
14	57M9776	1	Elec. Connector Housing	R6
14	57M9386	2	Elec. Connector Terminal	-
15	57M11134	1	Elec. Connector Housing	-
16	57M9032	1	Elec. Connector Housing	X15
16	57M8263	6	Elec. Connector Terminal	-
16	R78069	2	Elec. Connector Cavity Plug	-
17	57M13058	1	Elec. Connector Housing	-
18	57M8263	8	Elec. Connector Terminal	-
18	57M8963	1	Elec. Connector Housing	X14
19	57M10325	1	Elec. Connector Housing	-
20	57M9786	1	Elec. Connector Housing	X8A
20	57M8263	6	Elec. Connector Terminal	-
21	57M9804	3	Elec. Connector Housing	X2B
21	57M10730	11	Elec. Connector Terminal	-
21	57M10336	1	Elec. Connector Cavity Plug	-
22	57M13123	1	Elec. Connector Accessory	-
23	57M12652	1	Elec. Connector Accessory	10 A
24	WA128973	1	Wiring Harness	RH Wheel Cable
25	57M8164	19	Elec. Connector Terminal	-
25	57M8035	1	Nut	-
25	57M9061	1	Elec.Connect Locking Device	-
25	Z78008	12	Elec. Connector Seal	-
25	57M7752	2	Elec. Connector Housing	X17B LH Side and X20B RH Side
26	WA128976	1	Wiring Harness	RH Wheel Extension Cable
27	57M7751	1	Elec. Connector Housing	X20A
27	57M8165	19	Elec. Connector Terminal	-
27	Z78008	12	Elec. Connector Seal	-
28	57M9800	2	Elec. Connector Housing	X16 LH Side and X17 RH Side
28	Z78008	12	Elec. Connector Seal	-
28	57M10336	4	Elec. Connector Cavity Plug	-
28	57M9809	8	Elec. Connector Terminal	-
29	WA128977	1	Wiring Harness	LH Wheel Extension Cable
30	57M7751	1	Elec. Connector Housing	X18A
30	57M8263	18	Elec. Connector Terminal	-
30	Z78008	13	Elec. Connector Seal	-
31	F618264	1	CONTROL	LH control handle
32	F618265	1	CONTROL	RH control handle
