Cab Unit, Non-CAN Trigger Series Handles — Three-Position Switch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8711	2	Screw	M8 X 50
2	19M9121	4	Screw	M8 X 12
3	24M7509	4	Washer	8.400 X 16 X 1.600 mm
4	57M9940	8	Elec. Connector Accessory	-
5	F065193	1	Electronic Control Unit	40MHz, Controller
5	F672517	1	Electronic Control Unit	64MHz, Controller
6	T116119	2	Clamp	-
7	WA100426	2	Lock Washer	5/16", Disc-lock
8	WA123510	1	Plate	Connector Mounting
9	WA125831	1	Plate	Controller Mounting
10	WA125835	1	Cover	Controller
11	WA127889	1	Label	-
12	14M7298	8	Flange Nut	M8
13	14M7303	3	Flange Nut	M6
14	19M7768	3	Screw	M6 X 16
15	24M7293	3	Washer	6.500 X 13 X 1.600 mm
16	57M9384	1	Elec. Connector Accessory	-
17	WA123227	1	Wiring Harness	Cab Flex Module Wiring Loom (J1) INCLUDES 57M10612 AND 57M9800
18	WA123228	1	Wiring Harness	Cab Flex Module Wiring Loom (J2) Components on Separate Page J2 cab unit wiring harness
19	WA123230	1	Wiring Harness	Cab Flex Module Wiring Loom (J3) INCLUDES 57M10606 AND
20	57M10612	1	Elec. Connector Housing	X101
20	57M10331	5	Elec. Connector Terminal	-
20	57M10330	9	Elec. Connector Terminal	-
20	57M10334	3	Elec. Connector Cavity Plug	-
20	57M10604	1	Elec. Connector Housing	-
20	57M10333	15	Elec. Connector Cavity Plug	-
21	57M8736	2	Elec. Connector Accessory	-
22	57M10606	1	Elec. Connector Housing	X103
22	57M10604	1	Elec. Connector Housing	-
22	57M10334	4	Elec. Connector Cavity Plug	-
22	57M10330	9	Elec. Connector Terminal	-
22	57M10331	4	Elec. Connector Terminal	-
23	57M9800	2	Elec. Connector Housing	Trigger series right control handle X9A
23	57M8263	12	Elec. Connector Terminal	-
24	57M9802	1	Elec. Connector Housing	Trigger Series RH Pre-Select Pad X13A
24	57M8263	11	Elec. Connector Terminal	-
24	57M10336	1	Elec. Connector Cavity Plug	-
25	WA127214	1	Wiring Harness	Components on separate page J2 cab unit wiring harness
26	57M9802	1	Elec. Connector Housing	Trigger Series LH Pre-Select Pad X12A
26	57M8263	11	Elec. Connector Terminal	-
26	57M10336	1	Elec. Connector Cavity Plug	-

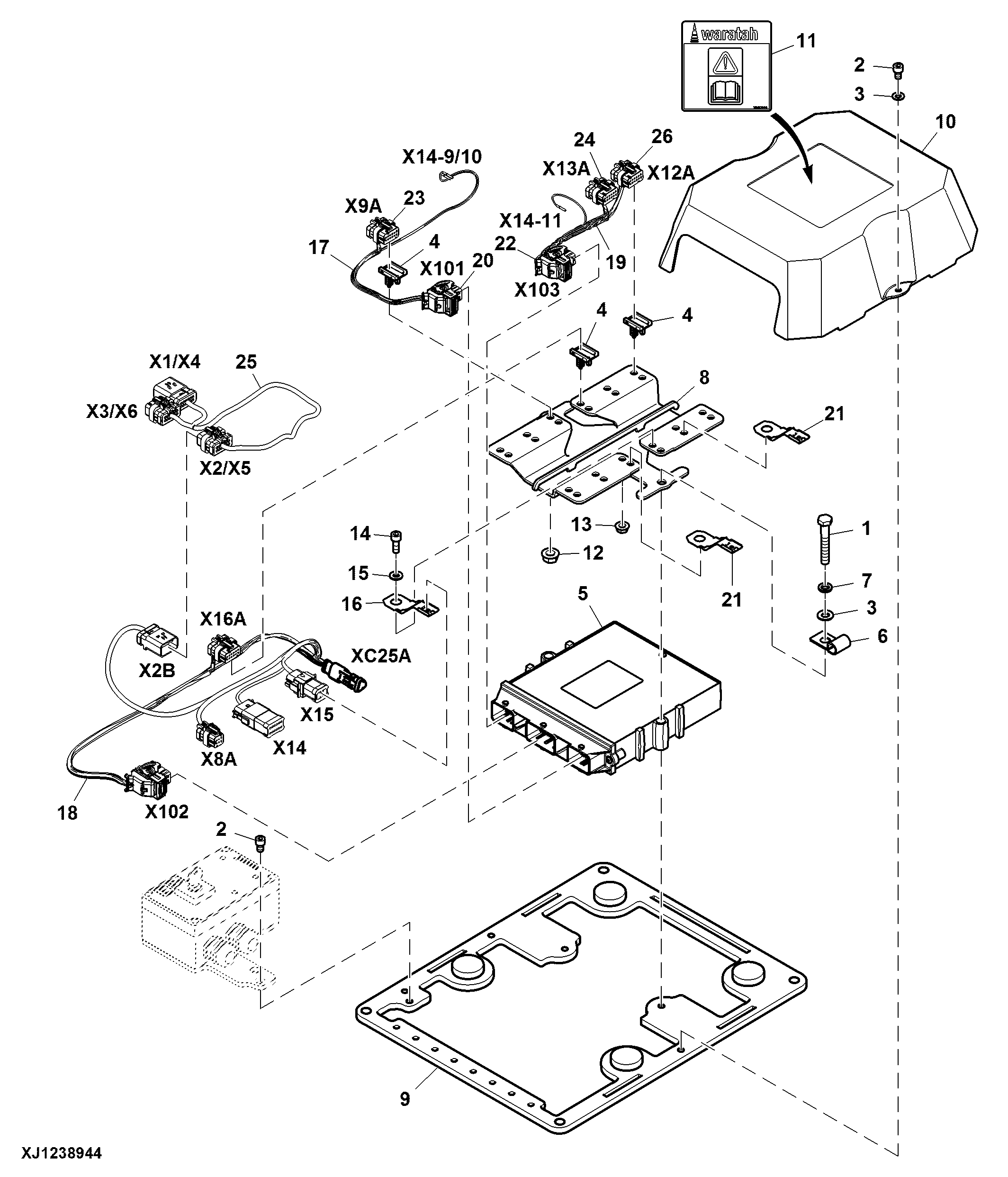

Cab Unit, Non-CAN Trigger Series Handles — Three-Position Switch
