Cab Unit, Non-CAN Post Series Handle — Two-Position Switch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

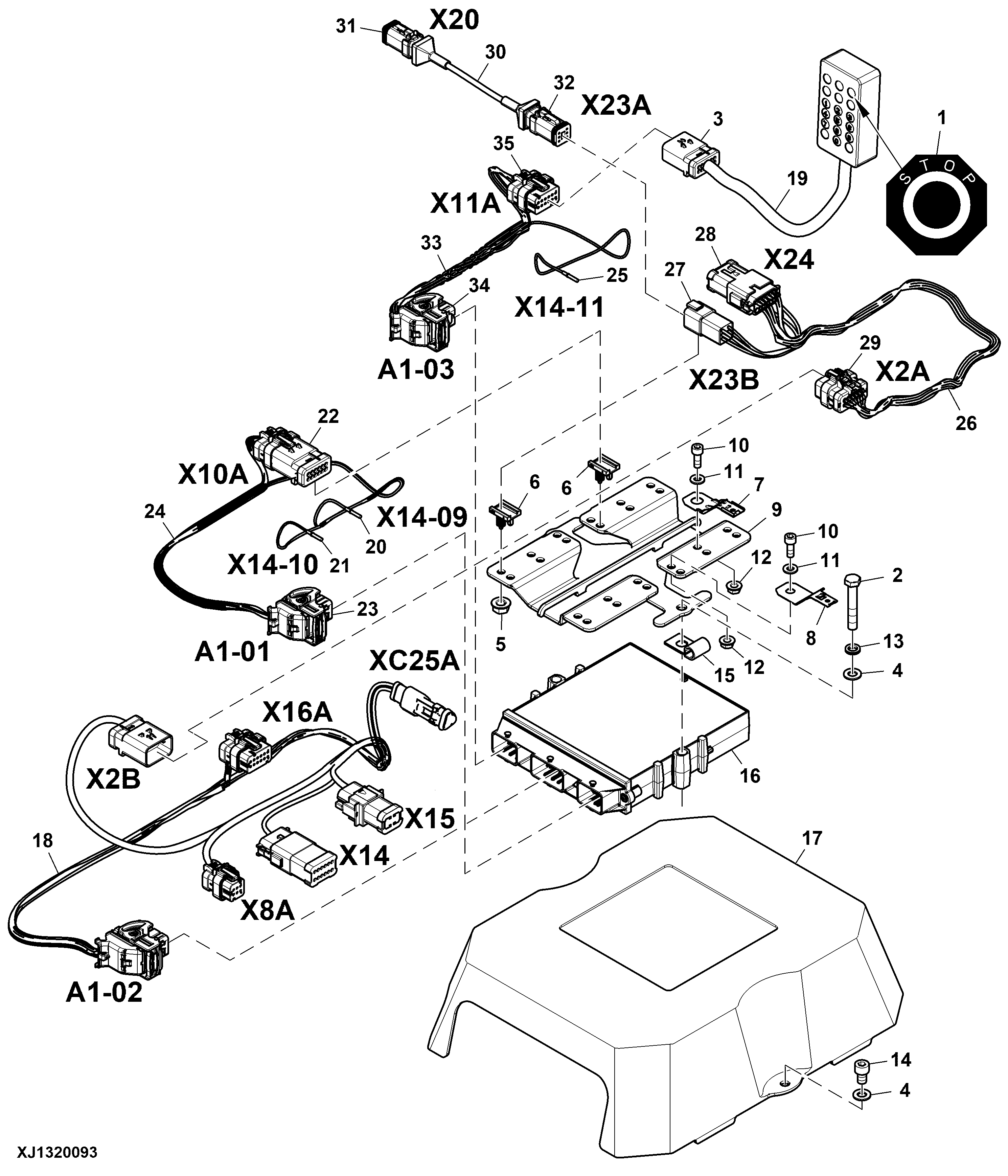

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA137964	2	Label	Stop button
2	19M7164	2	Cap Screw	M8 X 50
3	57M9804	1	Elec. Connector Housing	-
4	24M7509	4	Washer	8.400 X 16 X 1.600 mm
5	14M7298	8	Flange Nut	M8, Hex flange
6	57M9940	8	Elec. Connector Accessory	-
7	57M8736	2	Elec. Connector Accessory	-
8	57M9384	1	Elec. Connector Accessory	-
9	WA123510	1	Plate	-
10	19M7768	3	Screw	M6 X 16
11	24M7293	3	Washer	6.500 X 13 X 1.600 mm
12	14M7303	3	Flange Nut	M6, Hex flange
13	WA100426	2	Lock Washer	5/16", Lock washer
14	19M9121	4	Screw	M8 X 12
15	T116119	2	Clamp	-
16	F672517	1	Electronic Control Unit	64 mhz
17	WA125835	1	Cover	-
18	WA123228	1	Wiring Harness	Cab / J2 components on separate page J2 cab unit wiring harness
19	WA133151	1	Pad	Handle pre-select pad (H16)
20	57M8263	1	Elec. Connector Terminal	X14–09, 24 V, Common connector
21	57M8263	1	Elec. Connector Terminal	X14–10, 24 V, Common connector
22	57M9800	1	Elec. Connector Housing	X10A
22	57M8263	8	Elec. Connector Terminal	-
22	57M10336	4	Elec. Connector Cavity Plug	-
23	57M10331	3	Elec. Connector Terminal	-
23	57M10604	1	Elec. Connector Housing	-
23	57M10334	5	Elec. Connector Cavity Plug	-
23	57M10333	17	Elec. Connector Cavity Plug	-
23	57M10514	7	Elec. Connector Terminal	-
23	57M10612	1	Elec. Connector Housing	A1–01, J1 cab controller
24	WA123226	1	Wiring Harness	J1 Right control handle
25	57M8263	1	Elec. Connector Terminal	X14–11, 24 V, Common connector
26	WA136148	1	Cable	WAC interface
27	57M9956	1	Elec. Connector Housing	X23B
27	57M7678	1	Elec. Connector Terminal	-
27	Z64309	2	Elec. Connector Terminal	-
27	57M8264	4	Elec. Connector Terminal	-
28	57M11371	1	Elec. Connector Housing	X24
28	Z64310	2	Elec. Connector Terminal	-
28	57M8263	7	Elec. Connector Terminal	-
28	R78069	3	Elec. Connector Cavity Plug	-
28	57M8009	1	Elec.Connect Locking Device	-
28	57M16225	1	Elec. Connector Housing	-
29	57M9800	1	Elec. Connector Housing	X2A
29	57M8263	11	Elec. Connector Terminal	-
29	57M10336	1	Elec. Connector Cavity Plug	-
30	WA136475	1	Cable	WAC bus extension
31	57M8013	1	Elec.Connect Locking Device	-
31	WA138812	1	Boot	-
31	57M8263	8	Elec. Connector Terminal	-
31	57M14415	1	Elec. Connector Housing	X20
31	Z64310	4	Elec. Connector Terminal	-
32	57M14415	1	Elec. Connector Housing	X23A
32	Z64310	2	Elec. Connector Terminal	-
32	57M8263	4	Elec. Connector Terminal	-
32	WA138812	1	Boot	-
32	57M8013	1	Elec.Connect Locking Device	-
33	WA123229	1	Wiring Harness	J3 cab controller
34	57M10606	1	Elec. Connector Housing	A1–03
34	57M10330	7	Elec. Connector Terminal	-
34	57M10617	6	Elec. Connector Housing	-
34	57M10333	17	Elec. Connector Cavity Plug	-
34	57M10334	2	Elec. Connector Cavity Plug	-
34	57M10604	1	Elec. Connector Housing	-
35	57M9800	1	Elec. Connector Housing	Preselect pads
35	57M8263	12	Elec. Connector Terminal	X11A
