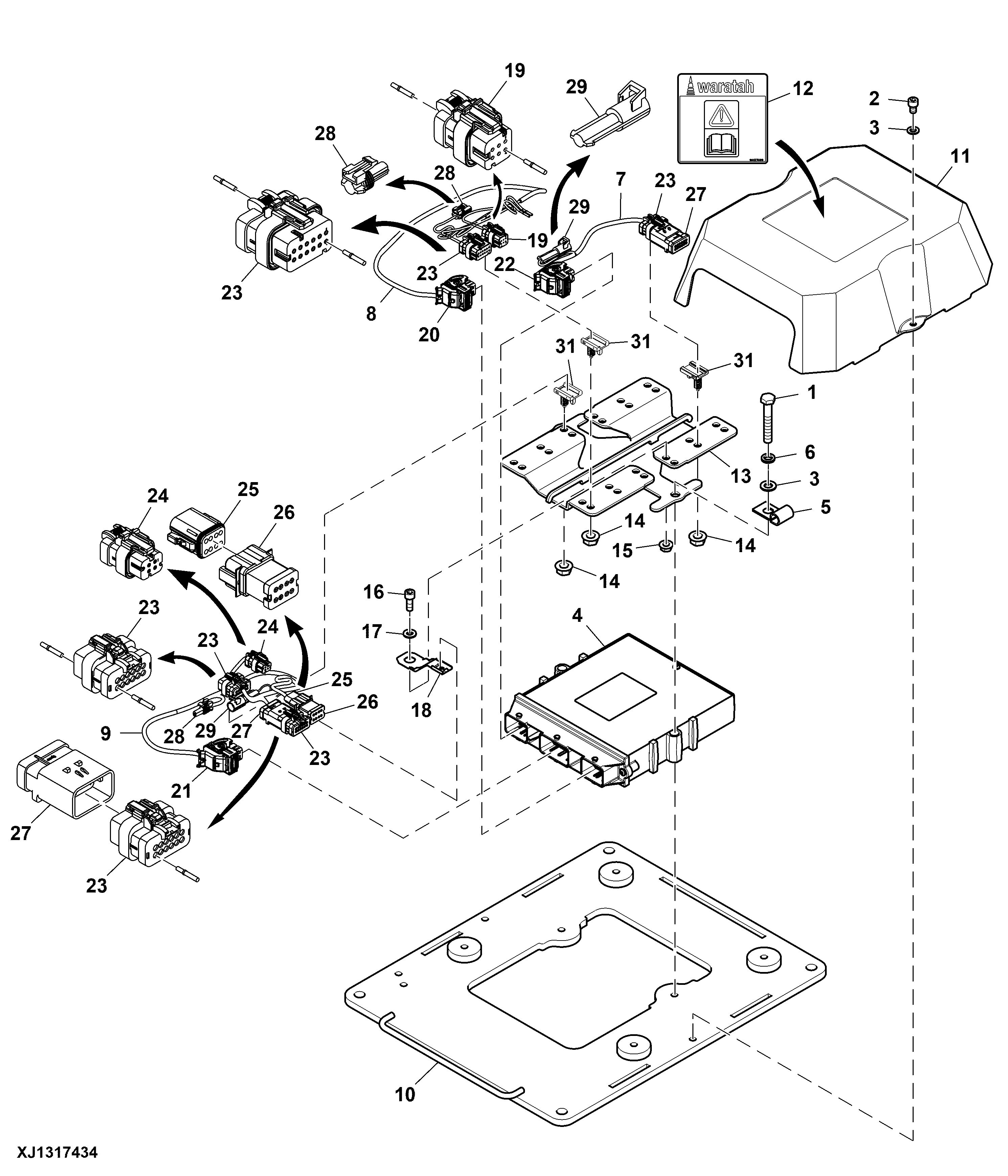

Base Flex Module Wiring Loom — Three-Position Switch ( - XXXXXX)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8711	2	Screw	M8 X 50
2	19M9398	2	Screw	M8 X 12
3	24M7509	4	Washer	8.400 X 16 X 1.600 mm
4	F065193	1	Electronic Control Unit	-
5	T116119	2	Clamp	-
6	WA100426	2	Lock Washer	5/16", Disc lock
7	WA127215	1	Cable	Base flex module wiring loom (J1)
8	WA126872	1	Cable	Base flex module wiring loom (J3)
9	WA126871	1	Cable	Base flex module wiring loom (J2)
10	WA125831	1	Plate	Controller mounting
11	WA125835	1	Cover	Controller
12	WA127889	1	Label	-
13	WA123510	1	Plate	Controller mounting
14	14M7298	8	Flange Nut	M8
15	14M7303	1	Flange Nut	M6
16	19M7768	1	Screw	M6 X 16
17	24M7293	1	Washer	6.500 X 13 X 1.600 mm
18	57M8736	1	Elec. Connector Accessory	-
19	57M9940	5	Elec. Connector Accessory	-
20	57M10612	1	Elec. Connector Housing	32 way Molex plug, brown (J1)
20	57M10604	1	Elec. Connector Housing	Small cap (J1)
20	57M10334	5	Elec. Connector Cavity Plug	1.5 mm, Blanking plug, orange
20	57M10333	17	Elec. Connector Cavity Plug	0.6 mm, Blanking plug, white
20	57M10330	7	Elec. Connector Terminal	0.635 mm, Socket
20	57M10331	3	Elec. Connector Terminal	1.5 mm, Socket
21	57M10331	7	Elec. Connector Terminal	1.5 mm, Socket
21	57M10330	15	Elec. Connector Terminal	0.635 mm, Socket
21	57M10333	25	Elec. Connector Cavity Plug	0.6 MM, Blanking plug, white
21	57M10613	1	Elec. Connector Housing	Large cap (J2)
21	57M10615	1	Elec. Connector Housing	48 way Molex plug, brown (J2)
21	57M10334	1	Elec. Connector Cavity Plug	1.5 mm, Blanking plug, orange
22	57M10606	1	Elec. Connector Housing	32 way Molex plug, blue (J3)
22	57M10604	1	Elec. Connector Housing	Small cap (J3)
22	57M10334	2	Elec. Connector Cavity Plug	1.5 mm, Blanking plug, orange
22	57M10333	17	Elec. Connector Cavity Plug	0.6 mm, Blanking plug, white
22	57M10330	7	Elec. Connector Terminal	0.635 mm, Socket
22	57M10331	6	Elec. Connector Terminal	1.5 mm, Socket
23	57M9800	4	Elec. Connector Housing	Tyco ampseal 12 pin male connector, red
23	57M8263	44	Elec. Connector Terminal	Gold plated socket 16-18 awg
23	57M10336	4	Elec. Connector Cavity Plug	Sealing plug, SZ 20 cavity
24	57M9817	1	Elec. Connector Housing	Tyco ampseal 4 pin male connector, red
24	57M8263	4	Elec. Connector Terminal	Gold plated socket 16-18 awg
25	R78069	2	Elec. Connector Cavity Plug	Plug
25	57M9032	1	Elec. Connector Housing	Deutsch DT 8 way male connector, grey plastic
25	57M8263	6	Elec. Connector Terminal	Gold plated socket 16-18 awg
26	57M10326	1	Elec. Connector Housing	Deutsch 8 pin female connector, grey
26	57M8011	1	Elec.Connect Locking Device	Deutsch 8 pin male connector, grey
27	57M9804	2	Elec. Connector Housing	Tyco Ampseal 12 Pin Female Connector, Red
27	57M8264	22	Elec. Connector Terminal	Gold plated socket 16-18 awg
27	57M10336	2	Elec. Connector Cavity Plug	Sealing plug, SZ 20 cavity
28	57M7297	1	Elec. Connector Terminal	-
28	57M7295	1	Elec.Connect Locking Device	-
28	57M9219	1	Elec. Connector Seal	-
28	57M7294	1	Elec. Connector Housing	In-line
29	57M7293	1	Elec. Connector Housing	In-line
29	57M7285	1	Elec. Connector Terminal	-
29	57M7295	1	Elec.Connect Locking Device	-
30	57M9750	1	Elec. Connector Housing	Tyco ampseal 6 pin male connector, red
30	57M9753	1	Elec. Connector Housing	Tyco ampseal 6 pin female connector, red
31	57M9940	3	Elec. Connector Accessory	-
