Открытый узел

Hydraulic Installation Kit, Standard

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

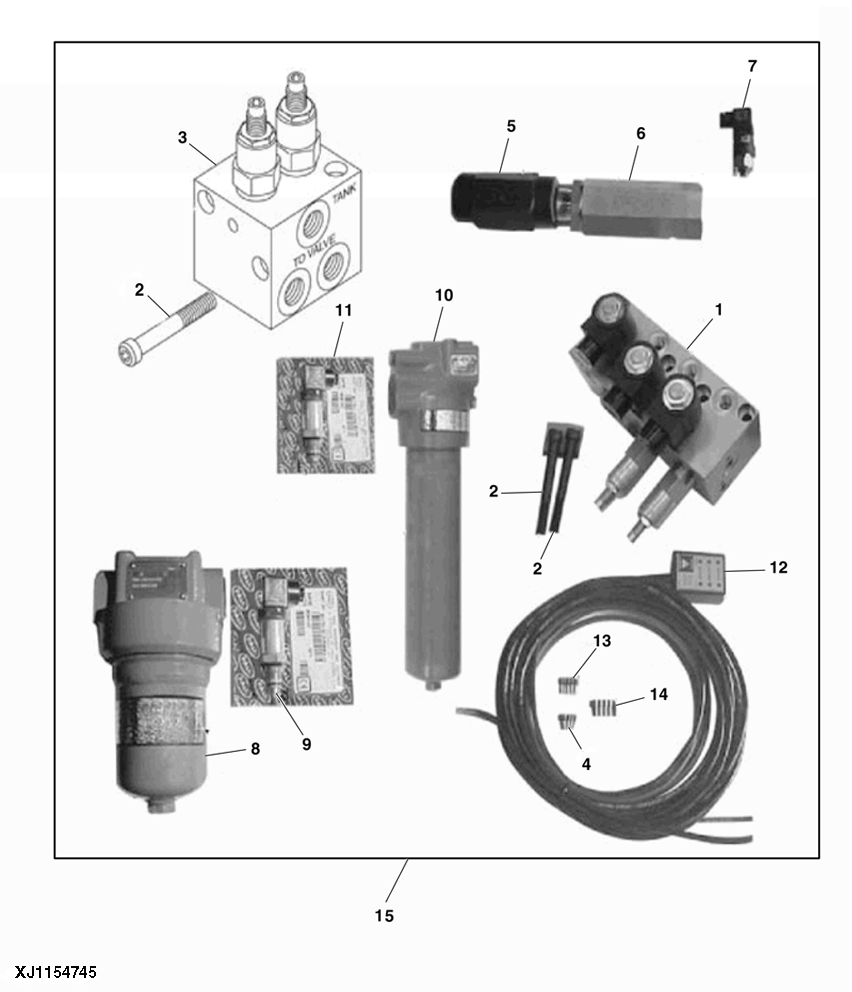

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA101944	1	Control Valve	Pilot Isolation Valve Block
2	WA100185	6	Bolt	3/8"x3 1/4" UNC Socket Head Cap Screw
3	WA100348	1	Control Valve	Rotator Control Valve Block
4	WA104812	20	Electrical Connector Assy	2.5 mm Insulated Crimp Pin
5	WA102323	1	Check Valve	1 1/2" BSPP
6	WA100904	1	Strainer	1 1/4" BSPP, Gritstop Filter
7	WA101092	1	Switch	Gritstop Pressure Switch
8	WA102618	1	Oil Filter	Case Drain Filter Assembly
8	WA100573	1	Filter Element	Case Drain Filter
8	WA101228	1	Seal Kit	Case Drain Filter Seal Kit
9	WA106588	1	Sensor	Case Drain Filter Sensor
10	WA103106	1	Filter Element	High Pressure Filter
10	WA101570	1	Oil Filter	1 1/2" Code 62 , Pressure Filter Assembly
11	WA100453	1	Indicator	High Pressure Filter Sensor
12	WA101341	1	Indicator Lamp	Filter Status Indicator
13	WA101542	20	Electrical Connector Assy	1 mm Insulated Crimp Pin
14	WA101672	20	Elec. Connector Terminal	0.75 mm Insulated Crimp Pin
15	WA100044	4	Washer	1/2”, Hardened Washer
15	WA111263	1	Solenoid Hydraulic Valve	-
15	WA105349	1	Plate	Mounting Bracket Kit
15	WA103107	4	Screw	-
15	WA103098	4	Bolt	-
15	WA102993	2	Block Clamp	Clamp tube 10.9 mm
15	WA102625	2	Bolt	1/2 x 2” Grade 8 UNC
15	WA102525	4	Washer	5/6”, Hardened Washer
15	WA101922	1	Elec. Connector Terminal	Boom Junction Strip Terminal
15	WA101910	1	Flange Fitting	-
15	WA101488	2	Seal	1 1/4” Seal
15	WA101278	2	Bolt	-
15	WA101140	1	Sealing Washer	1/4” BSP Dowty Washer
15	WA101135	1	Fitting	1/4” BSPF, Test Point
15	WA100565	4	Sealing Washer	1 1/4” Dowty Washer
15	WA100162	1	Seal	1 1/2” SAE Seal
15	WA105262	1	Maintenance Kit	-

Hydraulic Installation Kit, Standard

Нет текстового описания
