Hydraulic installation kit, South America

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

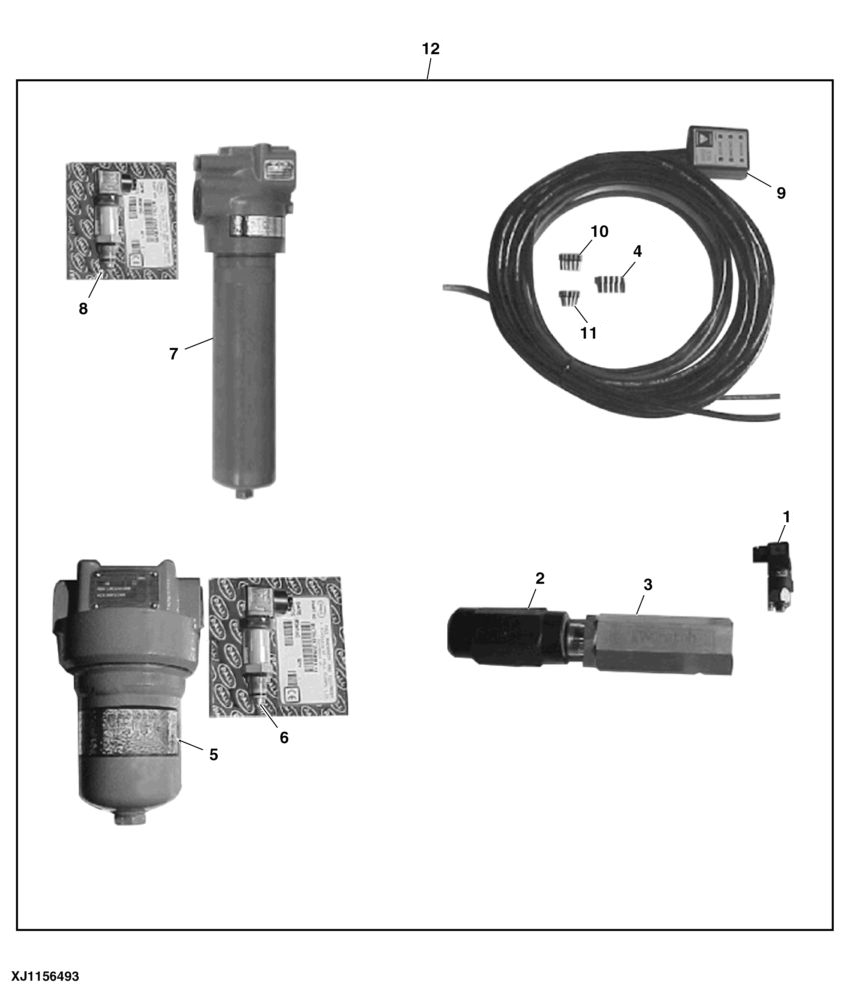

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	WA101092	1	Switch	Gritstop Pressure Switch
2	WA102323	1	Check Valve	1 1/2" BSPP
3	WA100904	1	Strainer	1 1/4" BSPP, Gritstop Filter
4	WA101672	20	Elec. Connector Terminal	0.75 mm Insulated Crimp Pin
5	WA102618	1	Oil Filter	Case Drain Filter Assembly
5	WA100573	1	Filter Element	Case Drain Filter
5	WA101228	1	Seal Kit	Case Drain Filter Seal Kit
6	WA106588	1	Sensor	Case Drain Filter Sensor
7	WA101570	1	Oil Filter	1 1/2" Code 62 , Pressure Filter Assembly
7	WA103106	1	Filter Element	High Pressure Filter
8	WA100453	1	Indicator	High Pressure Filter Sensor
9	WA101341	1	Indicator Lamp	-
10	WA101542	20	Electrical Connector Assy	1 mm Insulated Crimp Pin
11	WA104812	20	Electrical Connector Assy	2.5 mm Insulated Crimp
12	WA109562	1	Maintenance Kit	-
12	WA100162	1	Seal	-
12	WA100565	1	Sealing Washer	-
12	WA101488	2	Seal	-
12	WA101922	1	Elec. Connector Terminal	Boom Junction Strip Terminal
12	WA102993	2	Block Clamp	Clamp tube 10.9mm
12	WA104352	1	Circuit Box	-
12	WA104353	1	Circuit Box	-

Hydraulic installation kit, South America

Нет текстового описания
