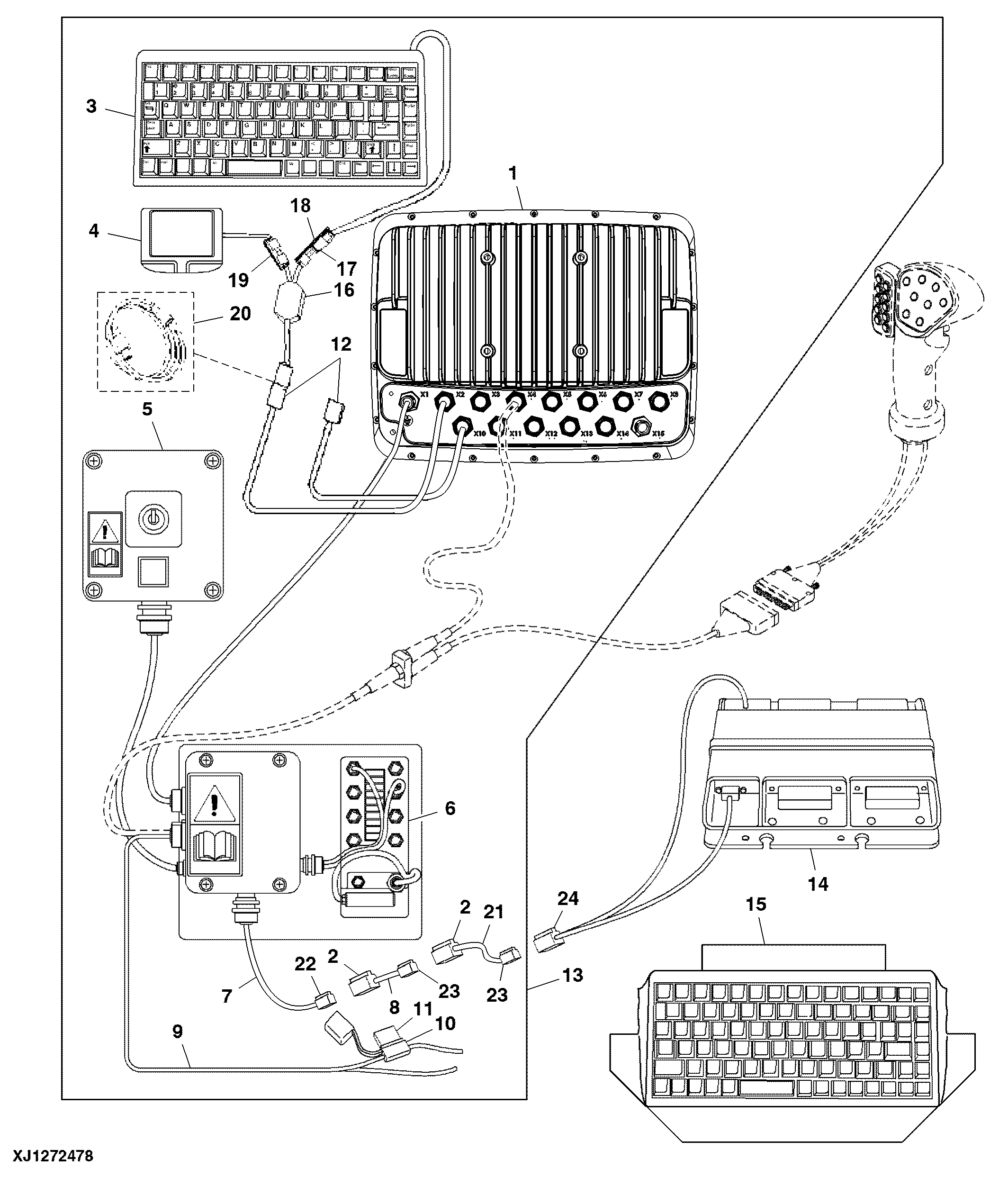

Electrical System – XM-PC (622C000043-246)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F070907	1	Software	-
1	F680264	1	Electronic Control Unit	XM-PC Monitor
1	WA125476	1	Storage Device	-
1	WA112591	1	Software	30H
1	F062297	1	Software	Dubuque Carrier
2	WA120831	2	Socket	Female Socket Pin; Gold Plated Socket Contact
2	WA101977	2	Pin	14-16 AWG 1.5 mmm, Socket Pin, Silver Plated
3	F064443	1	Computer Accessory	Keyboard, English (Default)
4	WA120118	1	Screen	Touch Pad
5	WA110345	1	Head Kit	Key Switch Assembly
6	WA110341	1	Box	TimberRite™ Base Controls (CrossFire Module and Terminal Box)
6	F066798	1	Module	CrossFire module
7	WA120558	1	Cable	Boom
7	F644790	1	Cable	-
8	WA120557	1	Cable	-
9	F644783	1	Cable	Assembly
9	WA100887	1	Cable	-
10	WA102205	1	Fuse Holder	-
11	WA104798	1	Fuse	15A
12	F070471	2	Wiring Harness	300 MM, USB
13	WA110507	1	Kit	Base Timberrite Kit With Suregrip Handles
14	F073211	1	Module	Head Module, 200, 400, 600 Series, VOAC Valve
14	F685709	1	Module	Head Module, 600 Series, Danfoss Valve
15	WA115673	1	Cover	Keyboard
16	F070760	1	Computer Hardware Item	Adaptor, USB to PS2
17	F074144	1	Computer Hardware Item	Converter, USB to PS2
18	WA120036	1	Electrical Equipment	Locking Device
19	WA115064	1	Elec.Connect Locking Device	Locking Device
20	F671441	1	Wiring Harness	USB Cable
21	WA120438	1	Electrical Surge Protector	-
22	WA102556	1	Plug	6 Pin
23	57M8264	2	Elec. Connector Terminal	Male Pin; Gold Plated 16-18
24	WA110692	1	Plug	Receptacle, 6 Pin
..	F070756	1	Computer Hardware Item	USB Drive
..	F684720	1	Antenna	ALSO ORDER <service-part>F070756</service-part> GPS Receiver
..	F070670	1	Position Receiver	ORDER <service-part>F684720</service-part> GPS Receiver
..	AT345165	1	Kit	Accessories
..	WA113143	2	Operator's Manual	30 Lite (Russian)
..	WA111432	2	Operator's Manual	30H (Spanish)
..	WA113142	2	Operator's Manual	30 Lite (French)
..	WA111294	2	Operator's Manual	30H (German)
..	WA111208	2	Operator's Manual	30H (Portuguese)
..	WA124311	2	Operator's Manual	30 Lite (English)
..	WA110735	2	Operator's Manual	30H (English)
