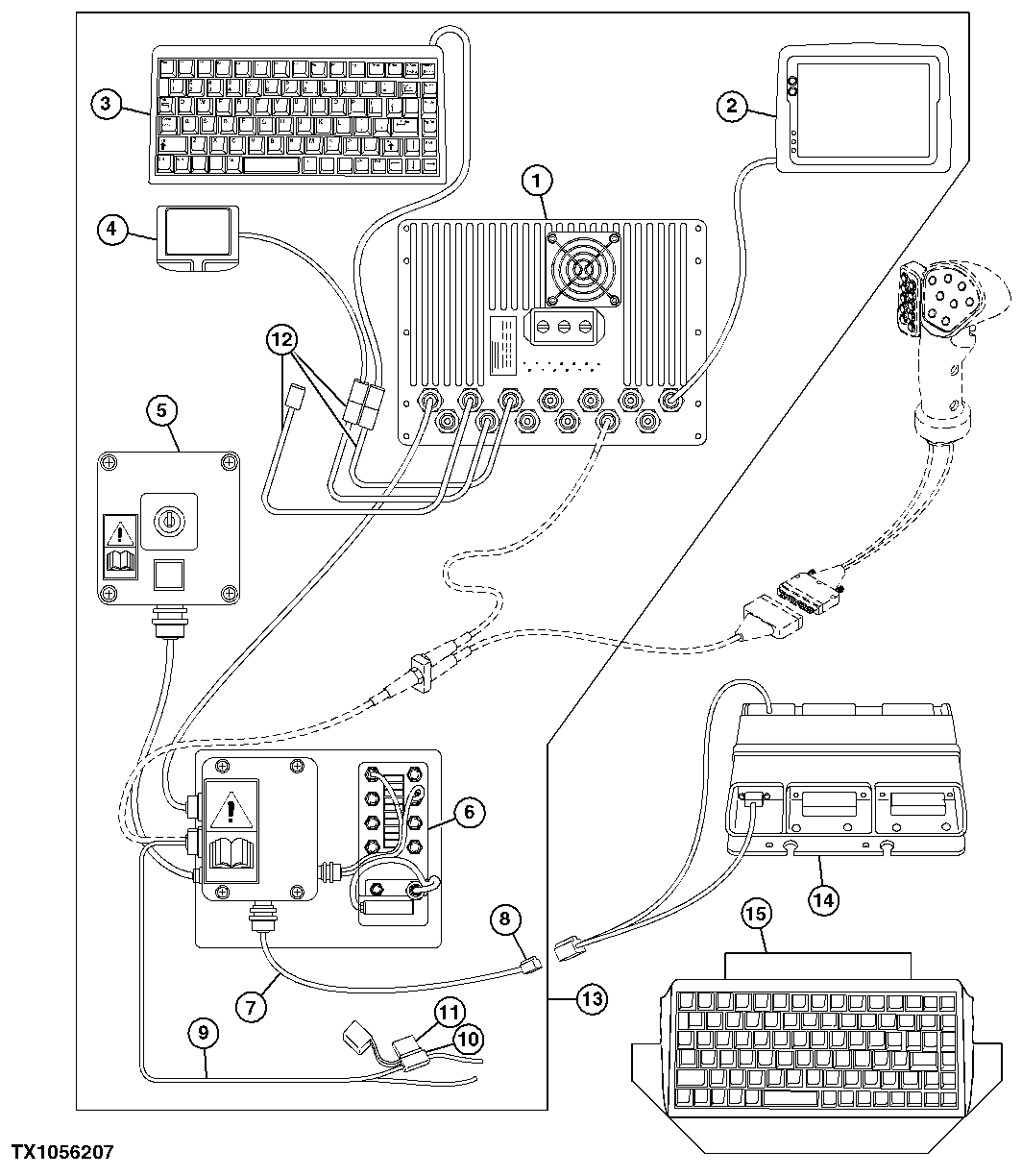

ELECTRICAL SYSTEM (616C000054, 618C000008, 622B001330, 623C000043, 624C000121, 626000174)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F070907	1	Software	-
1	F070191	1	Microcomputer	PC Module
1	F072780	1	Lithium Battery	-
1	F062297	1	Software	Dubuque Carrier
1	WA112591	1	Software	30H
2	F070193	1	Monitor	-
3	F064443	1	Computer Accessory	Keyboard, English (Default)
4	WA120118	1	Screen	Touch Pad
5	WA110345	1	Head Kit	Key Switch Assembly
6	WA110341	1	Box	TimberRite™ Base Controls (CrossFire Module and Terminal Box)
6	F066798	1	Module	CrossFire module
7	WA102551	1	Cable	25 m, Boom
7	F644790	1	Cable	-
8	WA102556	1	Plug	6 Pin
9	F644783	1	Cable	Assembly
9	WA100887	1	Cable	-
10	WA102205	1	Fuse Holder	-
11	WA104798	1	Fuse	15 A
12	F070471	2	Wiring Harness	300 mm, USB
13	WA110507	1	Kit	Base Timberrite Kit With Suregrip Handles
14	F073212	1	Module	Head Module, 600 Series, Danfoss Valve
14	F073211	1	Module	Head Module, 200, 400, 600 Series, VOAC Valve
15	WA115673	1	Cover	Keyboard
..	WA110735	2	Operator's Manual	30H (English)
..	F072600	2	Operator's Manual	30 Lite (English)
..	WA111208	2	Operator's Manual	30H (Portuguese)
..	WA111294	2	Operator's Manual	30H (German)
..	WA113142	2	Operator's Manual	30 Lite (French)
..	WA111432	2	Operator's Manual	30H (Spanish)
..	WA113143	2	Operator's Manual	30 Lite (Russian)
..	AT345165	1	Kit	Accessories
..	F070670	1	Position Receiver	ORDER <service-part>F684720</service-part> GPS Receiver
..	F684720	1	Antenna	ALSO ORDER <service-part>F070756</service-part> GPS Receiver
..	F070756	1	Computer Hardware Item	USB Drive
