Открытый узел

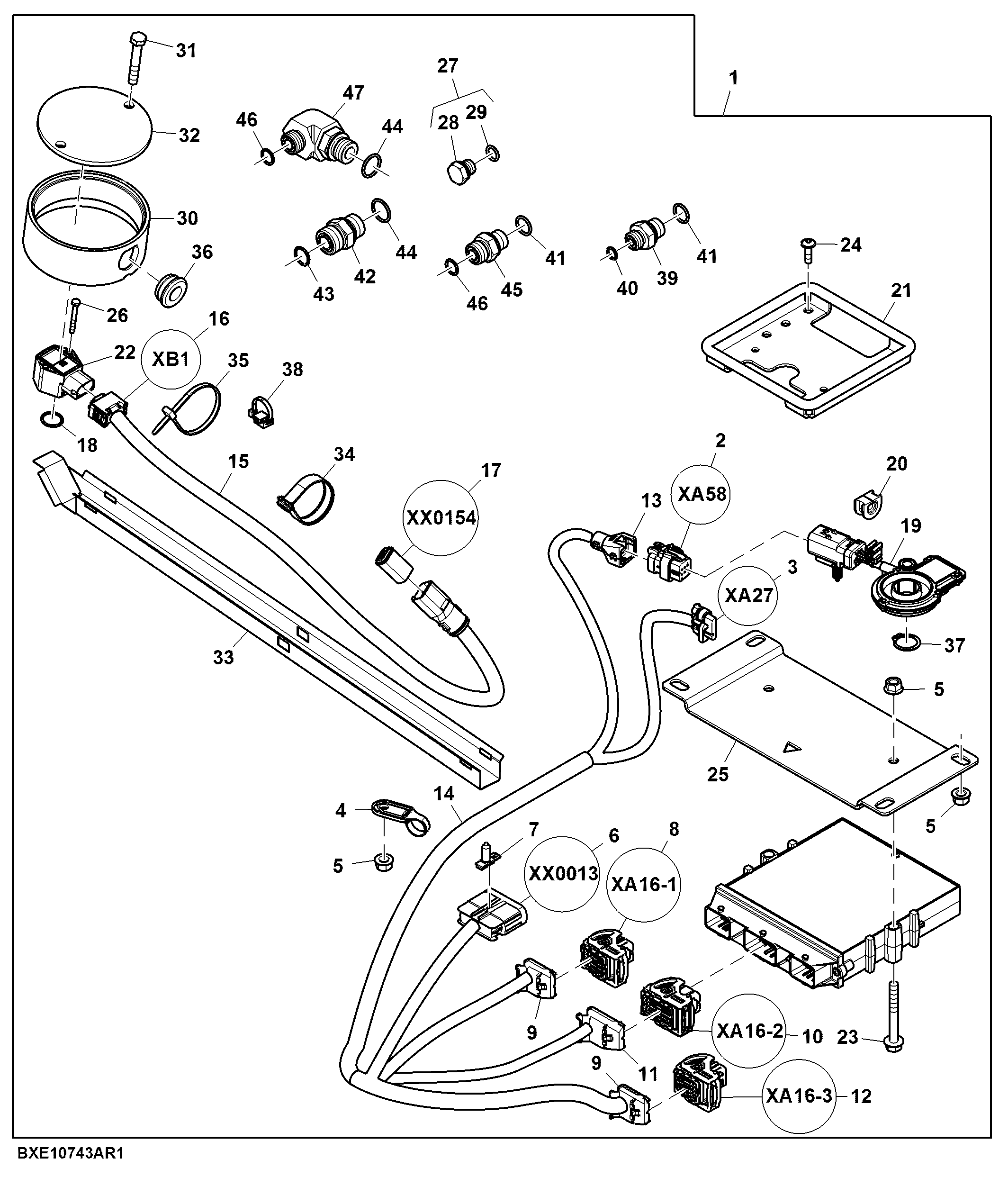

AutoTrac™ Wiring Harness, Steering System, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXE10743	1	Steering System	-
2	57M9786	1	Elec. Connector Housing	ORDER W/ (6) 57M9808, 57M9841
3	57M7840	1	Elec. Connector Housing	ORDER W/ (4) 57M7494, (4) 57M9214 AND 57M7469
4	57M10528	3	Elec. Connector Accessory	-
5	H137328	2	Lock Nut	-
6	57M8281	1	Elec. Connector Housing	ORDER W/ (8) 57M10794, 57M11366, 57M8307, 57M8309, (8) 57M9223, (2) 57M8321, (2) 57M8329, (2) 57M9446, 57M8301, (2) 57M8323, 57M11996 AND 57M8910
7	57M8910	1	Clip	-
8	57M10605	1	Elec. Connector Housing	ORDER W/ (4) 57M10590, (20) 57M10333, (8) 57M10334 AND 57M10604
9	57M10604	2	Elec. Connector Housing	-
10	57M10614	1	Elec. Connector Housing	ORDER W/ (4) 57M10590, (19) 57M10333, 57M10617, (3) 57M10331, (4) 57M10334 AND 57M10613
11	57M10613	1	Elec. Connector Housing	-
12	57M10611	1	Elec. Connector Housing	ORDER W/ (7) 57M10590, (17) 57M10333, 57M10604, (3) 57M10331 AND (5) 57M10334
13	57M9841	1	Elec. Connector Accessory	-
14	AXE42358	1	Wiring Harness	-
15	AXE42896	1	Wiring Harness	-
16	57M7953	1	Electrical Connector Assy	ORDER W/ (6) 57M7954, (6) 57M7955
17	57M10530	1	Elec. Connector Housing	ORDER W/ (4) 57M8165, 57M10475 AND 57M8016
18	P50883	1	Ring	-
19	AL206976	1	Sensor	-
20	L204098	1	Grommet	-
21	PF81190	1	Bracket Kit	-
22	AL175214	1	Sensor	-
23	19M7802	2	Screw	M8 X 65
24	19M8649	4	Screw	M6 X 20
25	HXE11074	1	Plate	-
26	19M10375	2	Cap Screw	M4 X 35
27	RE46684	1	Fitting Plug	-
28	R107768	1	Drain Plug	-
29	51M7041	1	O-Ring	11.300 X 2.200 mm
30	HXE75490	1	Cover	-
31	19M7269	2	Cap Screw	M8 X 50
32	HXE75523	1	Cover	-
33	HXE89106	1	Shield	-
34	H224073	4	Tie Band	-
35	R44302	2	Tie Band	-
36	R66626	1	Grommet	-
37	HXE18798	1	Snap Ring	-
38	57M11237	1	Clip Kit	-
39	38H5012	1	Adapter Fitting	-
40	T77613	1	O-Ring	-
41	51M7043	2	O-Ring	15.300 X 2.200 mm
42	38H5004	1	Adapter Fitting	-
43	T77932	1	O-Ring	-
44	51M7045	2	O-Ring	19.300 X 2.200 mm
45	38H5003	1	Adapter Fitting	-
46	T77857	2	O-Ring	-
47	38H5027	1	Elbow Fitting	-

AutoTrac™ Wiring Harness, Steering System, Attachment

Нет текстового описания
