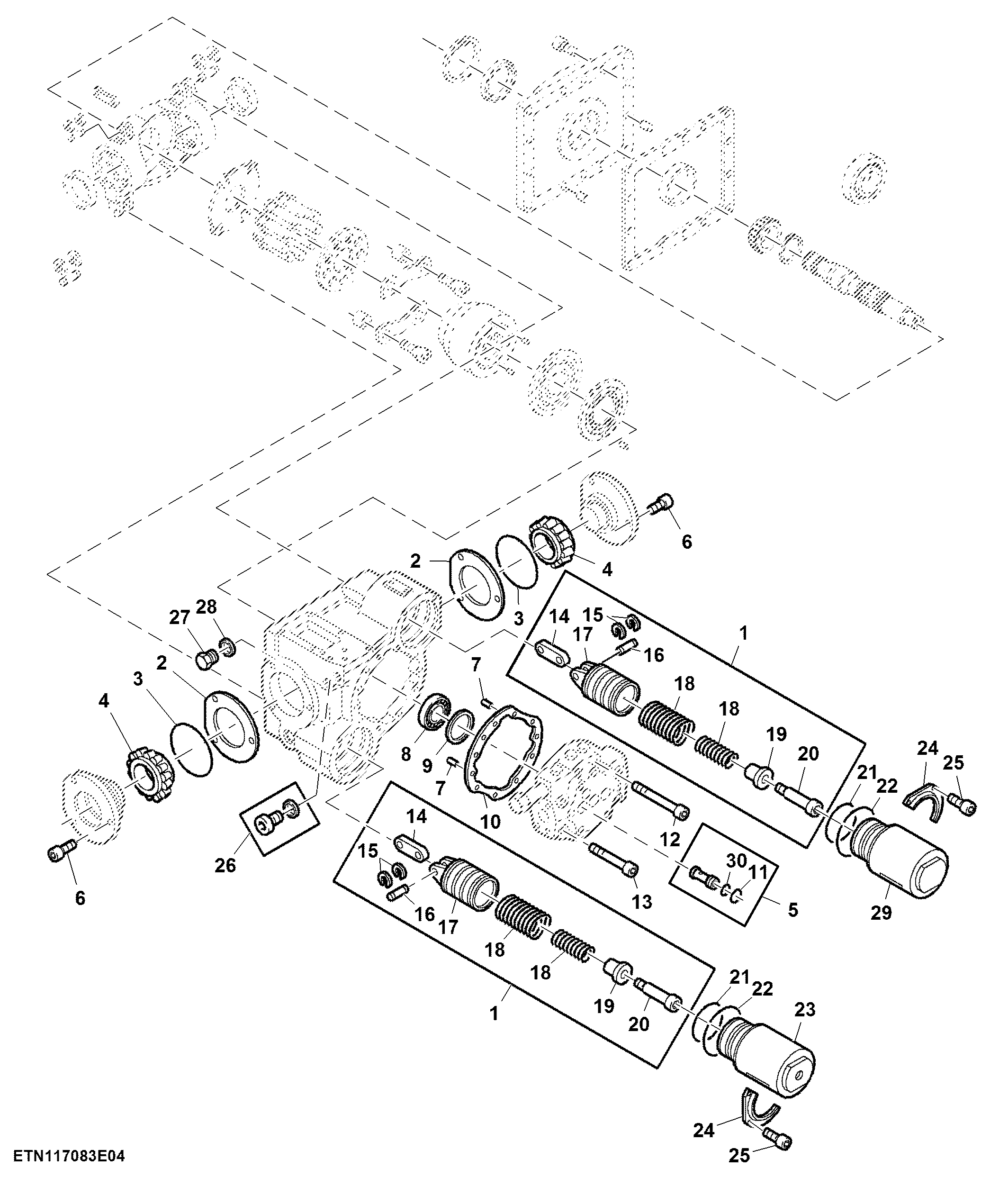

Hydraulic Pump Components for Push Button Shift Transmission, Final Tier 4, HillMaster™ (2 of 3)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH112675	2	Piston	-
2	AH112680	2	Shim	Includes 6 Shims of Thickness 0.002" And 4 Shims each of Thickness 0.005", 0.010", 0.015" And 0.025"
3	M4237T	4	O-Ring	-
4	JD9076	2	Bearing Cone	-
5	AN122502	2	Check Valve	-
6	19H3556	6	Cap Screw	1" X 4-1/4"
7	H63271	1	Pin	-
8	AH65358	1	Bearing	-
9	AH112678	1	Shim	Includes 6 Shims of Thickness 0.003", 0.005", 0.010", 0.015", 0.020" And 0.030"
10	H214563	1	Gasket	-
11	W23690	2	Back-Up Ring	-
12	19H2347	6	Cap Screw	7/16" X 3"
13	19H1899	2	Cap Screw	7/16" X 2"
14	N126600	2	Link	-
15	-	4	Part 15	ORDER AN274375
16	-	2	Part 16	ORDER AN274375
17	-	2	Part 17	ORDER AH112675
18	-	2	Part 18	ORDER AH112675
19	-	1	Part 19	ORDER AH112675
20	-	1	Part 20	ORDER AH112675
21	R152879	2	O-Ring	-
22	P48403	2	O-Ring	-
23	AZ42198	1	Sleeve	INCLUDES R26906, R51031
24	H115052	2	Retainer	-
25	19H3176	6	Screw	0.164" X 0.380"
26	AN122518	1	Fitting Plug	INCLUDES R28782
27	R51031	1	Fitting	-
28	R28782	1	O-Ring	-
29	AH112668	1	Sleeve	-
30	32246	2	O-Ring	-
30	AN274375	2	Pin Fastener	-

Hydraulic Pump Components for Push Button Shift Transmission, Final Tier 4, HillMaster™ (2 of 3)
