Открытый узел

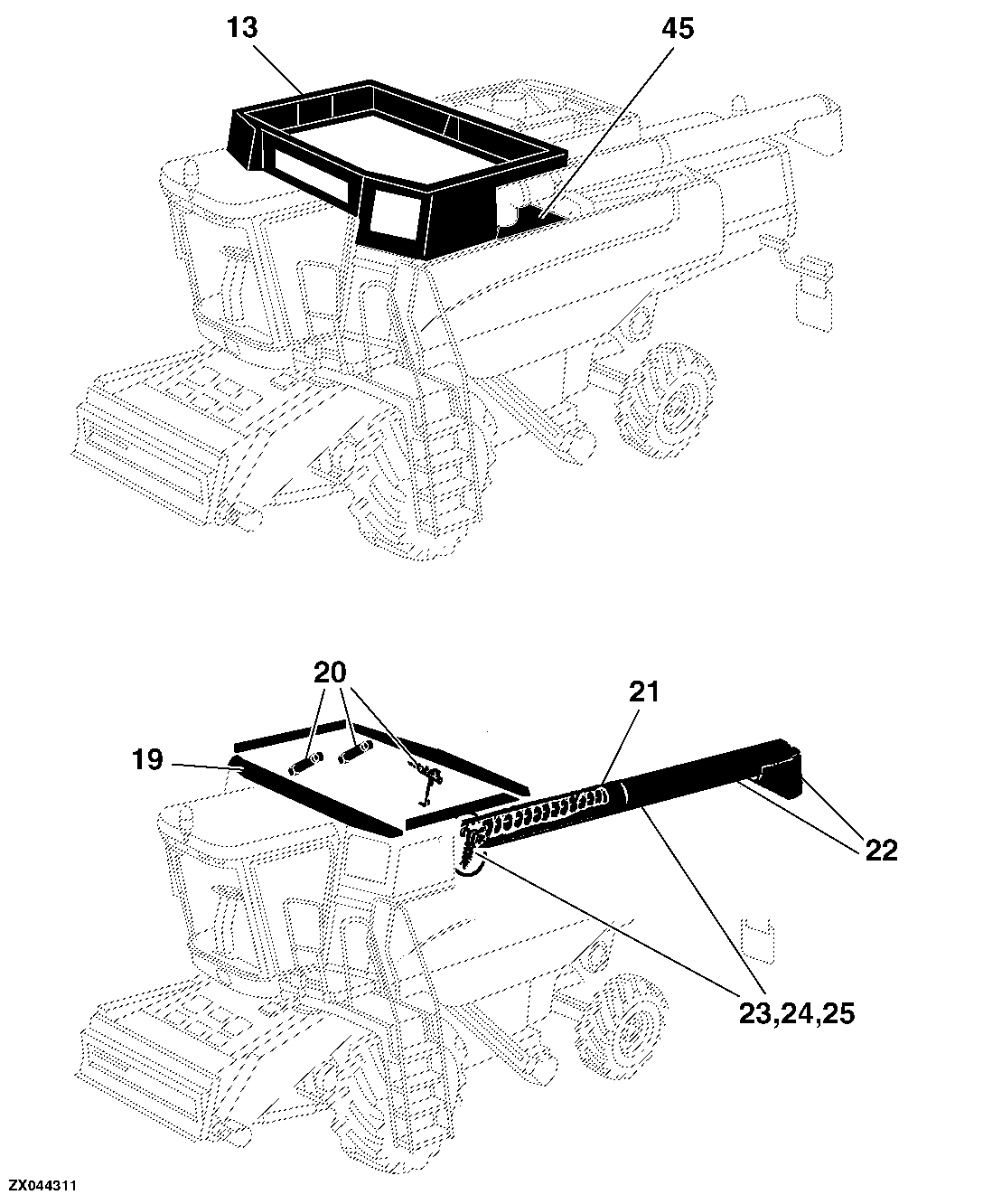

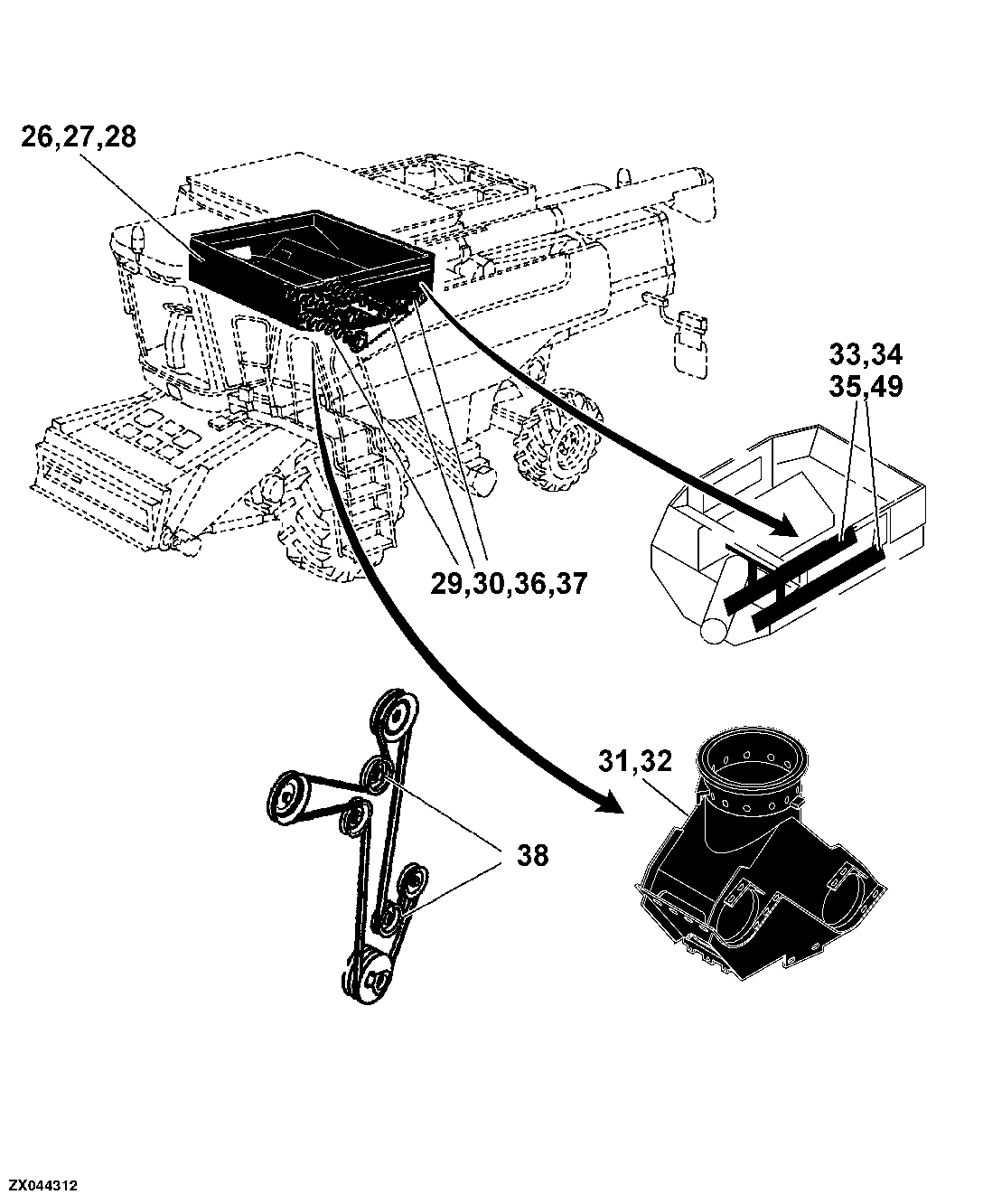

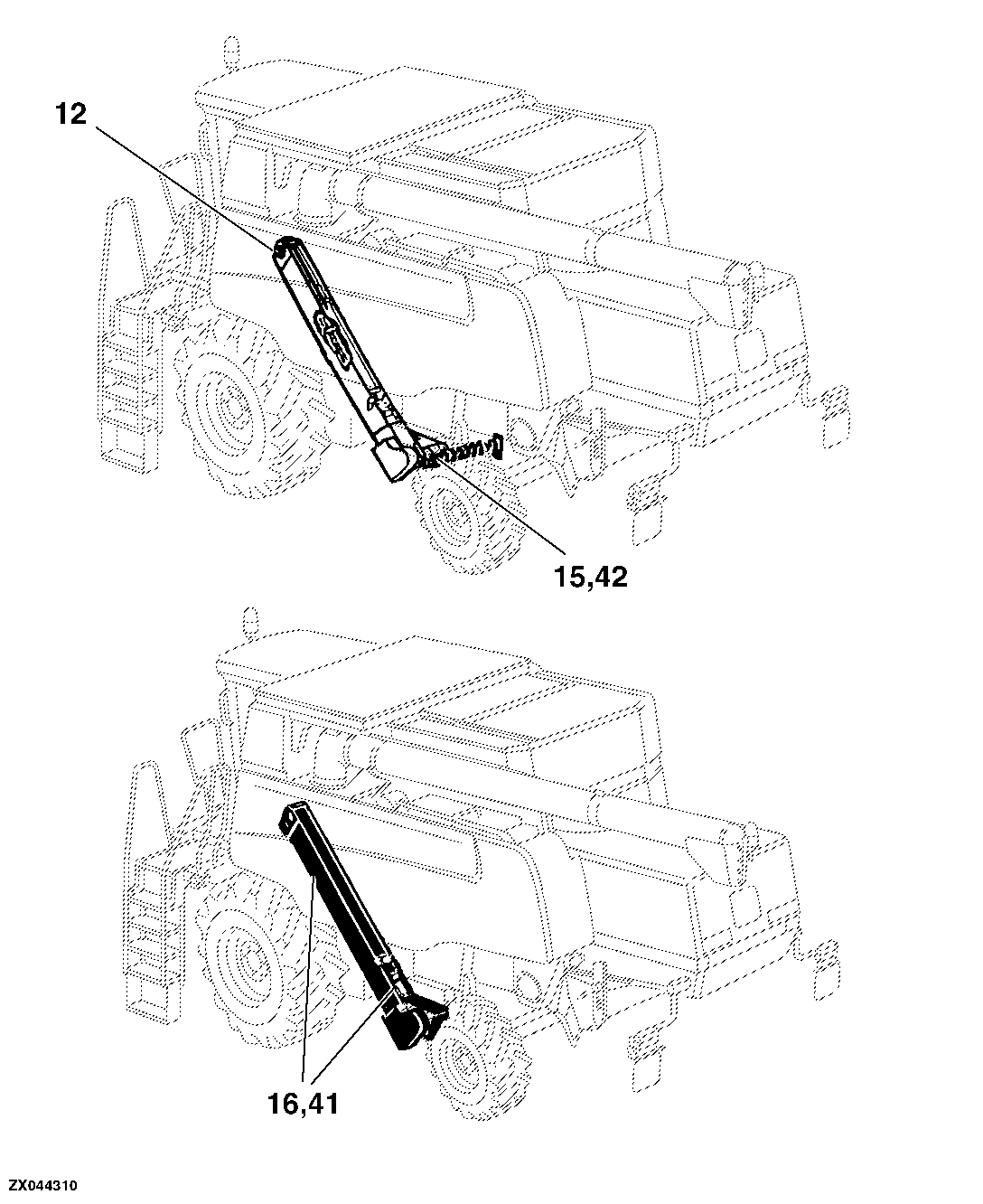

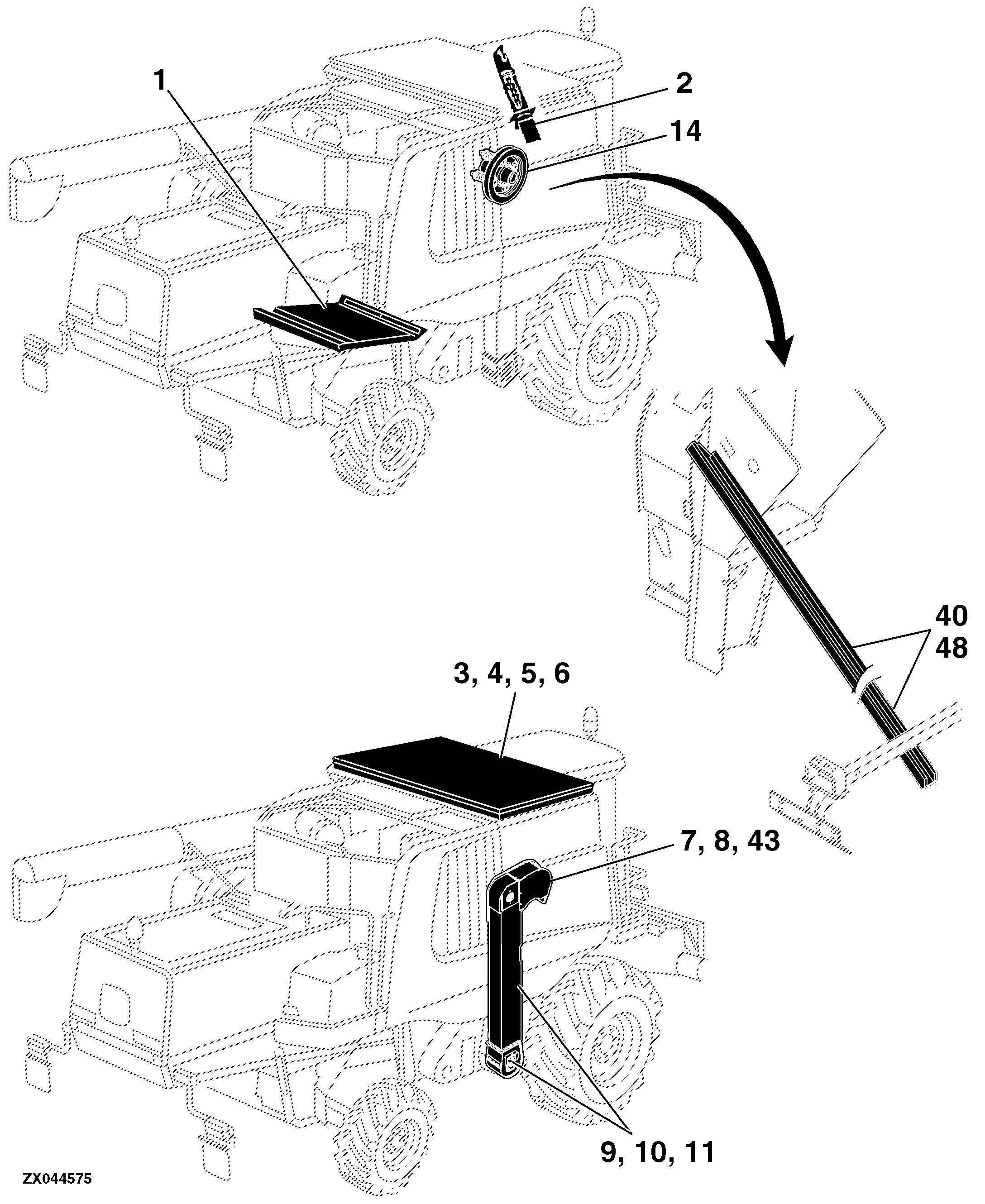

130 Elevators, Grain Tank, Unloading Auger Combine W660

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	TAILINGS ELEVATOR HOUSING AND SUPPORTS	-
-	-	1	Horizontal Unloading Auger Housing, 17 and 20 ft	-
-	-	1	HORIZONTAL UNLOADING AUGER SWIVEL	-
-	-	1	HORIZONTAL UNLOADING AUGER, HUB CARRIER	-
-	-	1	LOWER CLEAN GRAIN ELEVATOR AND CONVEYOR CHAIN	-
-	-	1	LOWER TAILINGS AUGER DRIVE TIGHTENER	-
-	-	1	LOWER TAILINGS AUGER TROUGH	-
-	-	1	LOWER TAILINGS AUGER, SHAFT AND TIGHTENER	-
-	-	1	MOTOR WITH SUPPORT FOR GRAIN TANK COVER, 8000 LITERS	-
-	-	1	MOUNTING PARTS FOR ELEVATOR HOUSING FOR GRASS SEED HARVESTING	-
-	-	1	SLIP CLUTCH CLEAN GRAIN ELEVATOR	-
-	-	1	HORIZONTAL UNLOADING AUGER DRIVE GEAR CASE	-
-	-	1	UNLOADING AUGER COUNTERSHAFT DRIVE	-
-	-	1	UNLOADING AUGER DRIVE BELT GUIDE	-
-	-	1	UNLOADING AUGER SEAL	-
-	-	1	UPPER CLEAN GRAIN ELEVATOR SHAFT, SPROCKET AND SHEAVE	-
-	-	1	UPPER CLEAN GRAIN LOADING AUGER HOUSING	-
-	-	1	UPPER TAILINGS AUGER HOUSING AND PADDLE ASSEMBLY	-
-	-	1	UPPER TAILINGS AUGER, DRIVE AND SHIELD	-
-	-	1	UPPER TAILINGS DRIVE CHAIN TIGHTENER	-
-	-	1	VERTICAL AUGER LOWER GEAR CASE	-
-	-	1	VERTICAL UNLOADING AUGER AND CHARGE HOUSING	-
-	-	1	GRAIN TANK BASE AND ATTACHMENTS	-
-	-	1	Chain, Sprockets and Bearings For Tailings Elevator	-
-	-	1	CLEAN GRAIN ELEVATOR DRIVE TIGHTENER AND IDLER	-
-	-	1	Clean Grain Elevator Gear Case And Sheave	-
-	-	1	Clean Grain Loading Auger	-
-	-	1	CLEAN GRAIN LOWER AUGER AND HINGED DOOR	-
-	-	1	CROSS AUGER BEARING PLATE - L.H.	-
-	-	1	CROSS AUGER COVERS AND CHANNEL	-
-	-	1	GAS-FILLED SPRING FOR GRAIN TANK COVER 8000 LITERS	-
-	-	1	GRAIN CHUTE	-
-	-	1	GRAIN TANK ACCESS LADDER	-
-	-	1	ADJUSTABLE CROSS AUGER COVERS	-
-	-	1	GRAIN TANK BASE AND CURTAINS	-
-	-	1	Grain Tank Cover - Support	-
-	-	1	GRAIN TANK COVER 11000 L	-
-	-	1	GRAIN TANK COVER 8000 LITERS	-
-	-	1	GRAIN TANK COVER MOUNTING PARTS, 8000 LITERS	-
-	-	1	GRAIN TANK CROSS AUGERS	-
-	-	1	GRAIN TANK TOP	-
-	-	1	GRAIN TANK, SUPPORT AND BRACES	-
-	-	1	HORIZONTAL UNLOADING AUGER (17 FT AND 20 FT)	-

130 Elevators, Grain Tank, Unloading Auger Combine W660

Нет текстового описания
